Ultra High Definition & Clarity
Immerse yourself in the details with our 4K UHD magnificent picture clarity that is four times the resolution of regular HD.
No Ventilation Needed
The ad notam screen requires no ventilation due to low voltage operation and external positioning of the power adaptor.
Low Voltage Safety Product
ad notam screens are low voltage products (DC 24V) and therfore safe for operation in special environments. All of our displays are equipped with external power supply. This facilitates service & regulates heat sync.
Performant High Brightness
Our high brightness technology allows the image to shine through the mirror without picture degradation as known from other Mirror TVs and with minimal glare. Our superb quality displays provide our customers with crisp, legible content delivery in various ambient lighting conditions.
Mirror Options
Unlike other smart mirrors, all our products come with a Real Color Index. The authenticity of colors is not distorted. This applies for both: how you see yourself in the mirror and what you watch inside the display.

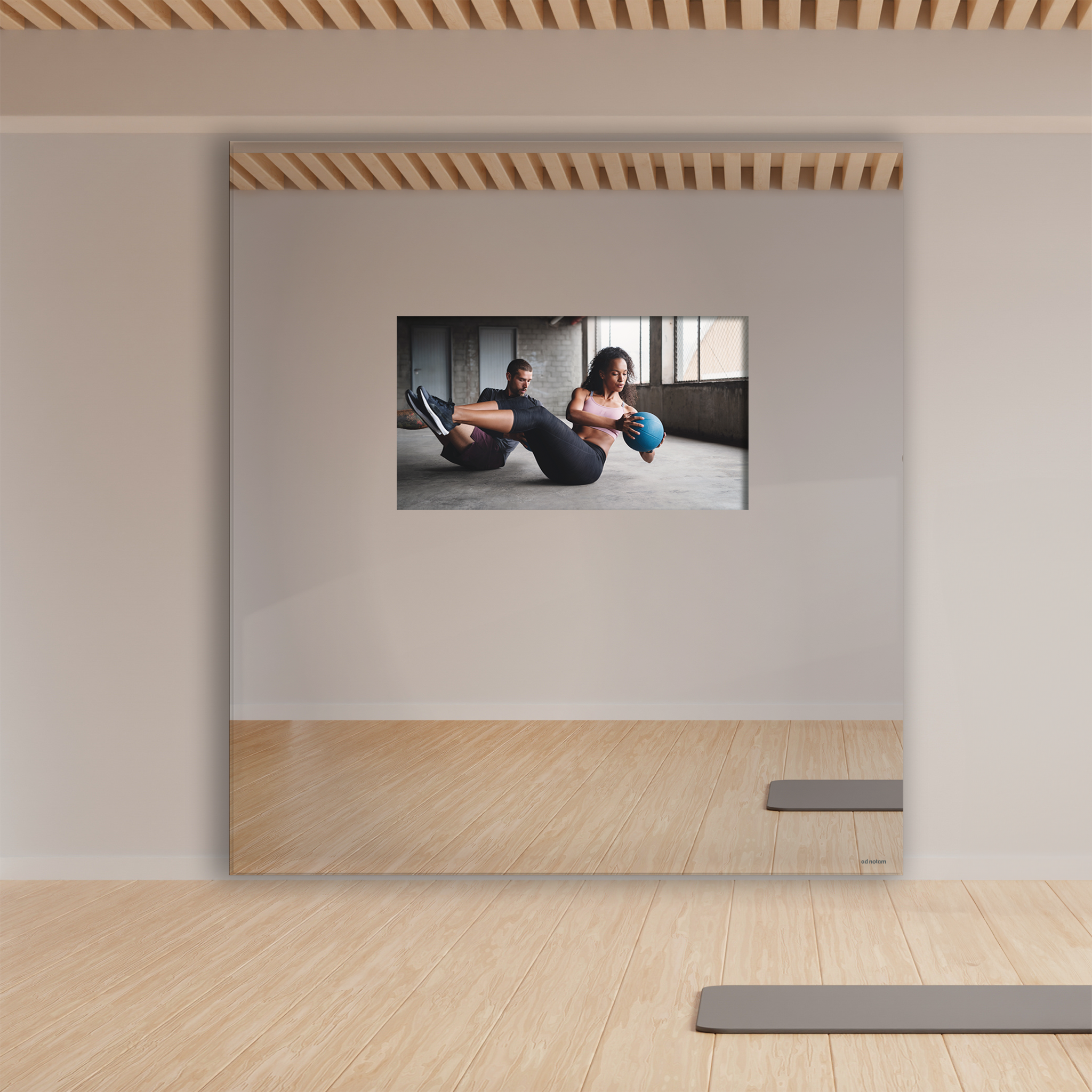

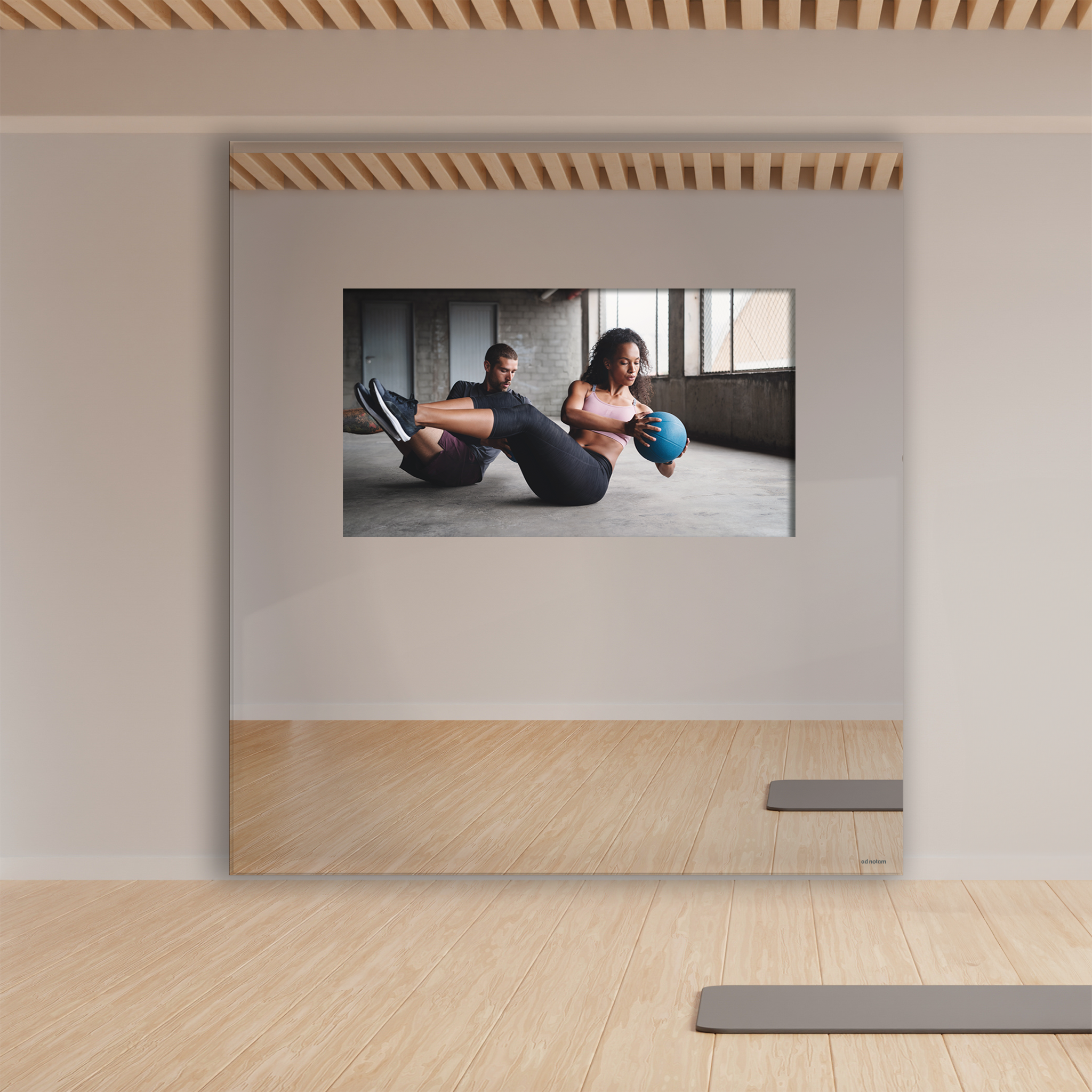

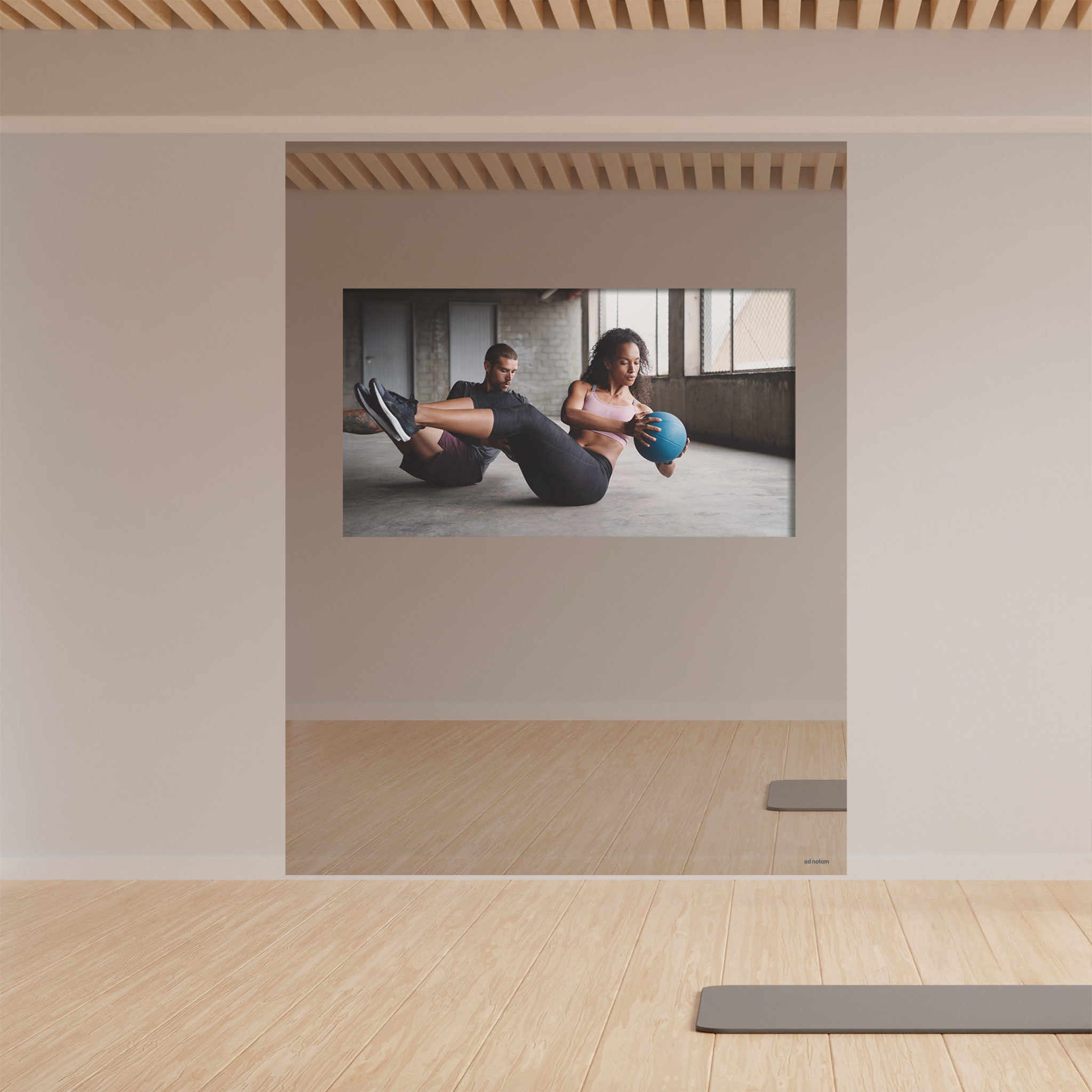

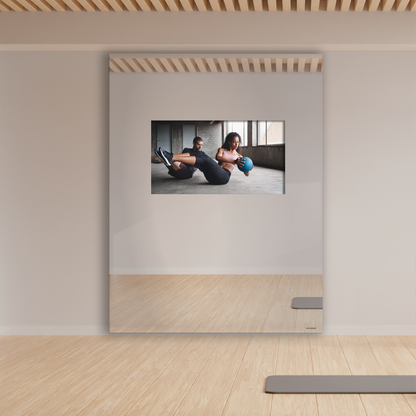

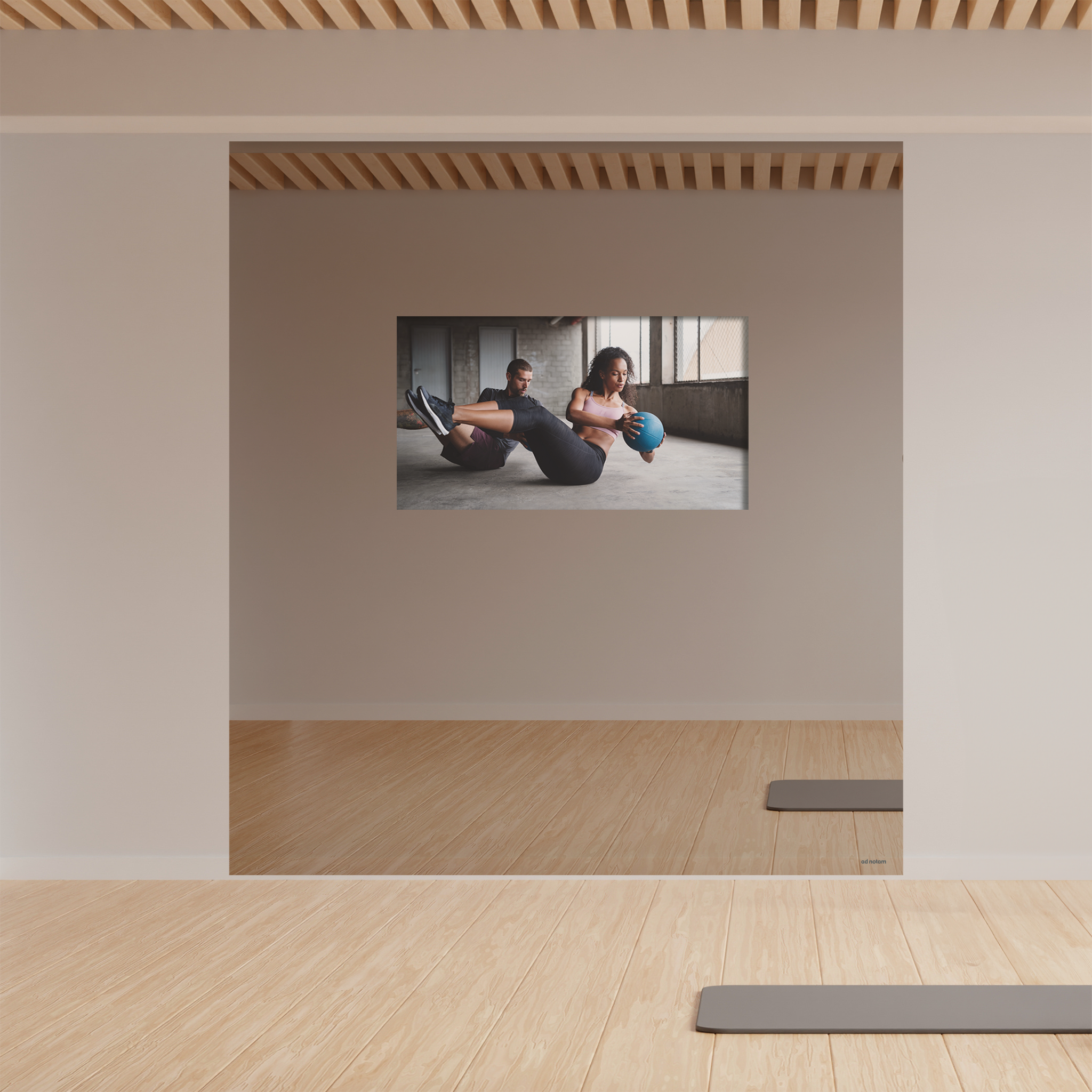

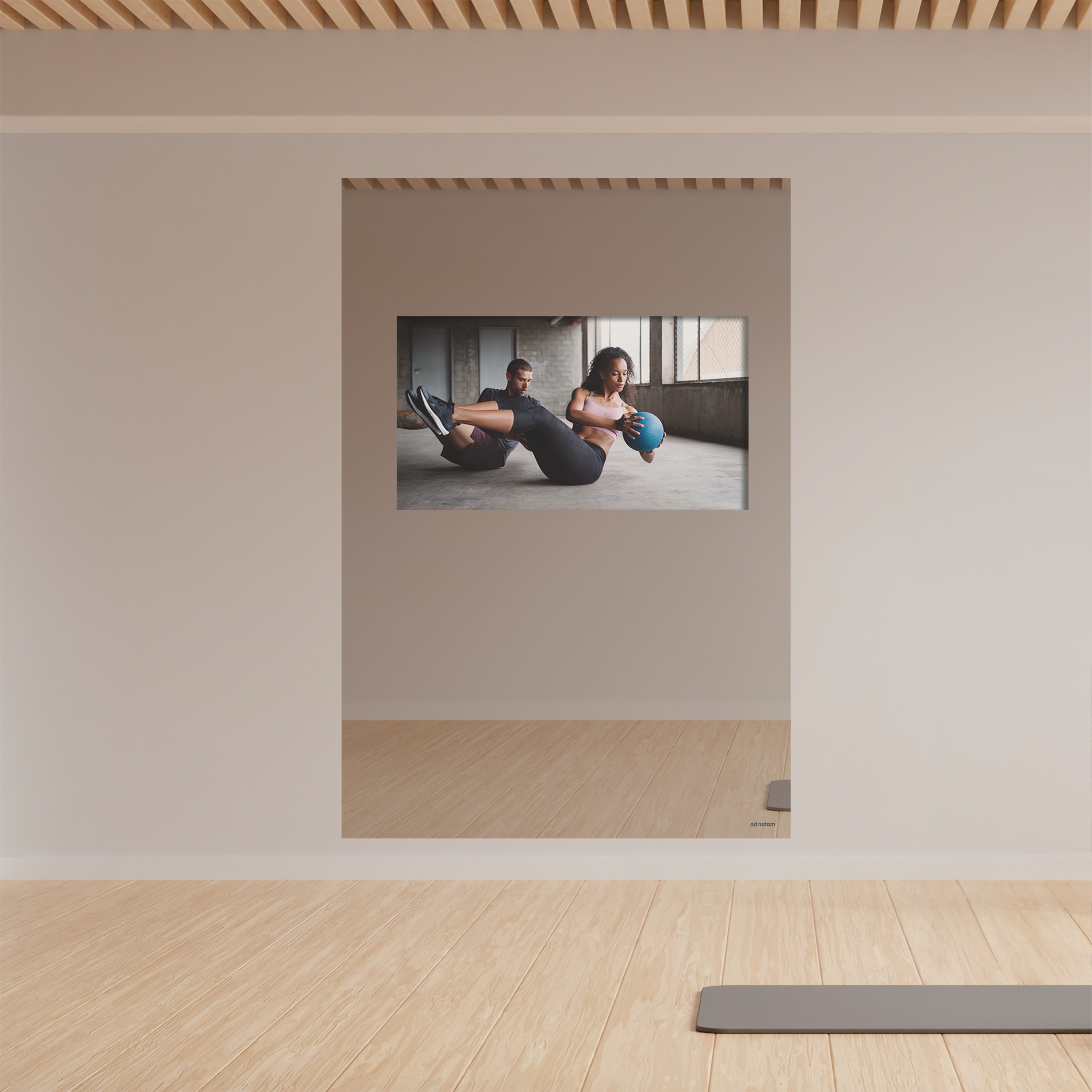

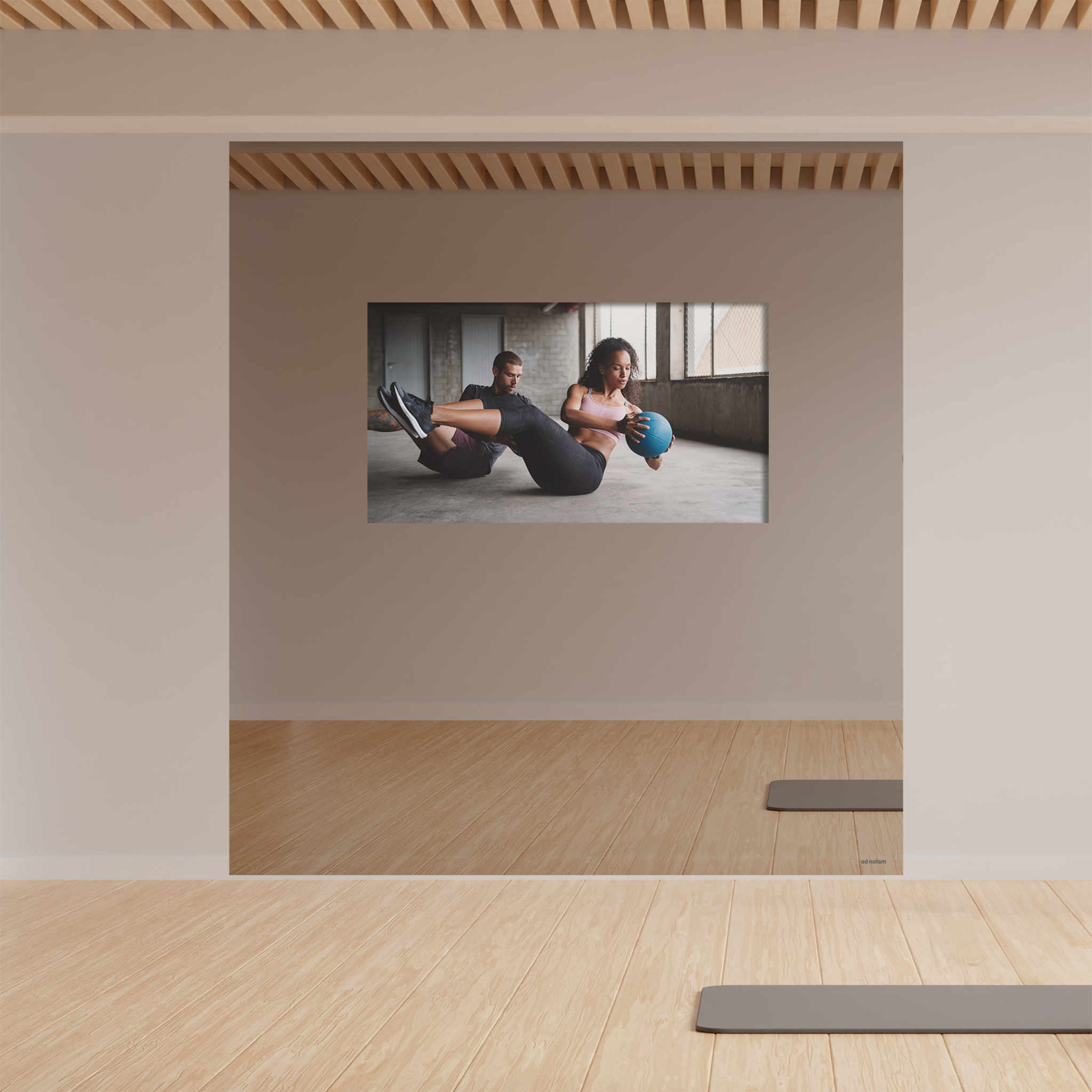

Switched On
Crystal Mirror
NOT INVISIBLE, BUT BEST PICTURE AND MIRROR QUALITY.

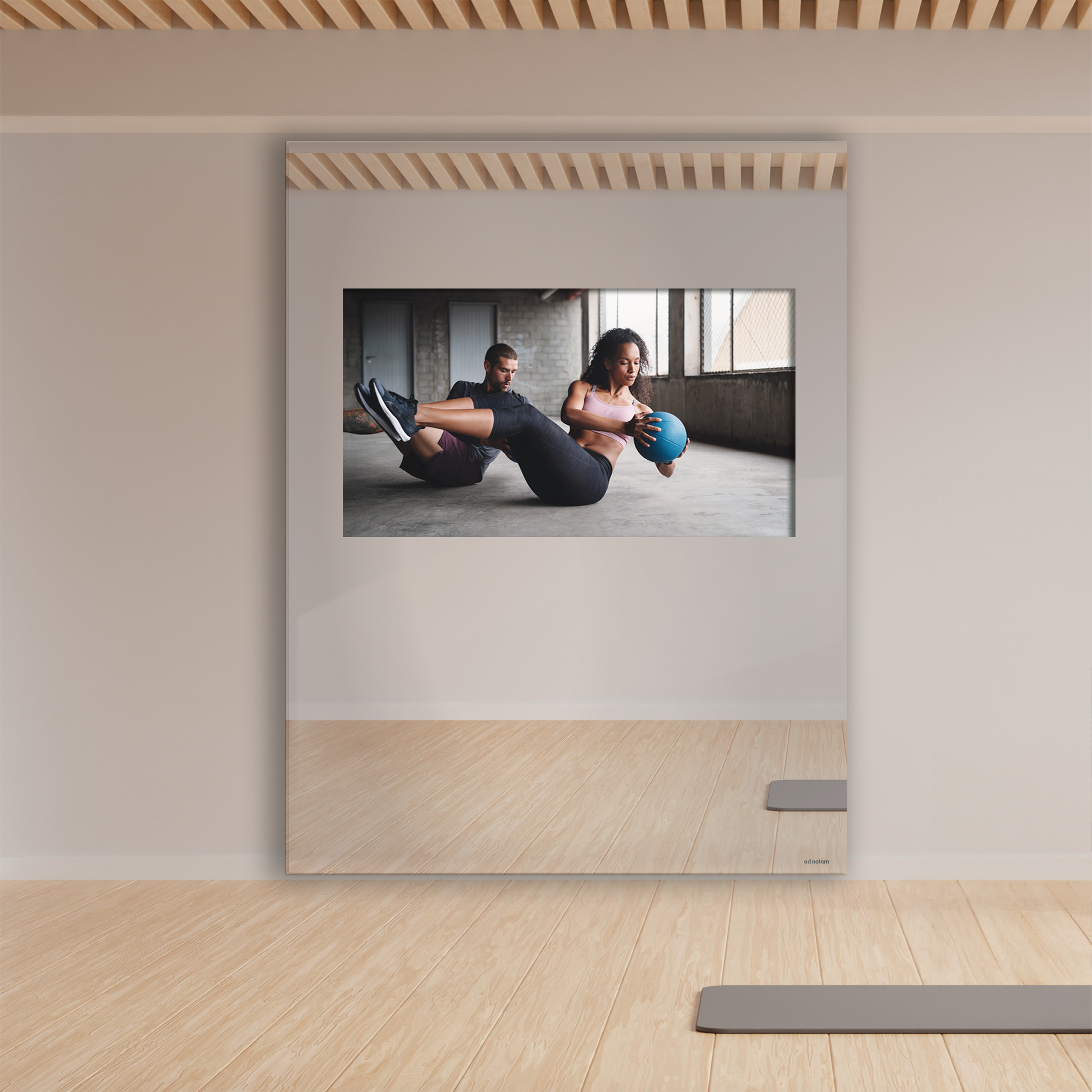

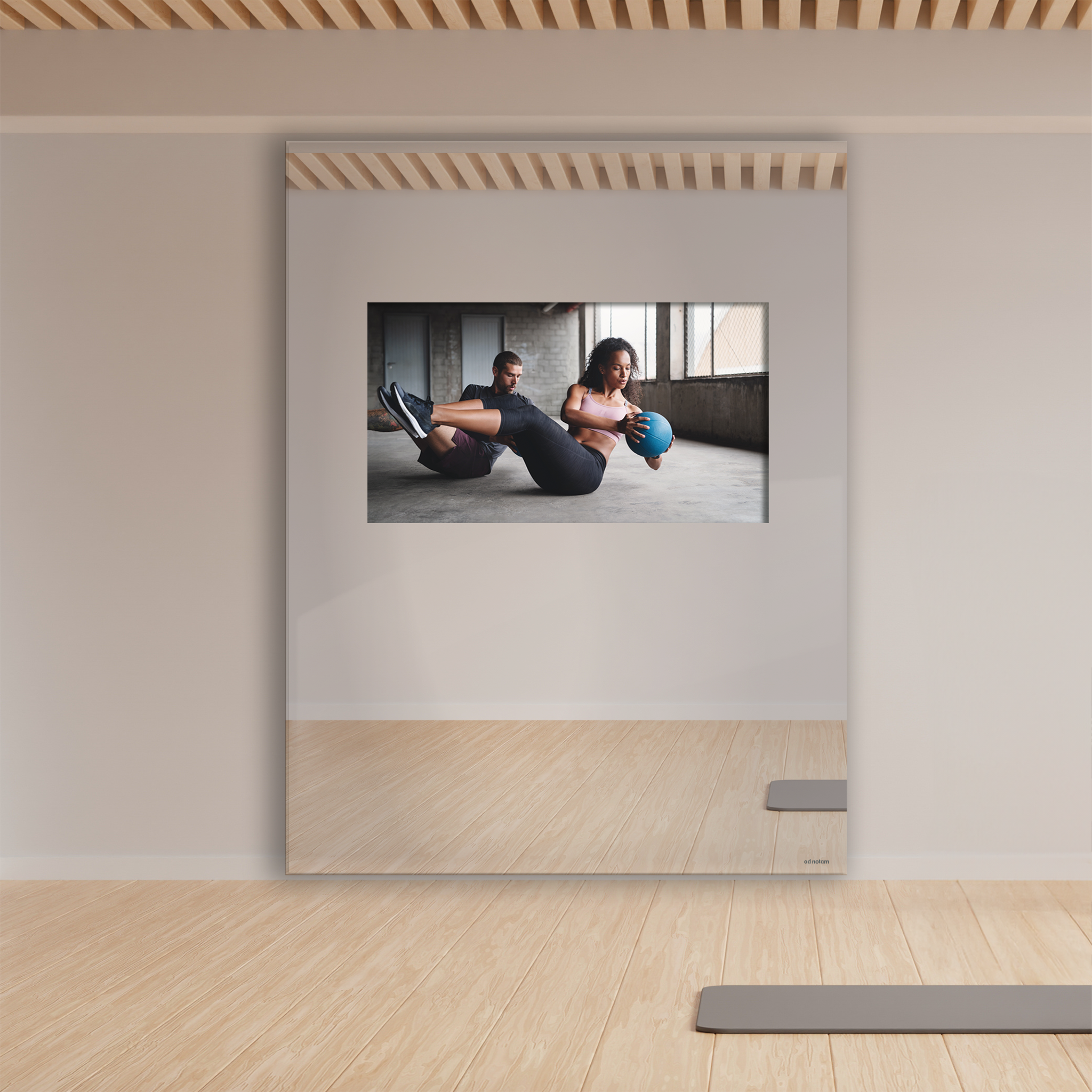

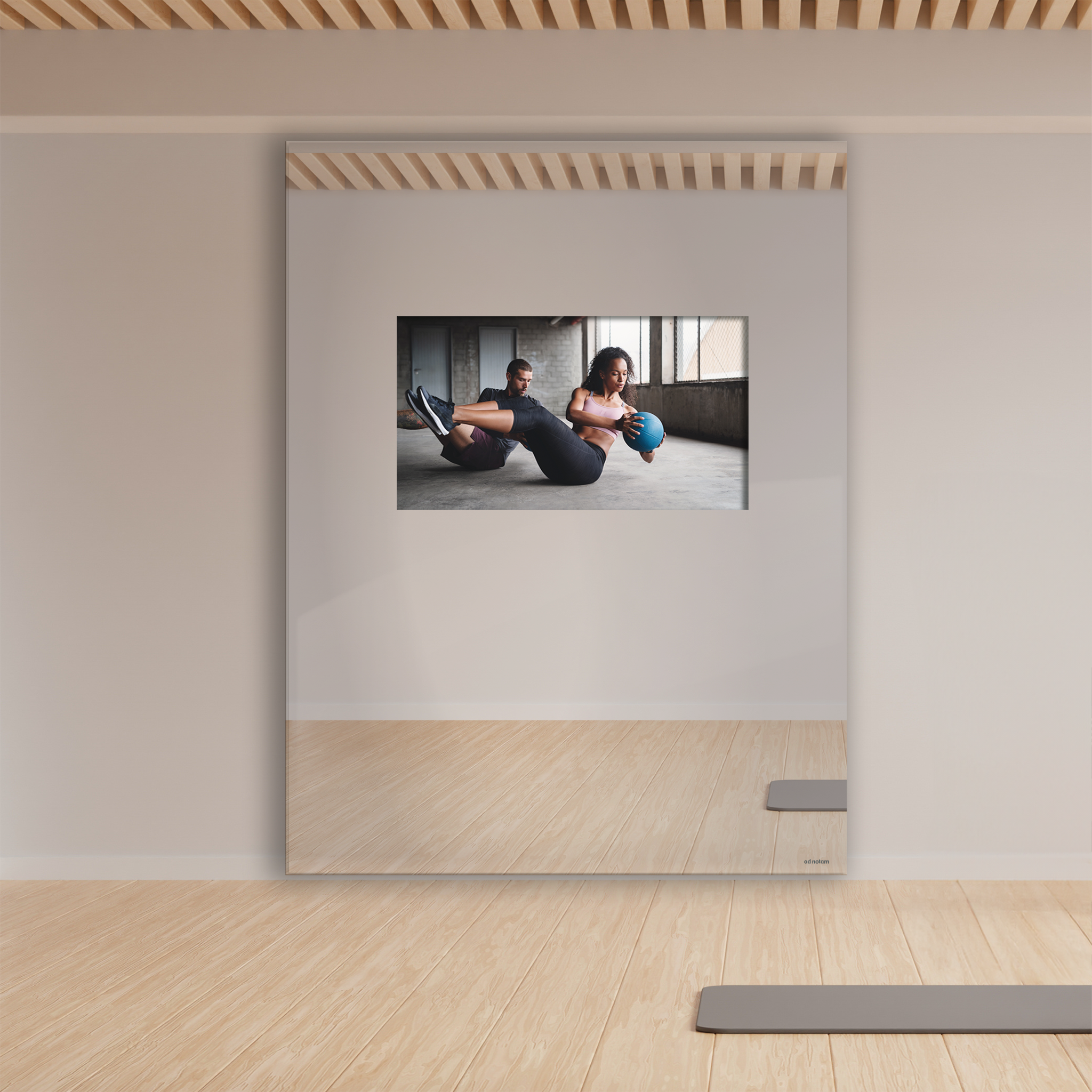

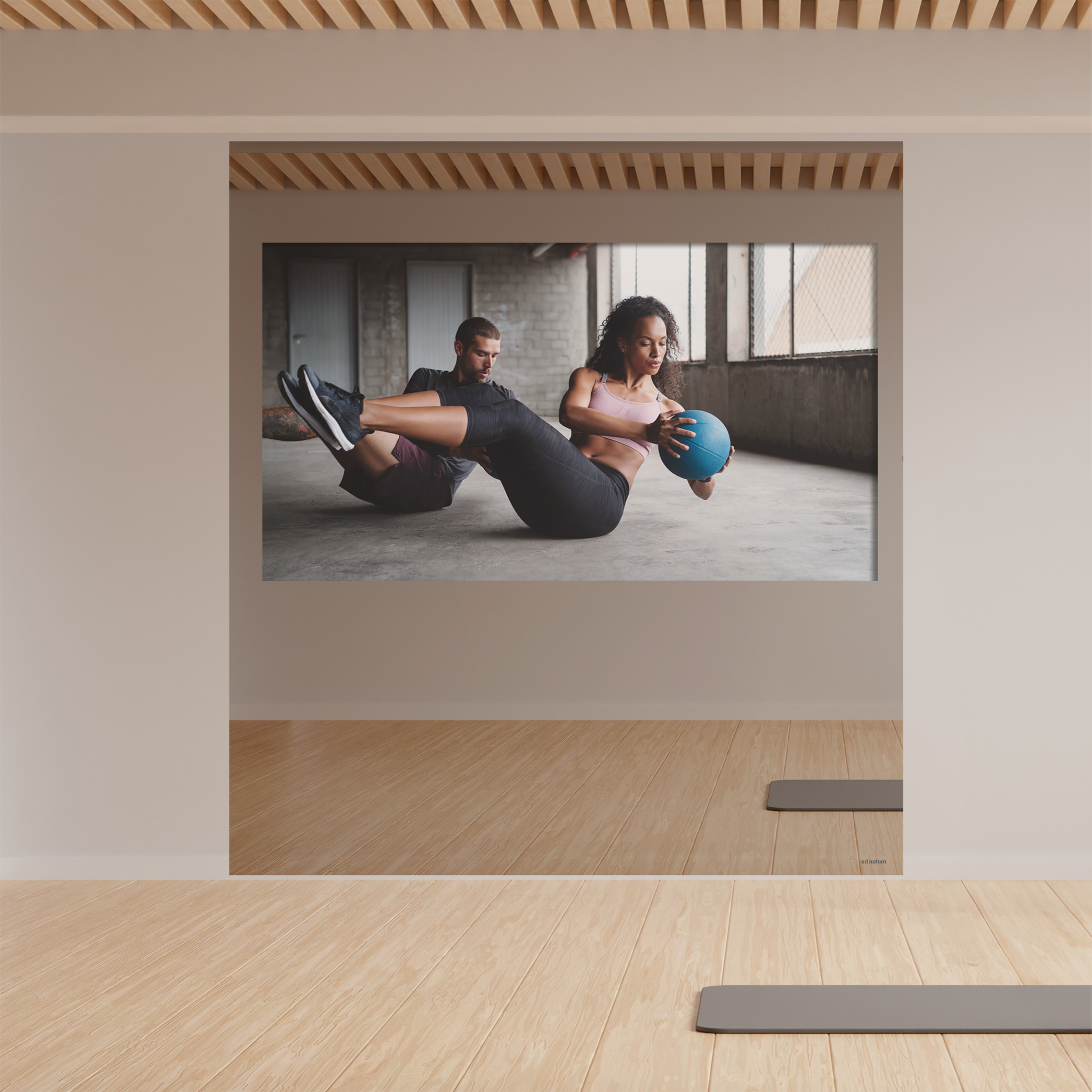

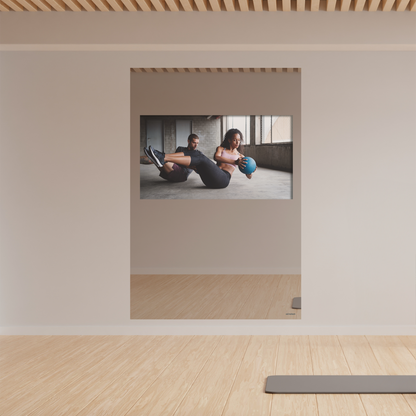

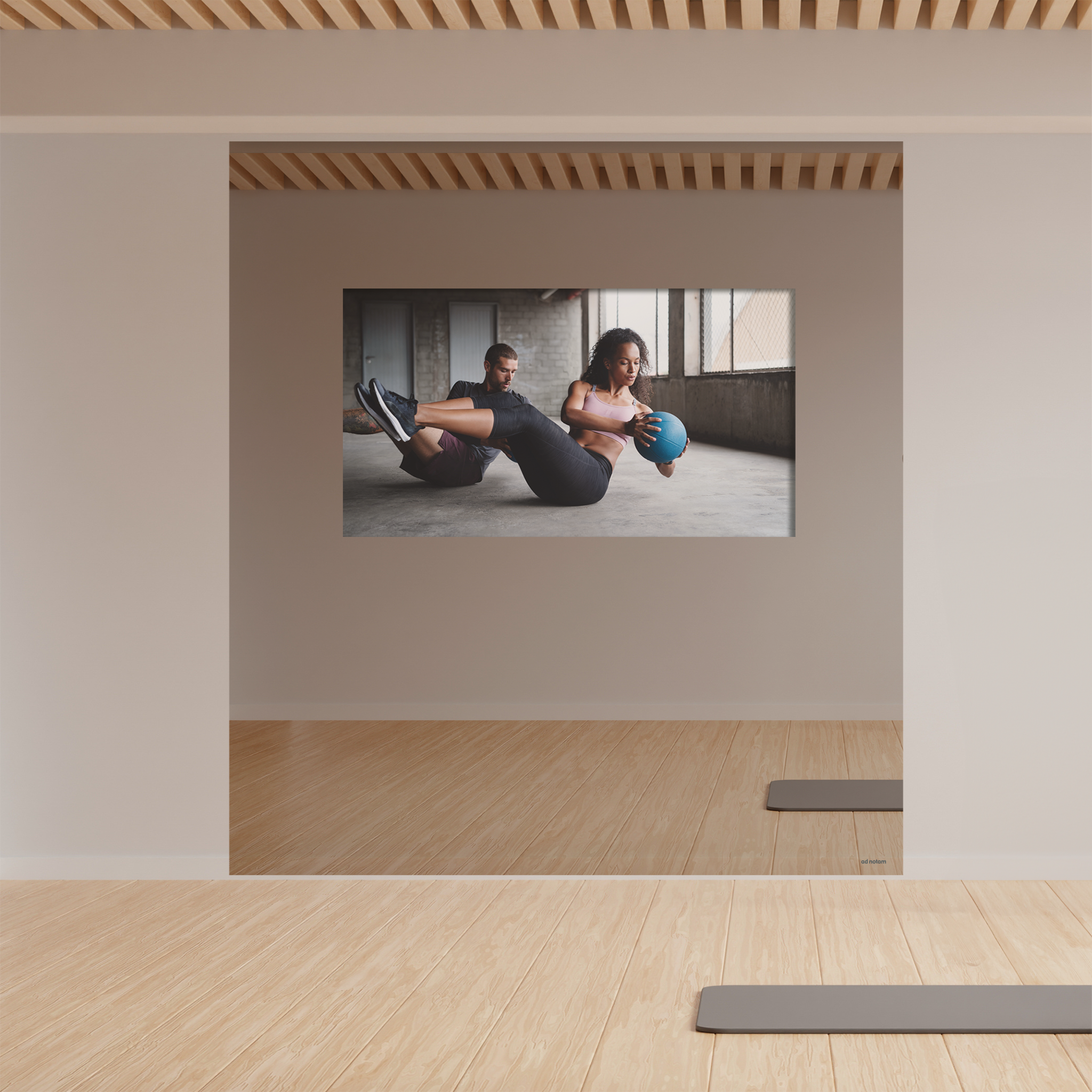

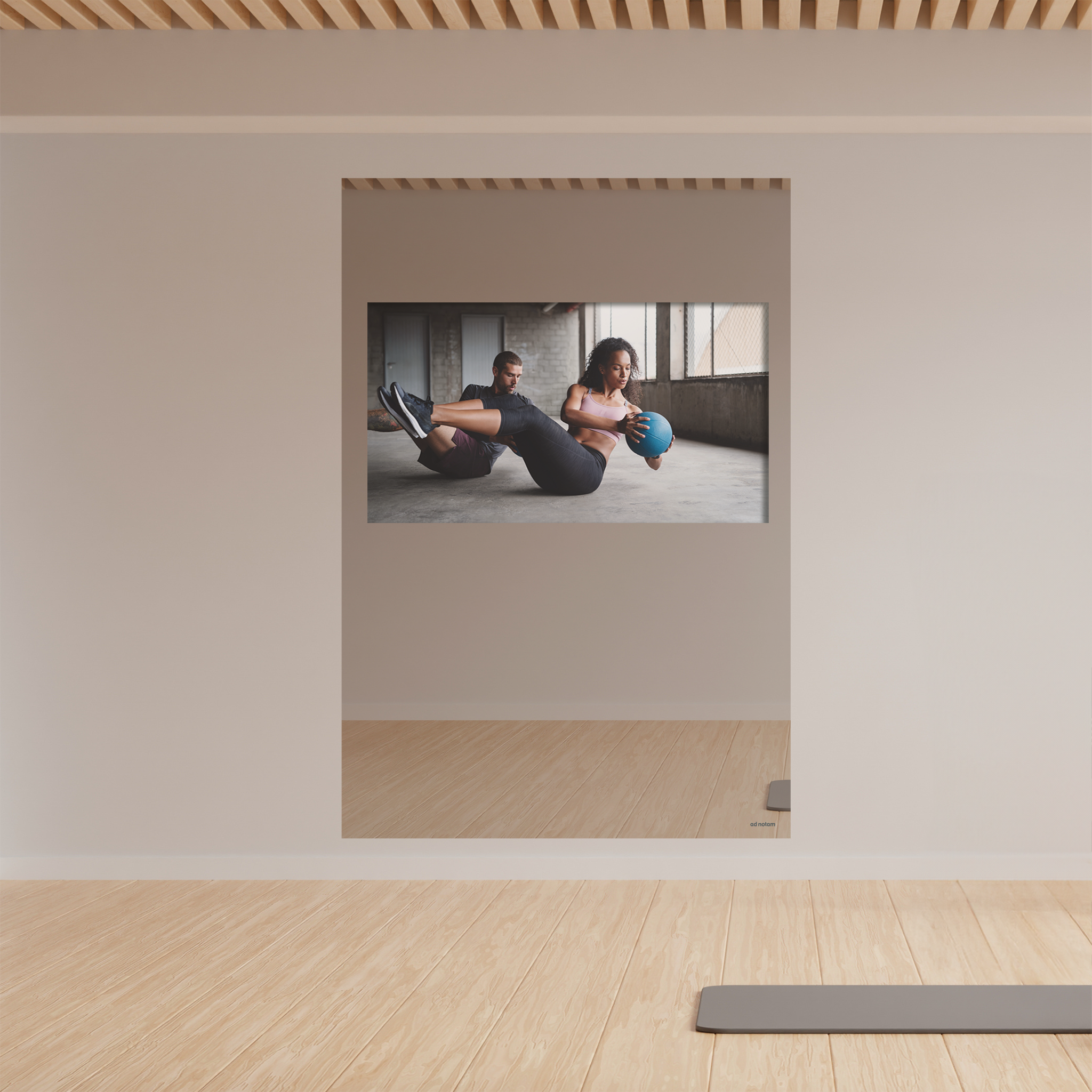

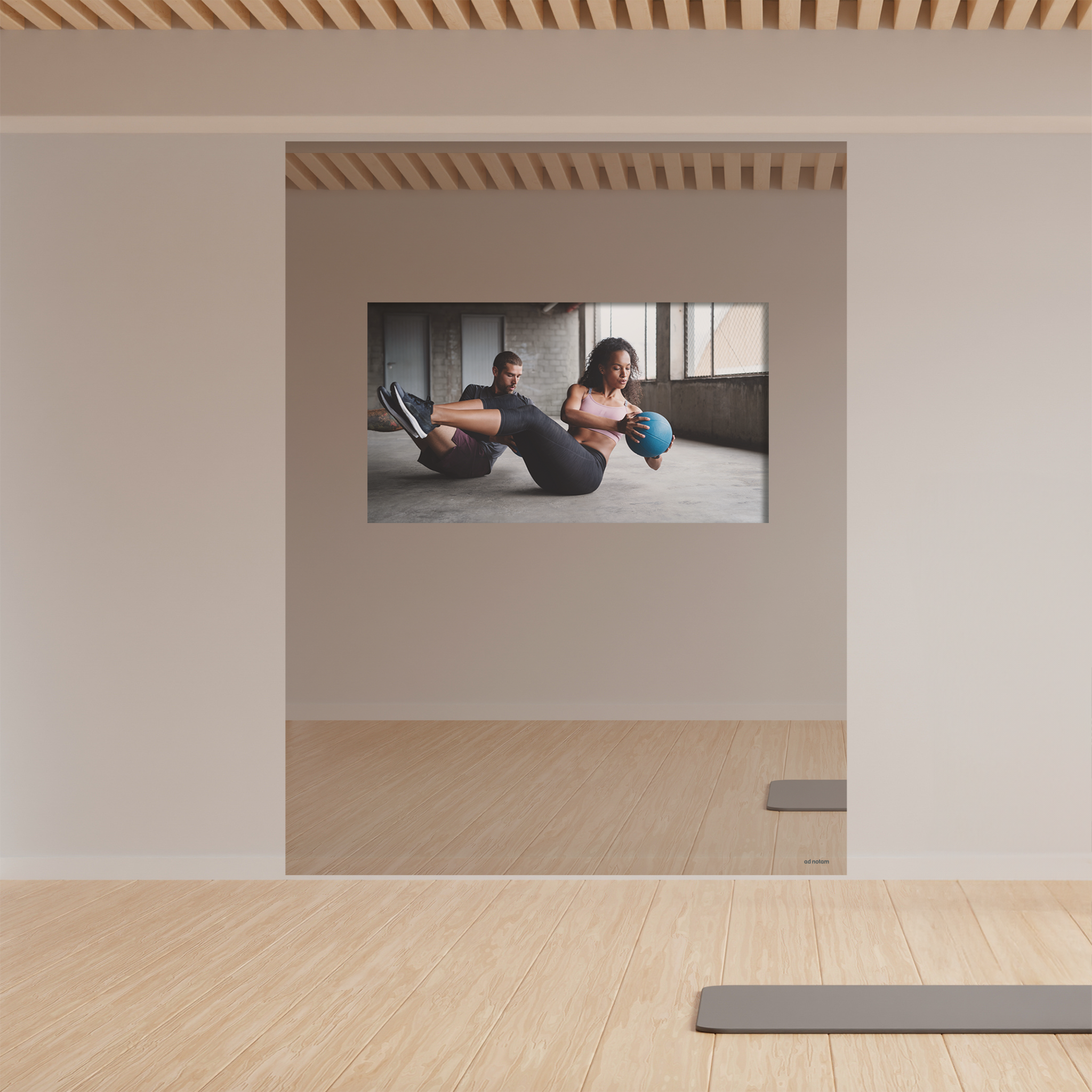

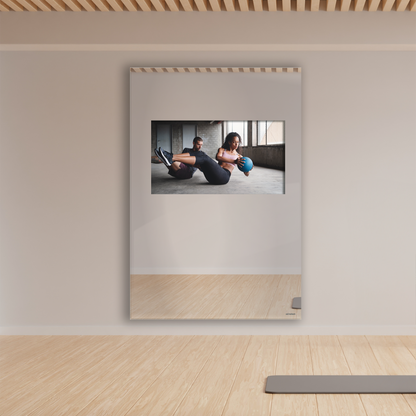

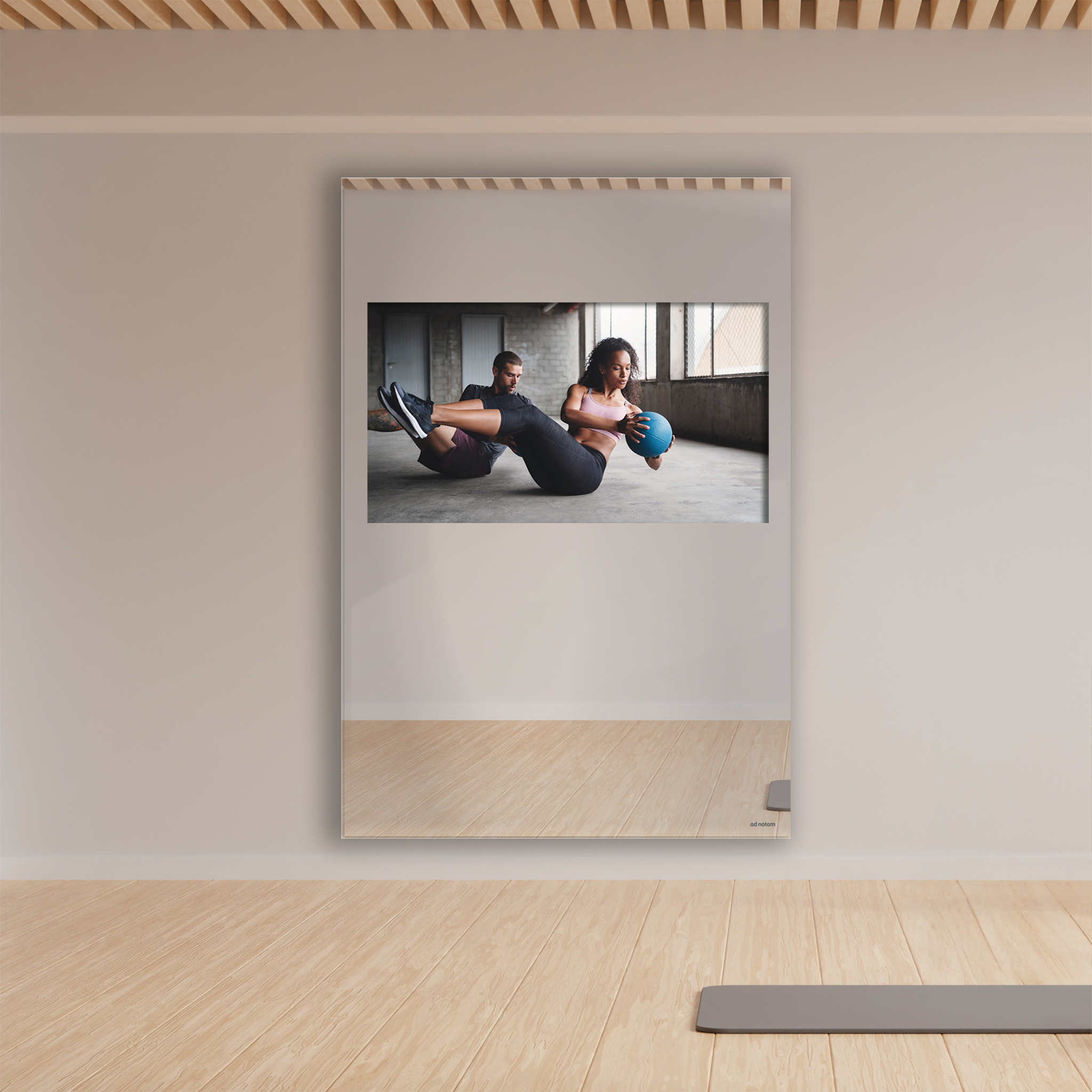

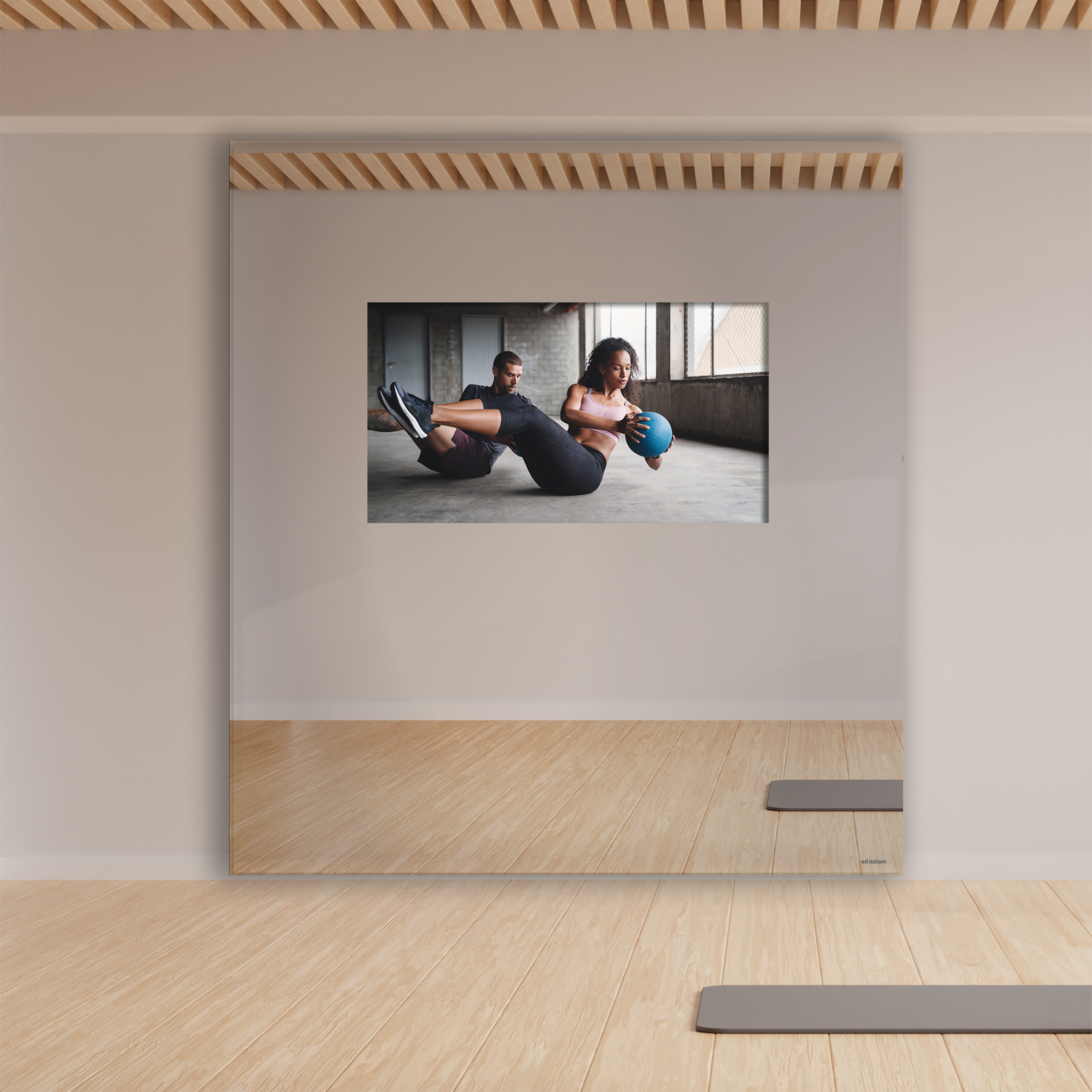

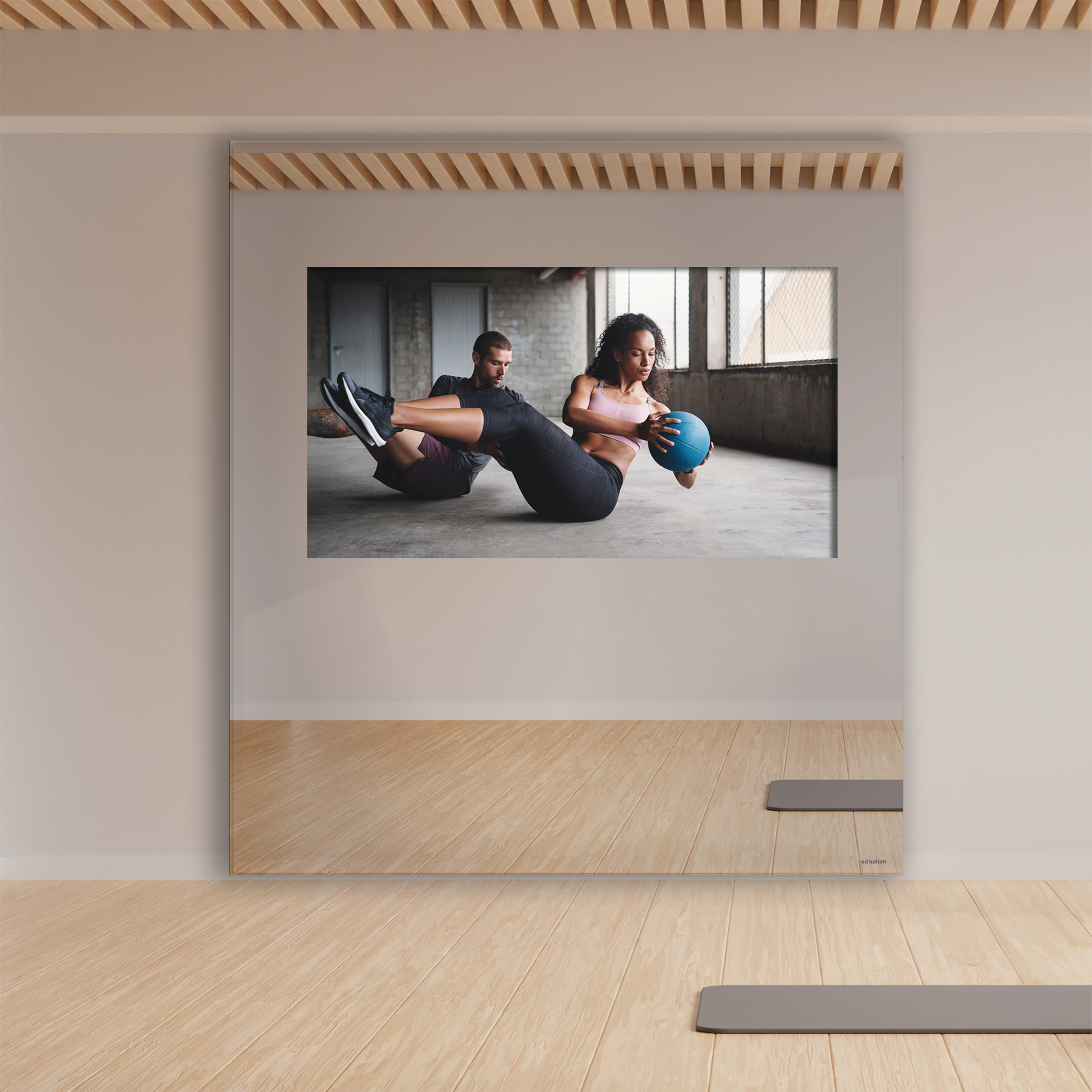

In the “ON” position, the crystal mirror technology allows almost 100% of the screen's brightness to display, permitting best picture quality with brilliant colours to transmit.

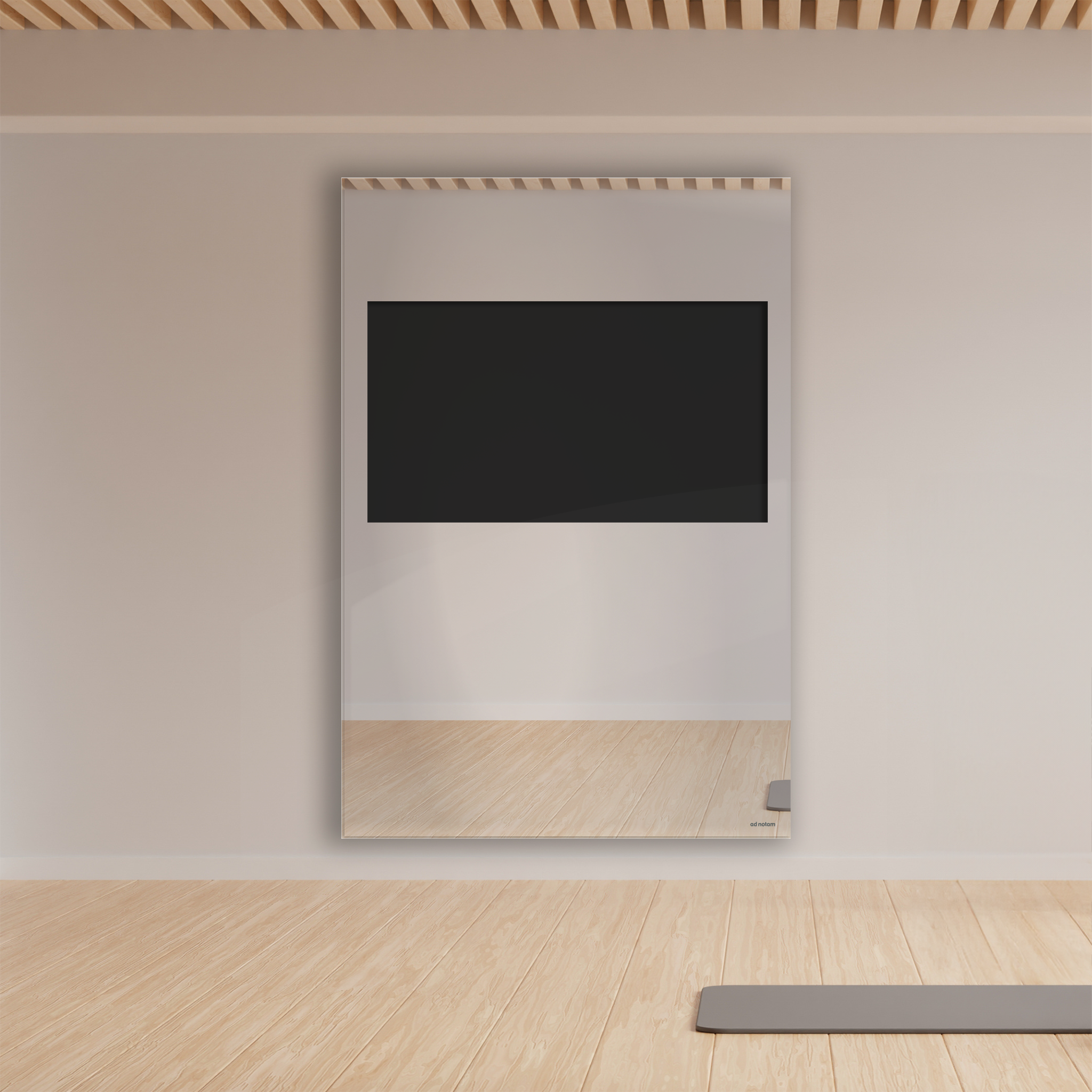

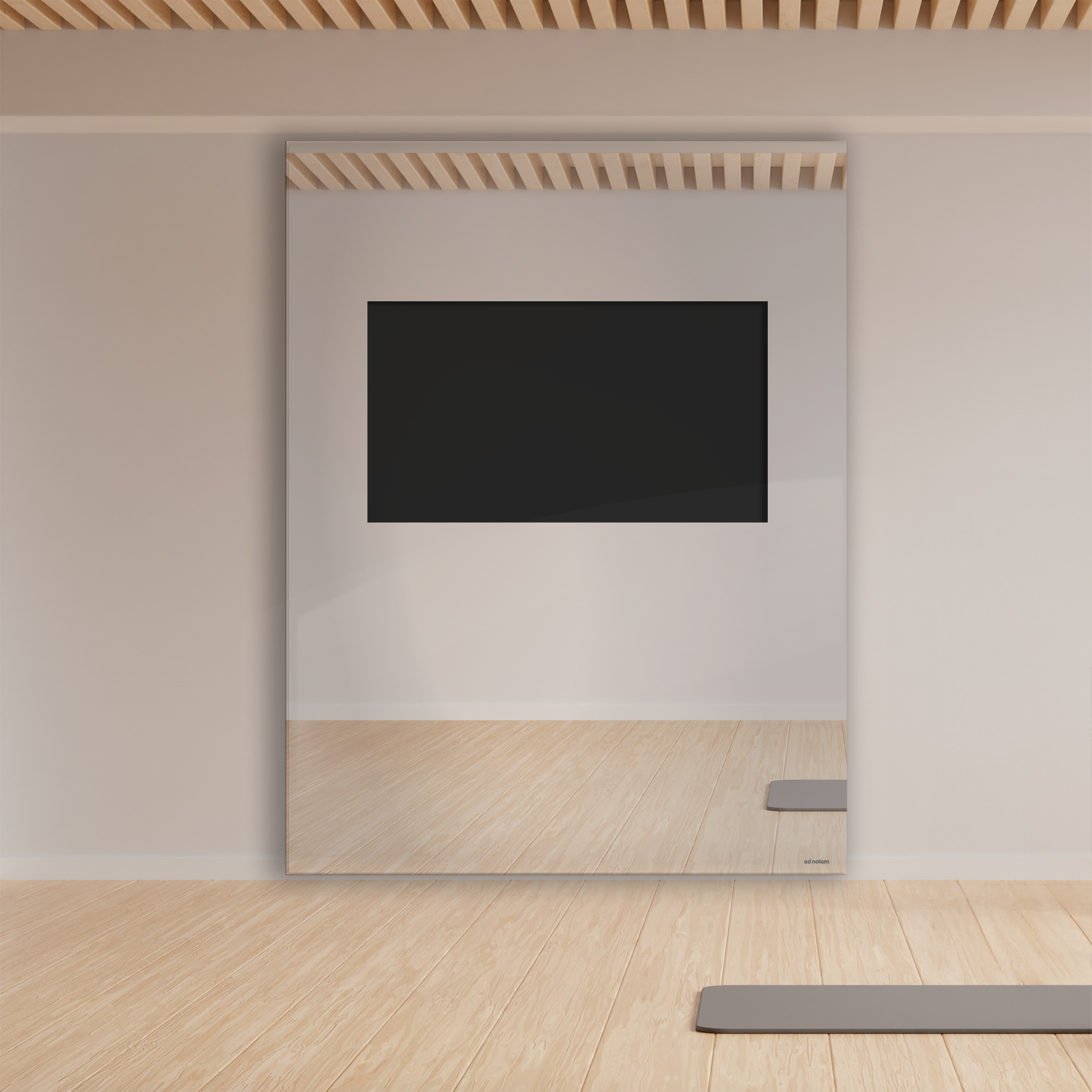

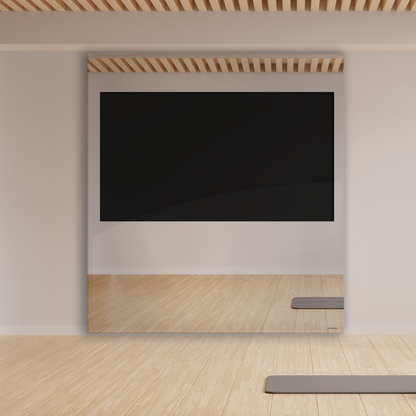

Switched Off
Crystal Mirror

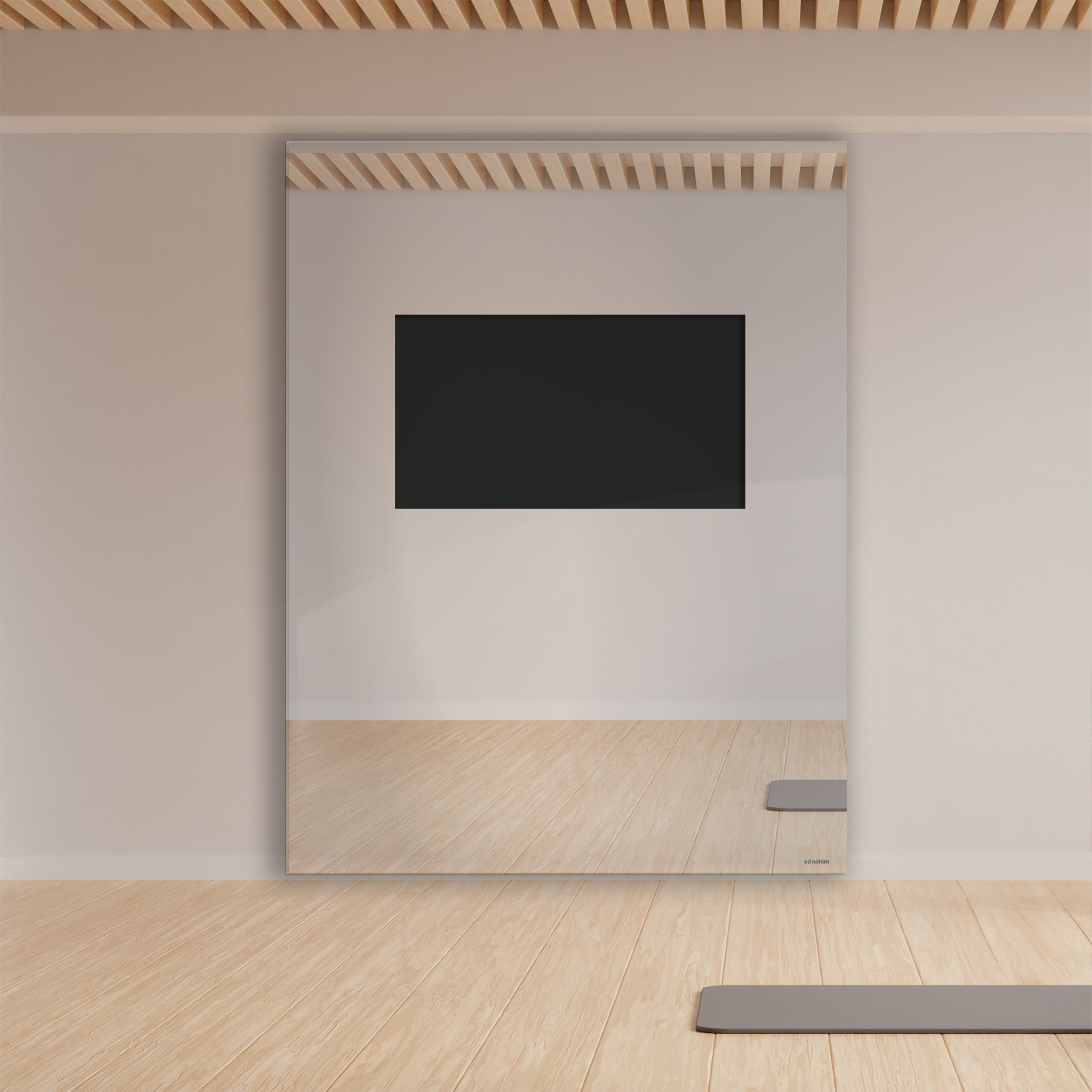

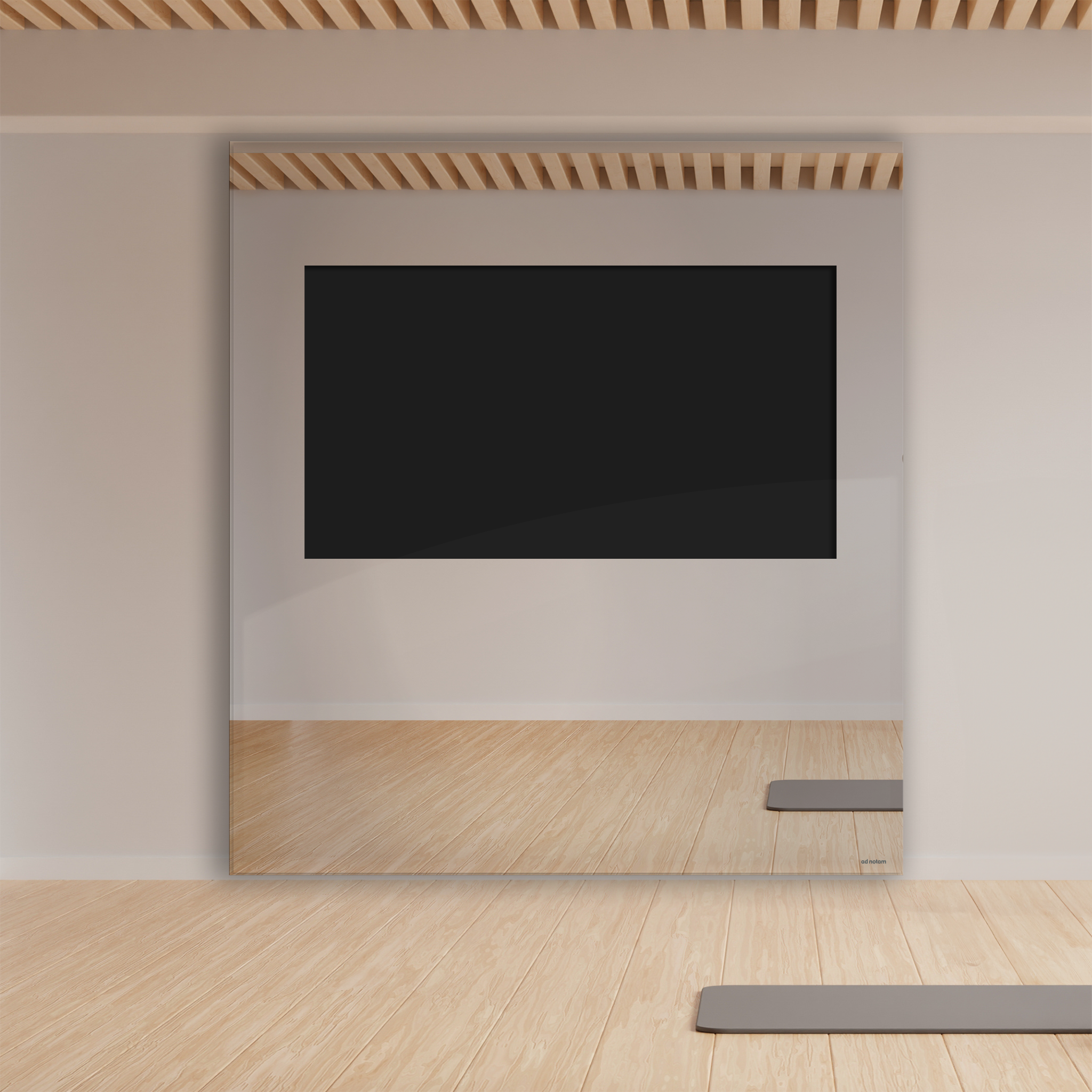

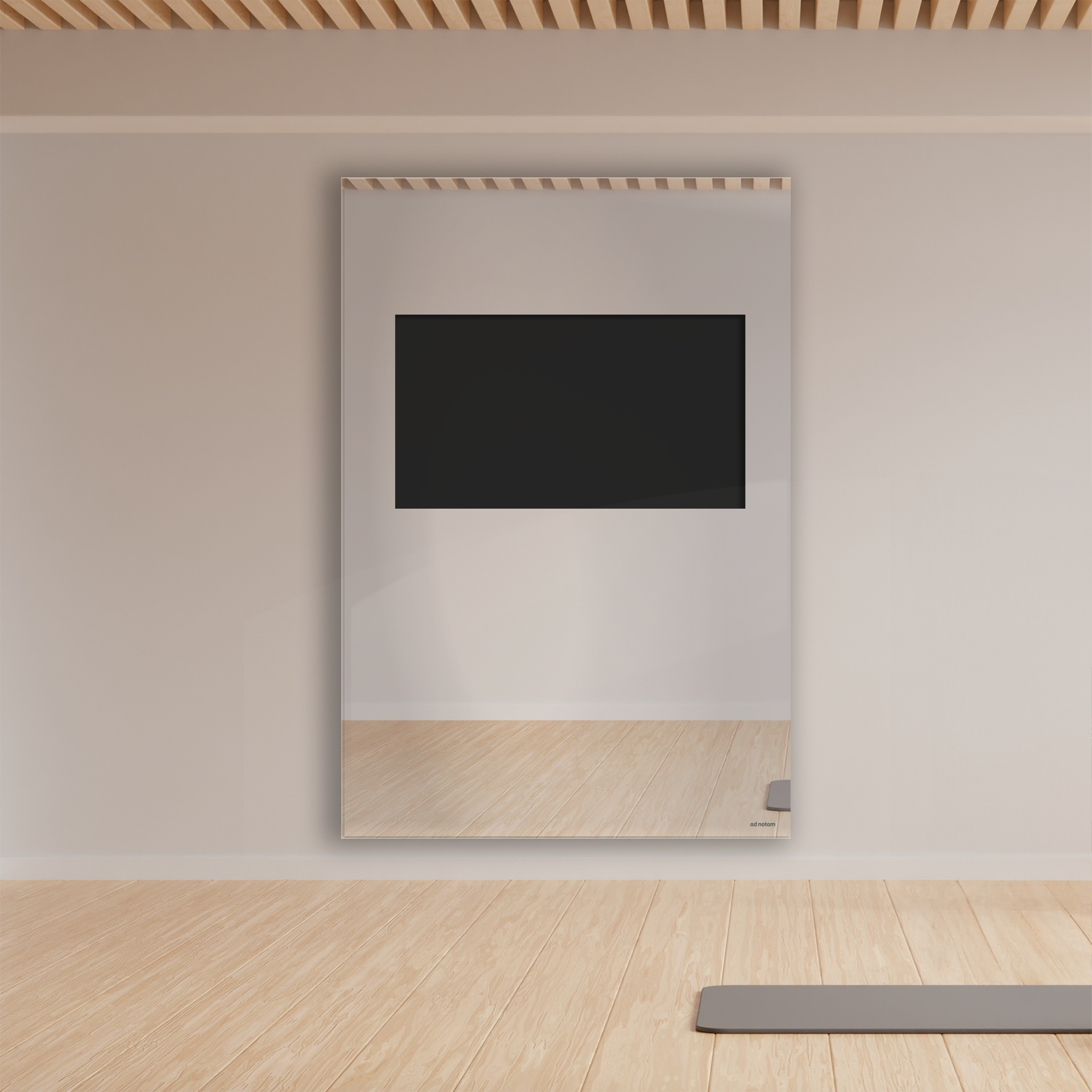

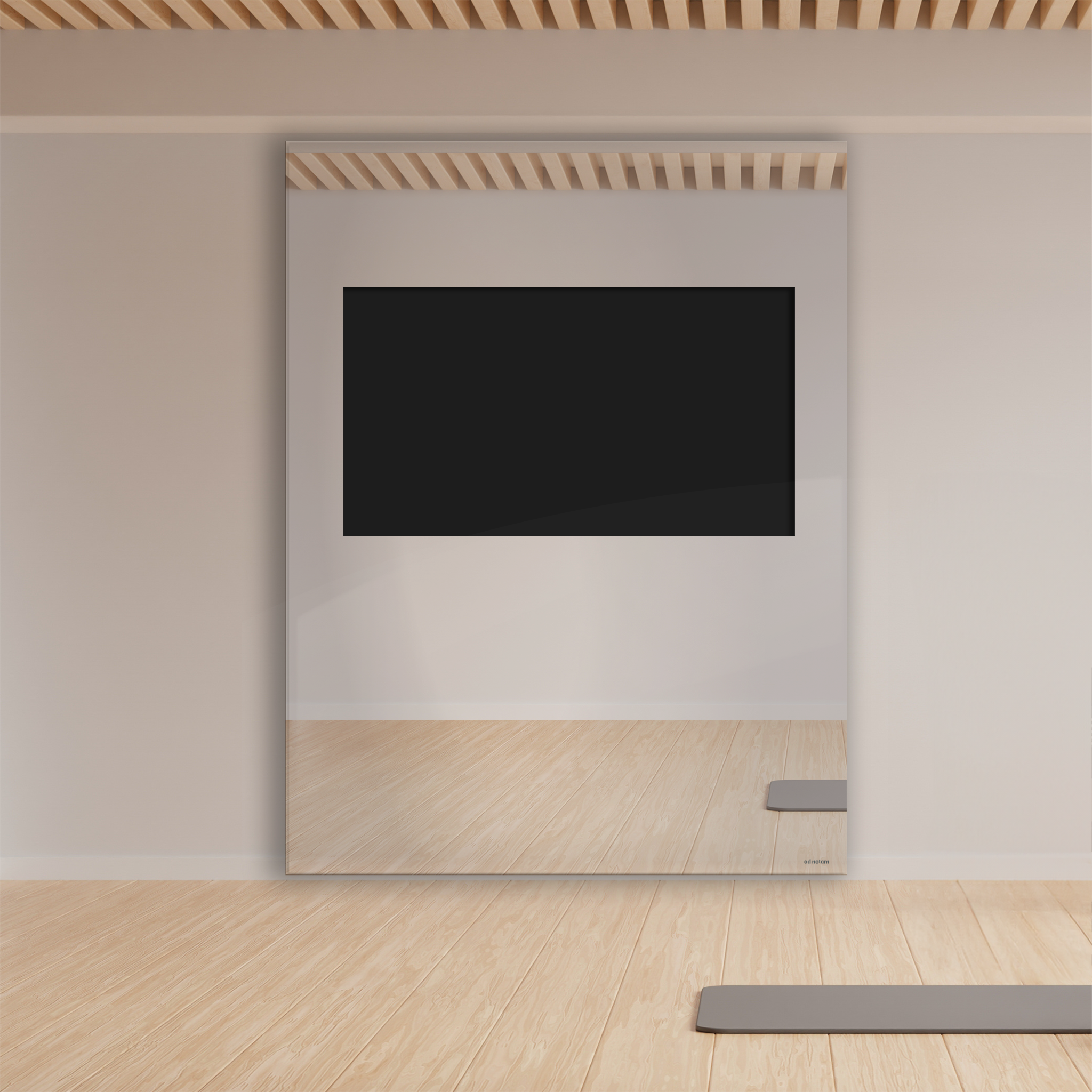

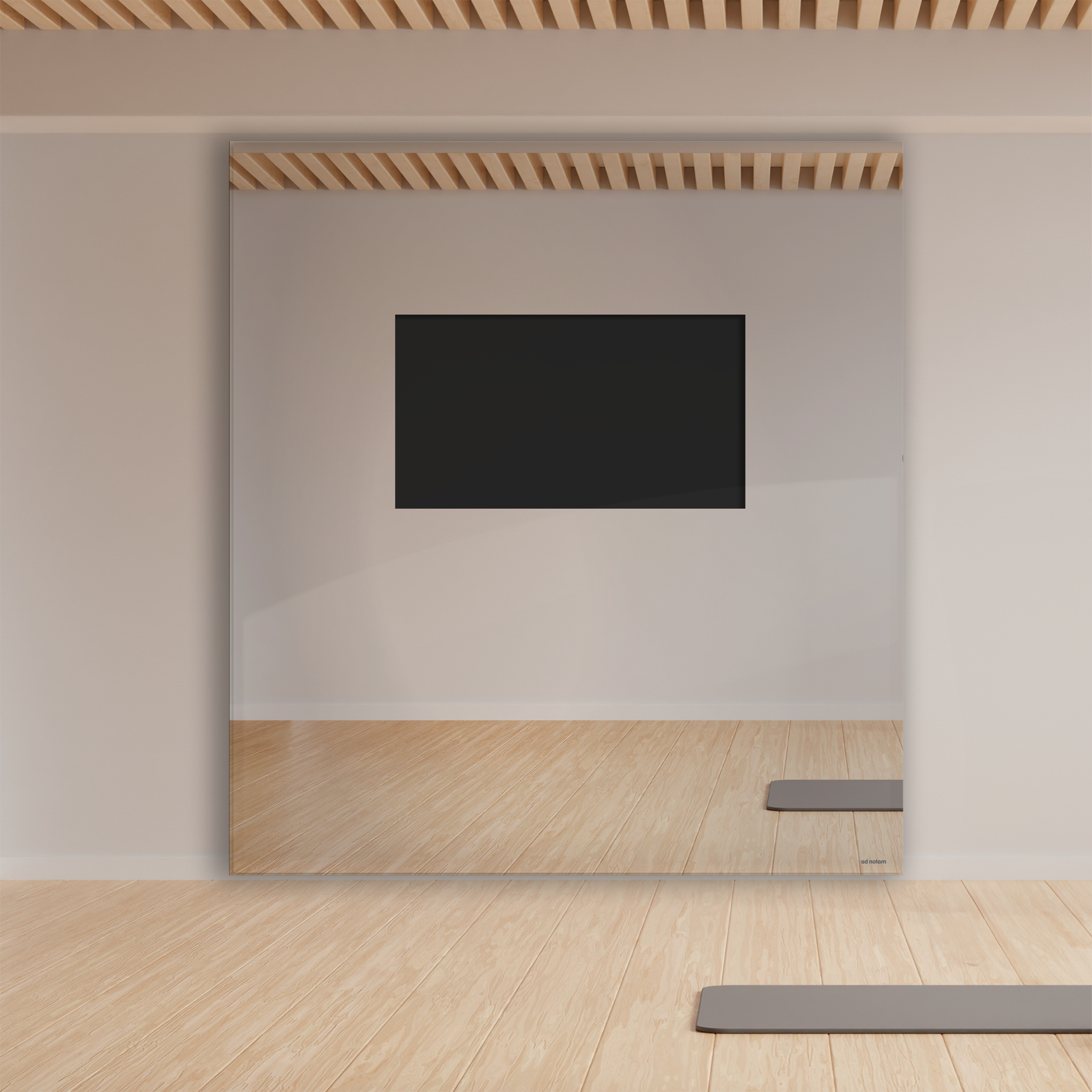

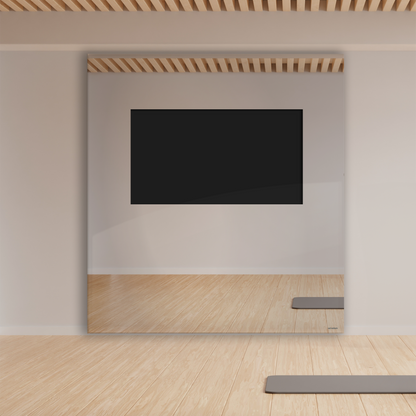

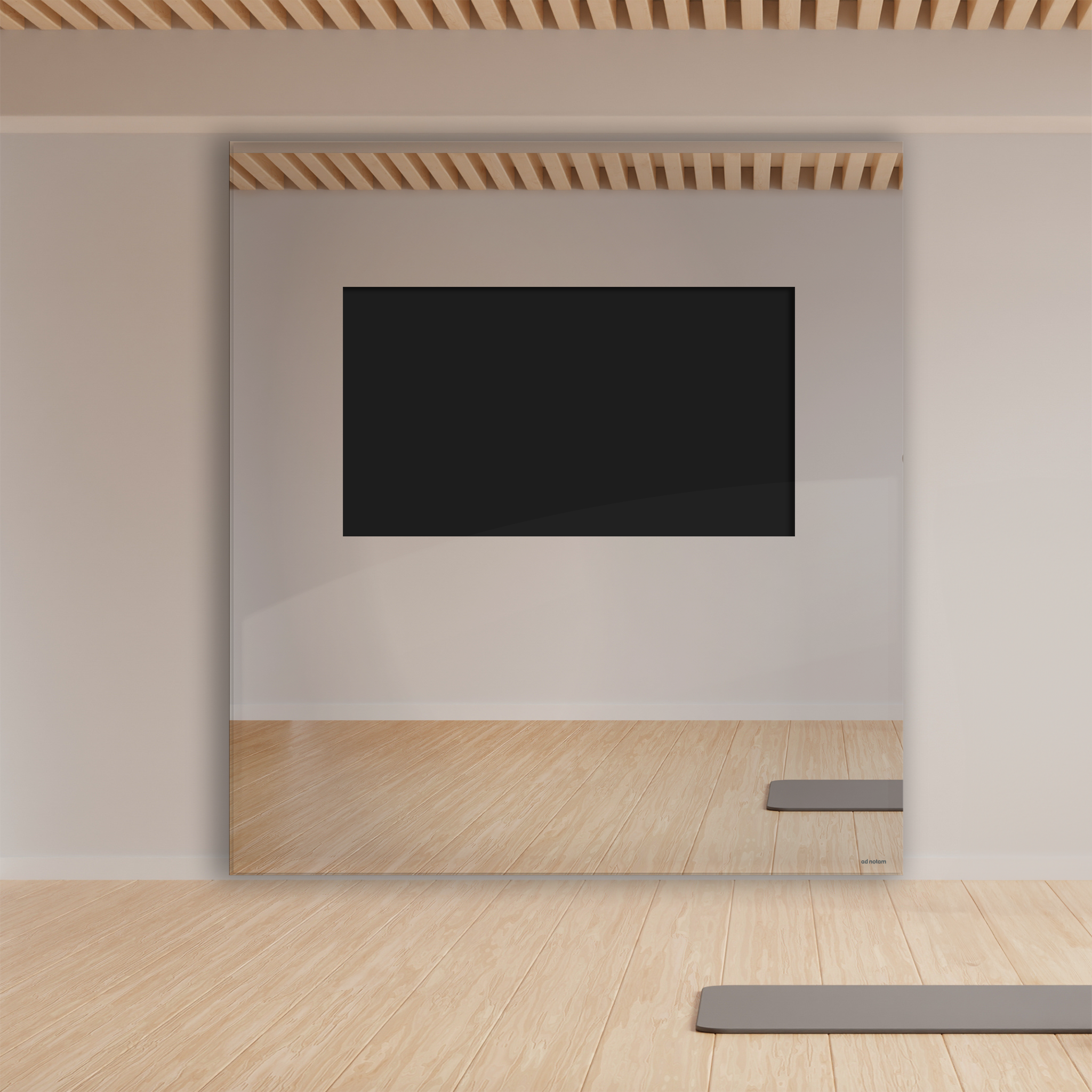

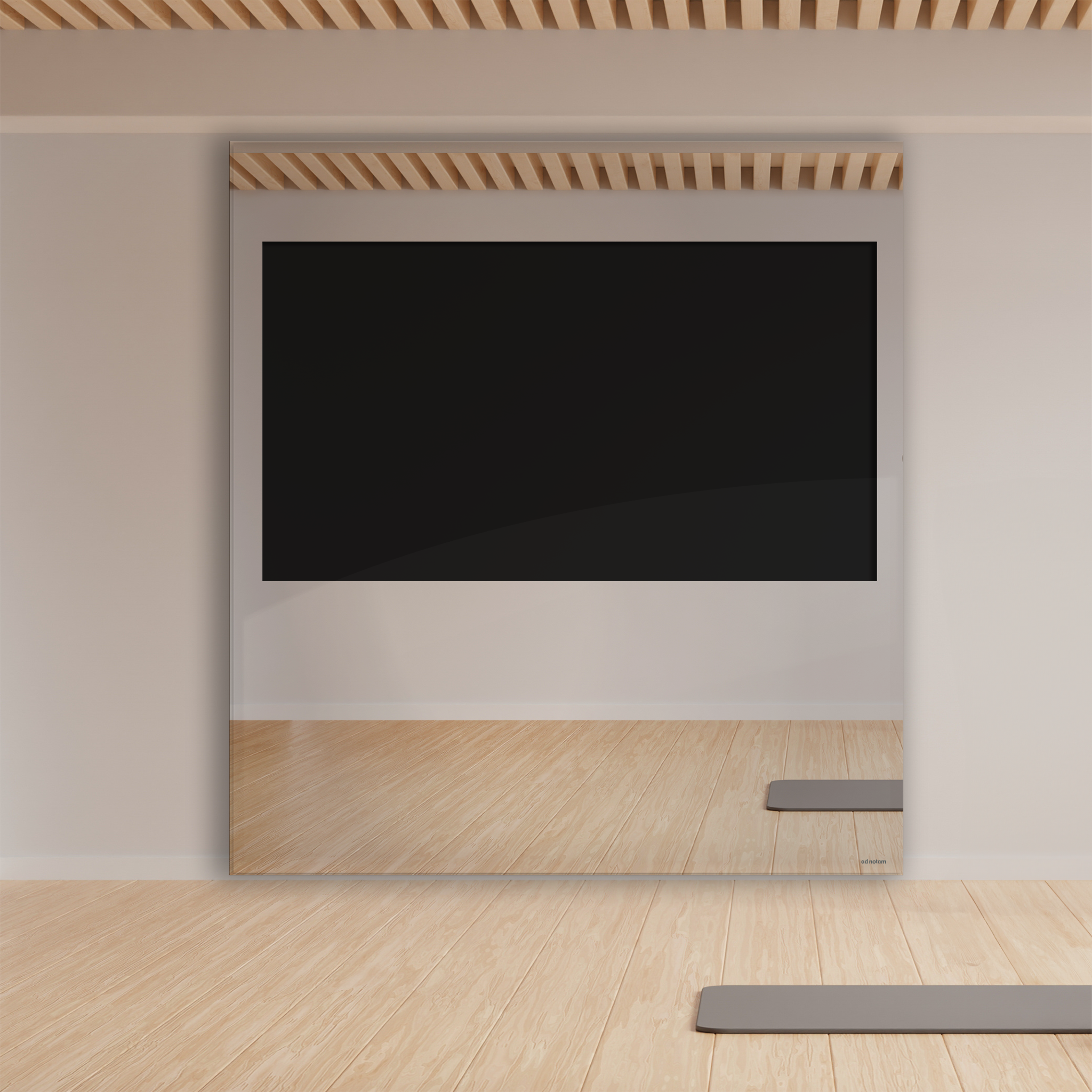

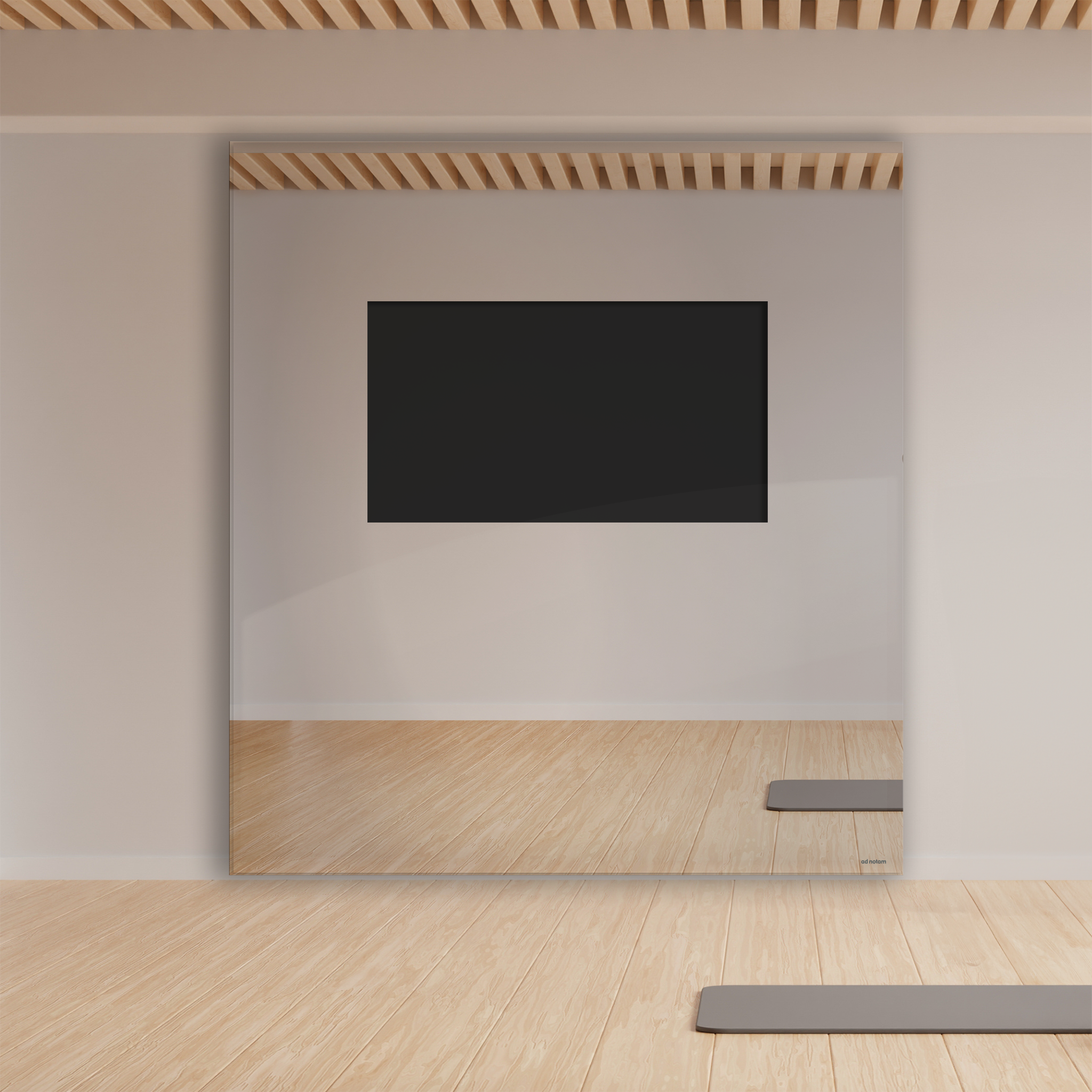

When in the “OFF” position, the screen appears in the mirror as a black area. Crystal mirror technology offers the best natural reflection possible.

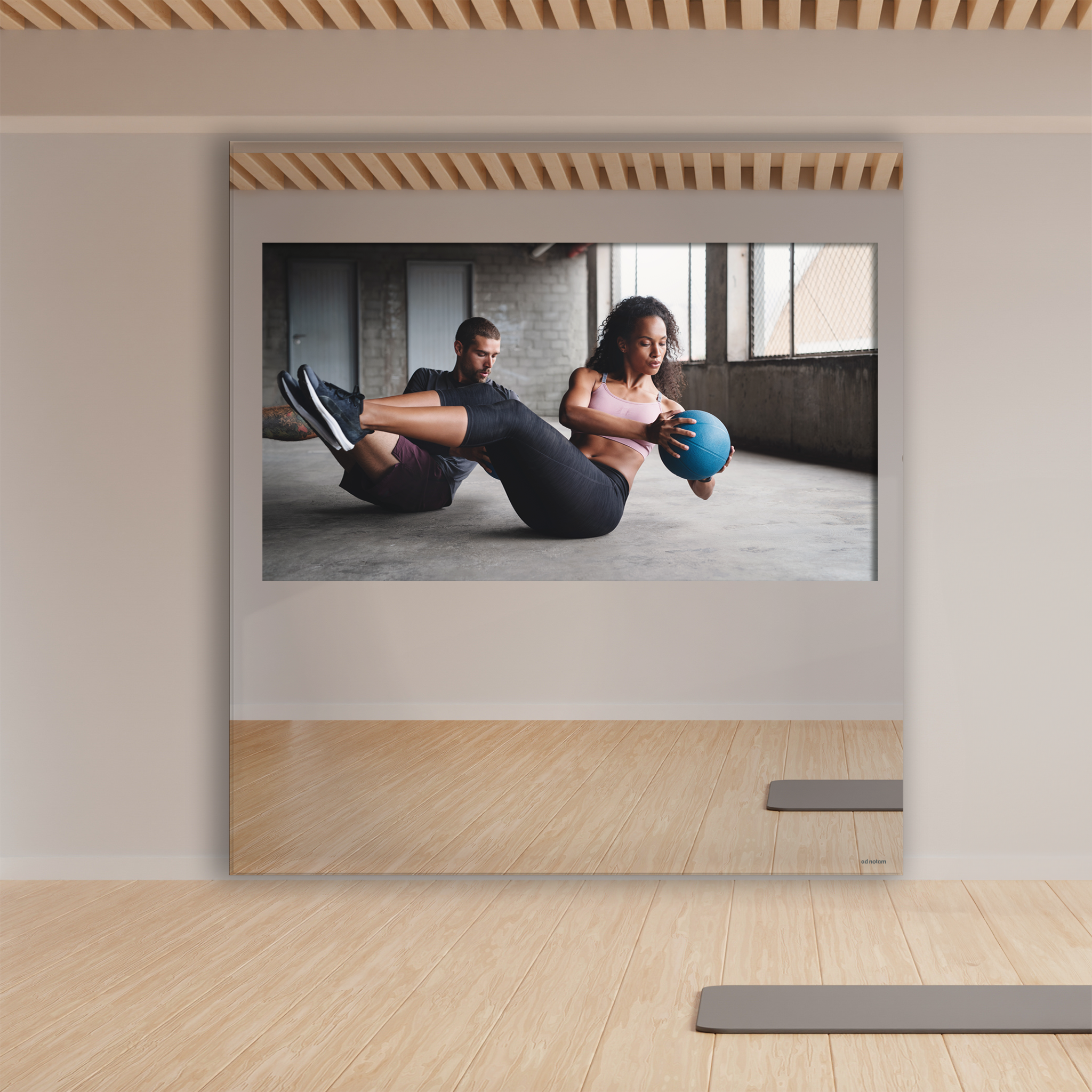

Switched On
Silver Magic Mirror
TOTALLY INVISIBLE, TINTED MIRROR WITH GOOD PICTURE QUALITY.

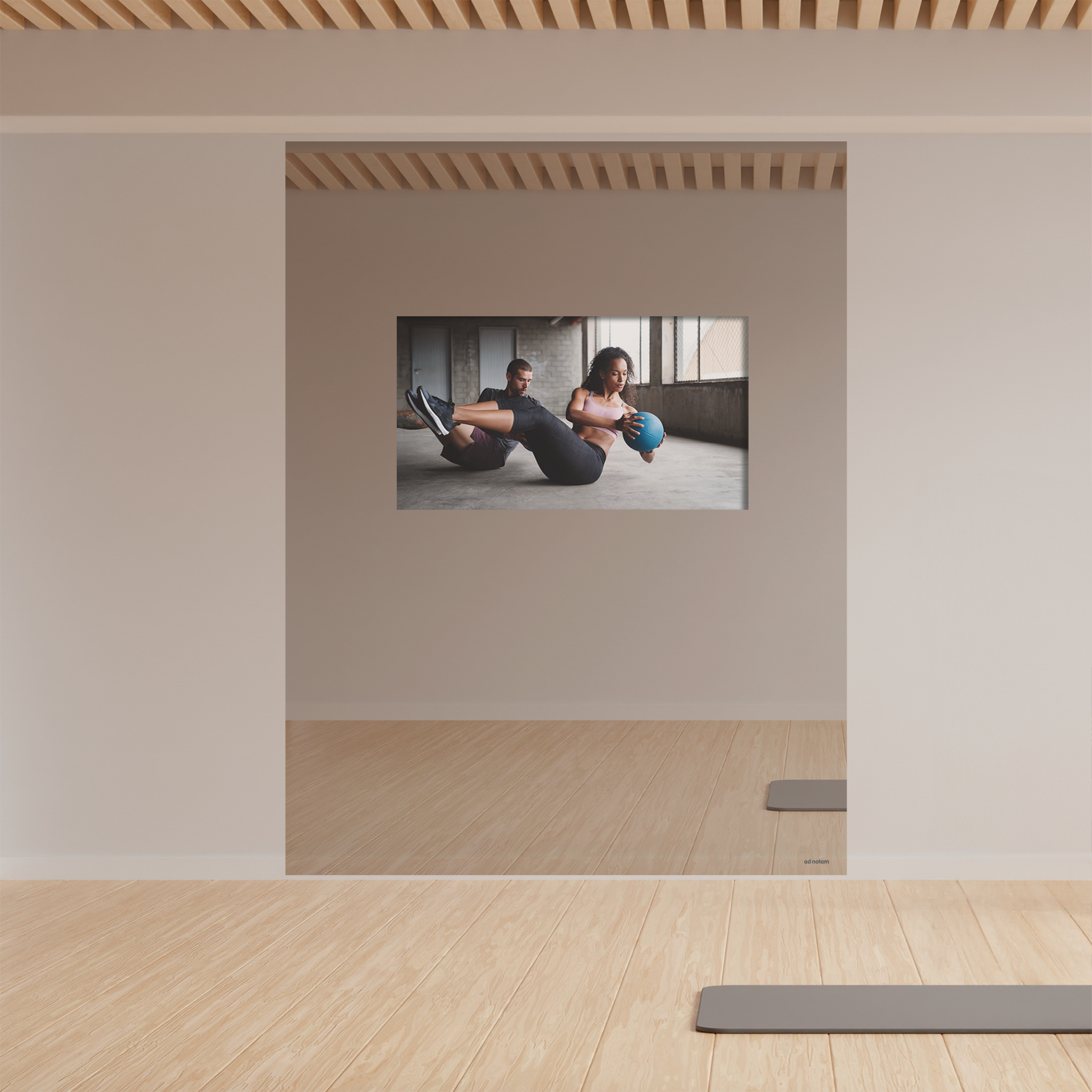

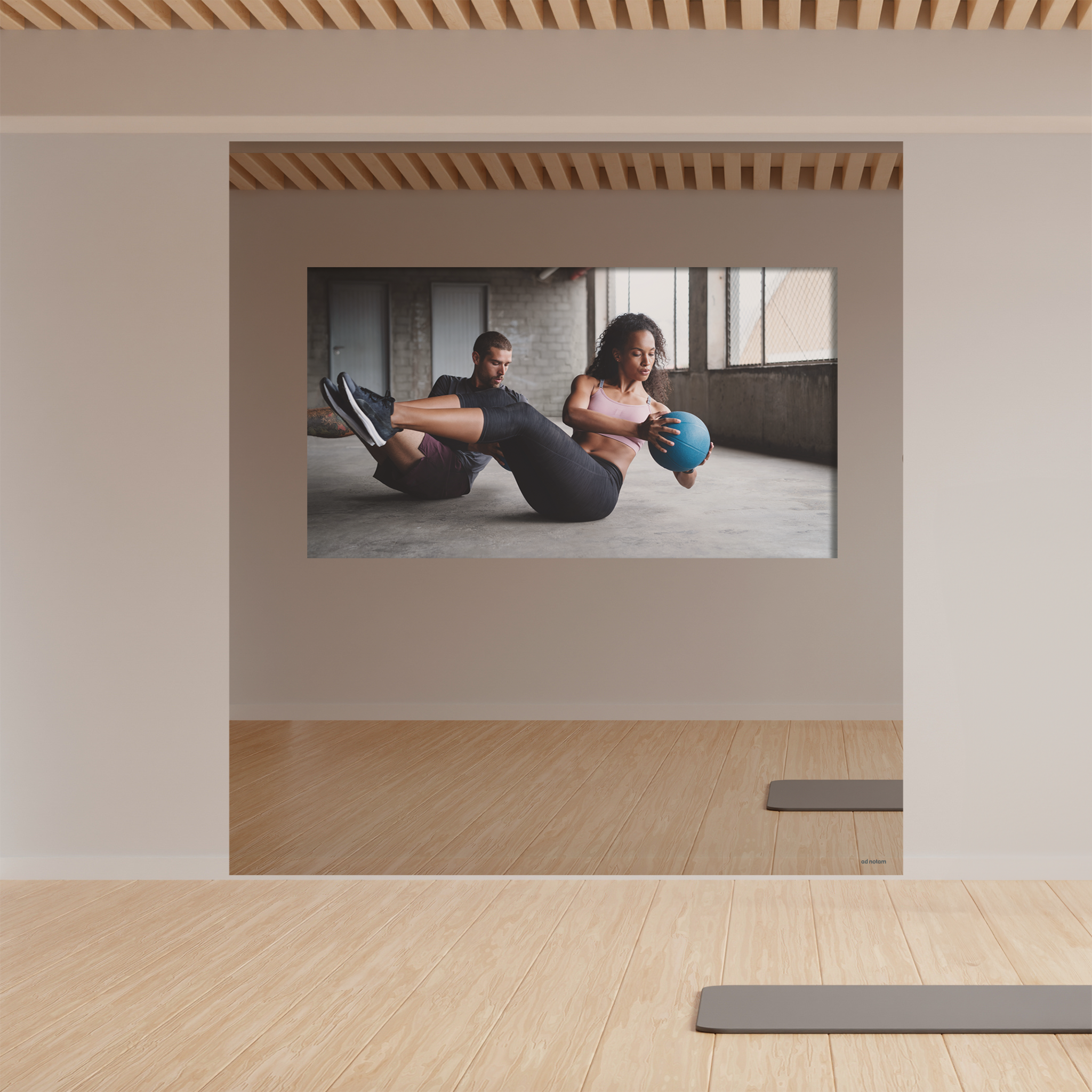

Allows the image area of the screen to appear in the “ON” position and completely vanish when turned “OFF”.
Due to the tinted look, the brightness of the screen and the reflectivity of the mirror are minimally affected.

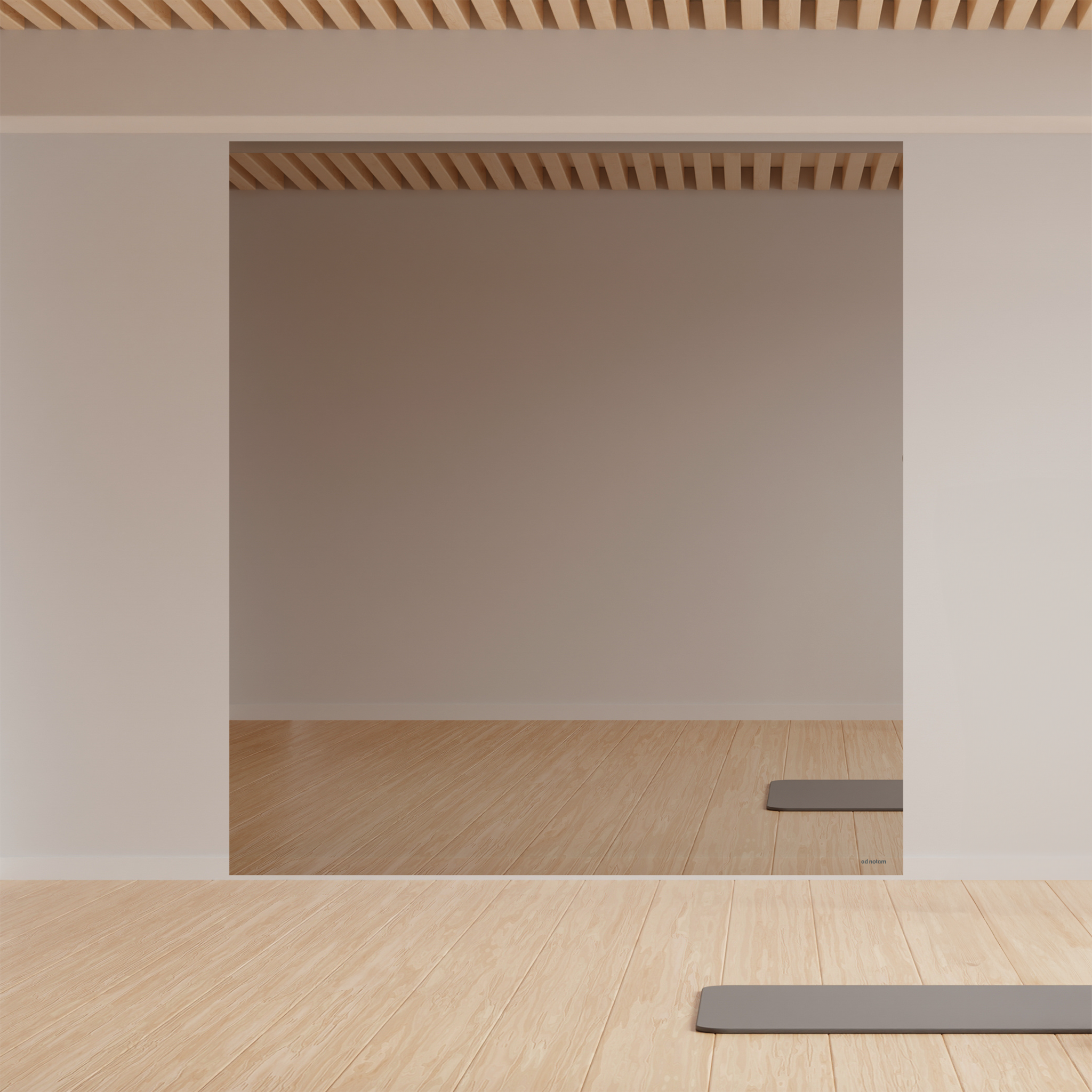

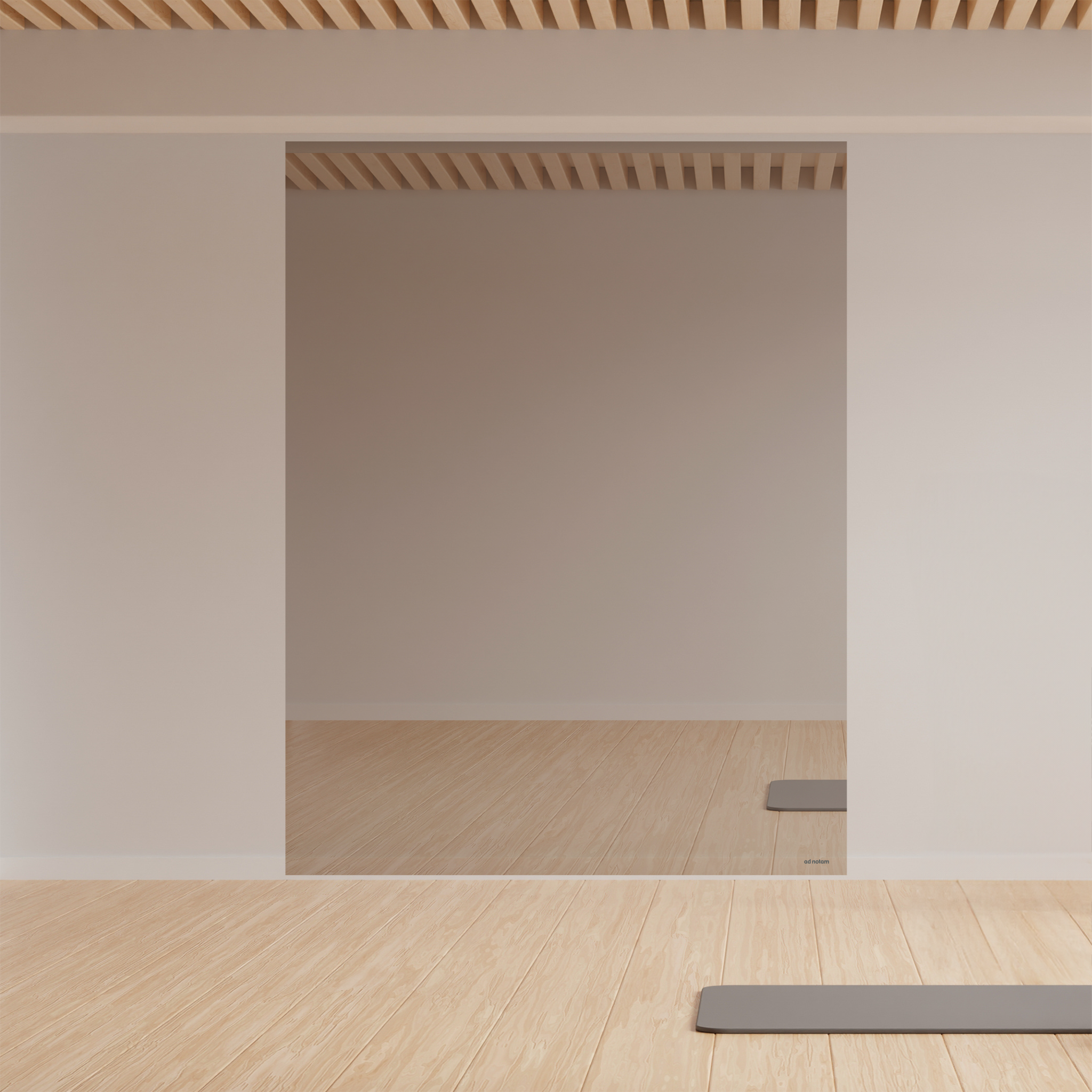

Switched Off
Silver Magic Mirror

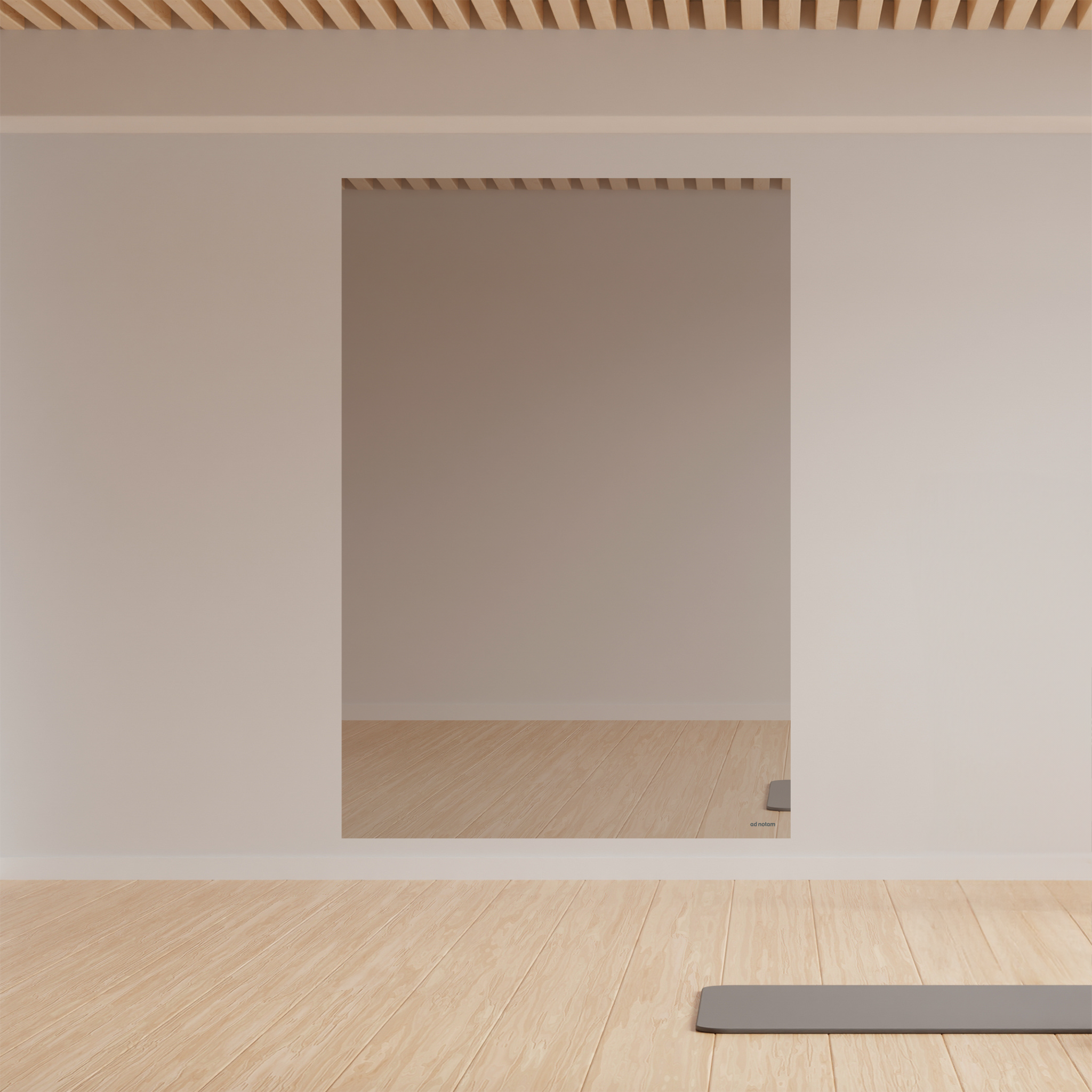

The screen leaves an almost 100% homogeneous mirror surface on the front, when turned off.

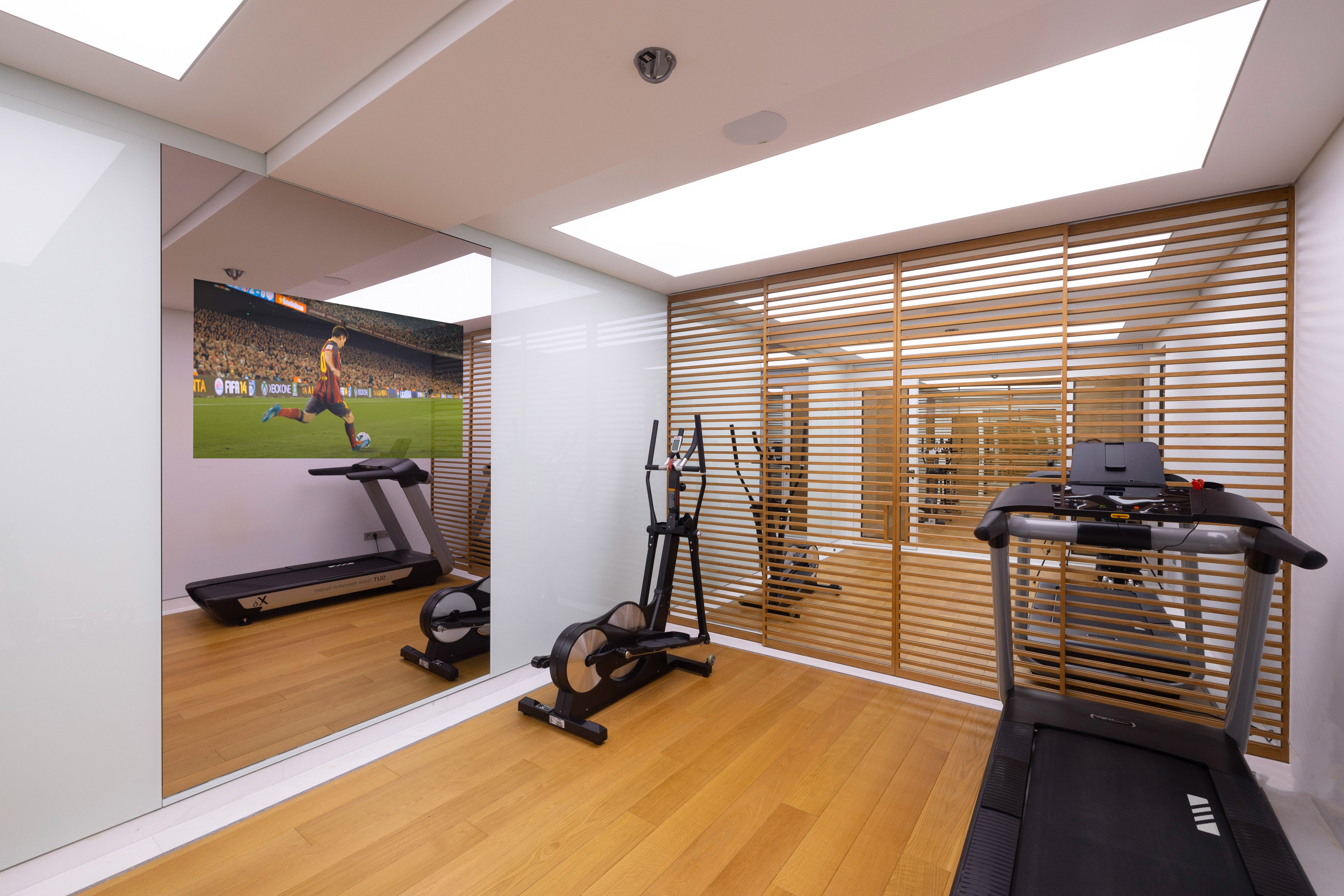

In our bespoke collections the screen can be placed flexibly at any place behind the mirror.
Tech Specs
Mirror
Crystal Mirror
Thickness: 6 mm
Surface: Float
Tint: Neutral
Reflection: 95 % +/- 5
Display area, when switched off: Visible
Silver Magic Mirror
Thickness: 6 mm
Surface: Float
Tint: Silver
Reflection: 60 % +/- 5
Display area, when switched off: Invisible
Display
Screen Size: 43.0'' (1067 mm)
Visible Image Area: W 941 H 529 mm (43.0'' diagonale)
Physical Resolution: 3840 x 2160
Screen Size: 49.0'' (1245 mm)
Visible Image Area: W 1074 H 604 mm (49.0'' diagonale)
Physical Resolution: 3840 x 2160
Screen Size: 55.0'' (1397 mm)
Visible Image Area: W 1209 H 680 mm (55.0'' diagonale)
Physical Resolution: 3840 x 2160
Screen Size: 65.0'' (1639 mm)
Visible Image Area: W 1428 H 804 mm (65.0'' diagonale)
Physical Resolution: 3840 x 2160
Screen Size: 75.0'' (1892 mm)
Visible Image Area: W 1650 H 928 mm (75.0'' diagonale)
Physical Resolution: 3840 x 2160
Picture Format: 16:9
Viewing Angle: Horizontal: Typical (Total) 178° Vertical: Typical (Total) 178°
Brightness: max. 900cd/m²
Connectivity
Video Inputs
Component: 3x RCA terminal, green (Y), blue (Pb), red (Pr)
Supported resolutions: 720p, 1080i, 1080p
HDMI 2.0: 3x HDMI terminal
Supported resolutions: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, UHD
Audio Inputs
Line Audio Input: 2x RCA terminal, white (L), red (R)
Other Inputs
USB: 1x USB terminal
RS 232: 1x D-SUB 9 pin male terminal
IR Input (Infrared): 1x Mini Jack 3.5 mm
DC Input: 1x DC Power Jack 2.1 mm
Audio Outputs
Speaker Output: 1x Phoenix Clip 4pin 2x 8W RMS @ 8 Ohms per channel
Line Audio Output: 1x Mini Jack 3.5 mm
Other Outputs
IR Output (Cable): 1x Mini Jack 3.5 mm
IR Output (LED): 1x Mini Jack 2.5 mm
DC Output 5V/12V: 1x Mini Jack 3.5 mm / max. 2.0A only one active voltage
USB Media Player
Audio: MP3, AAC, M4A, MP2
Picture: JPEG
Video: MPEG-4, H.264, AVI, MP4, MOV, DIVX
Document: DOC, PPT
OSD Languages
Deutsch, English, Español, Français, Italiano, Português, Chinese
Sound
Type: Invisible surface speaker, Stereo
Rated power: each 50W
Impedance: 8 Ohm
Sensitivity: 85 dB
Frequency Response: 60 - 20000 Hz
FAQs
Please read our FAQs page to find out more.
How do I clean the product?
To avoid damages please ensure the observance of the following instructions:
• Use mild, fast-drying household spray glass cleaning solutions with ammonia and water. Ammonia concentration not to exceed 1.5% of weight.
• Use a lint-free paper cloth that is non abrasive or a soft cotton cloth without seams, buttons, plastic or metal parts.
• Pre-moisten glass surface with water or cleaning solution to loosen dried dirt and debris before attempting to wipe it away - never scrape with a metal blade or tool
• Never use abrasive household detergents as cleaning agents.
• Never attempt to remove debris /dirt from the glass by using a scraper or razor blade.
• Never trap abrasive particles between the cloth and the glass surface while wiping away the cleaning solution.
Is it easy to install the product?
For ad notam it is very important that our products can be installed easily and safely. For this reason, in contrast to other industry providers, we always supply a mounting template for surface-mounted installations. This ensures that all wall brackets are in the correct position and the installation is completed within a short time.
Does the product come with integrated loudspeakers?
Yes, the product is equipped with invisible surface loudspeakers.
Is the TV screen completely invisible when switched off?
This depends on your selection of the mirror type. We offer different mirror types depending on your application needs. The Silver Magic Mirror completely vanishes the screen when turned off.
Doesn`t the humidity in bathrooms affect the product?
No, the product can be safely installed in bathrooms zone 3 (IPX2 rating). If you wish to install our products outside of zone 3, you have to contact us for guidance upfront.
