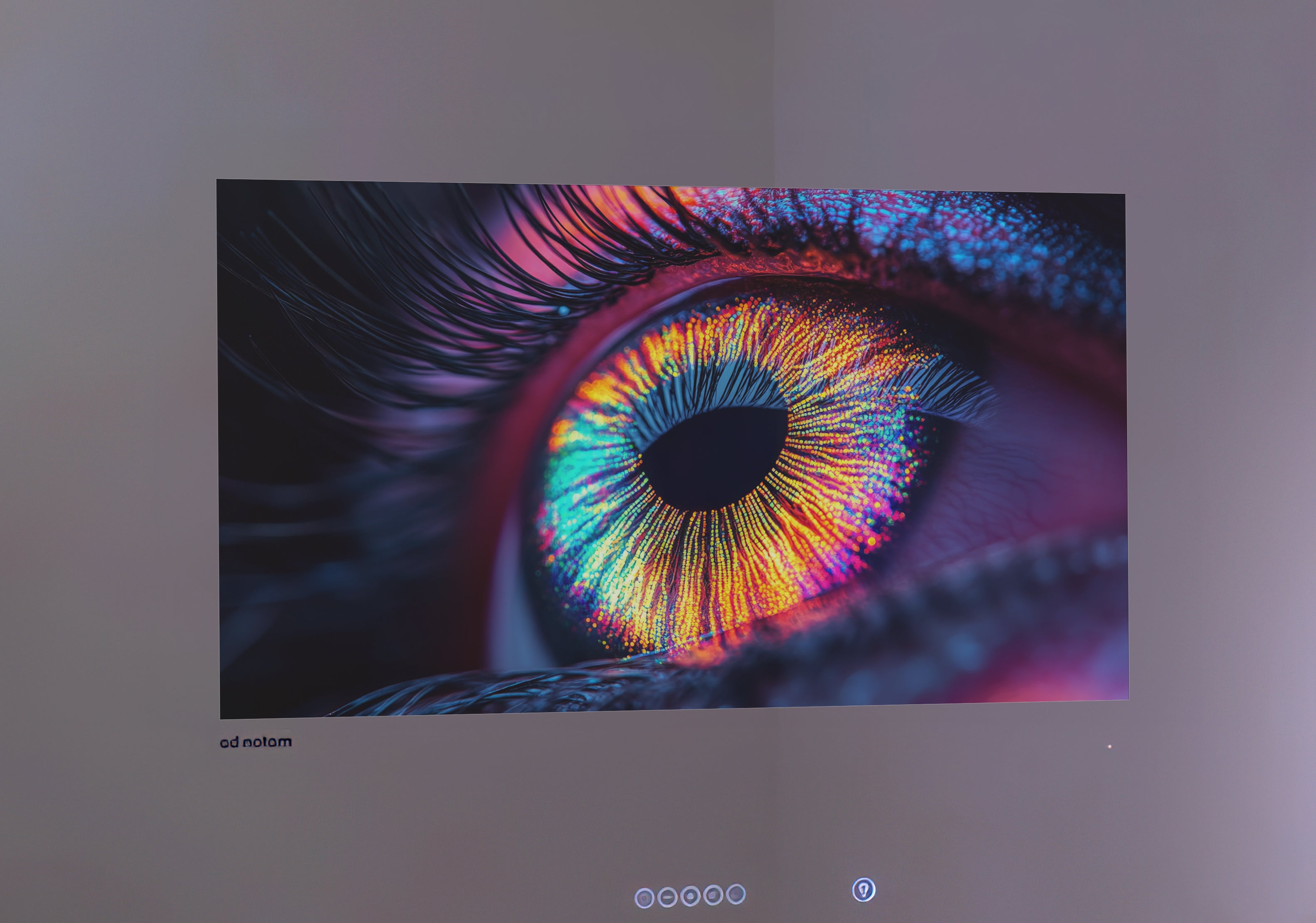

Higher Brightness & Better Performance
Our high brightness technology allows the image to shine through the mirror without picture degradation as known from other Mirror TVs and with minimal glare.
ad notam displays deliver vibrant, realistic images for highly emotional visual experience. With a higher brightness level than other displays, our superb quality displays provide our customers with crisp, legible content delivery in various ambient lighting conditions.
No Ventilation Needed
The ad notam screen requires no ventilation due to low voltage operation and external positioning of the power adaptor.
Low Voltage Safety Product
ad notam screens are low voltage products (DC 12V or 24V) and therfore safe for operation in bathroom environment. All of our displays are equipped with external power supply. This facilitates service & regulates heat sync.
Flush Fitted Display
ad notam`s direct-on-glass (DOG) mounting system enables gapless installation between the mirror and the screen, resulting in a crystal clear picture. Competitive models often have a gap between the mirror and the screen resulting in a poor image quality with reduced lifetime.
Ultra High Definition & Clarity
Immerse yourself in the details with our 4K UHD magnificent picture clarity that is four times the resolution of regular HD.
Real Color Index
Unlike other TV mirrors, all our products come with a Real Color Index. The authenticity of colors is not distorted. This applies for both: how you see yourself in the mirror and what you watch inside the display.
Access Contents Immediately
All ad notam products do come with an Instant On option, which can be activated via the screen menu. This feature ensures that the screen will come on instantly once powered on. This will show your favourite channel within 1-2 seconds after powered on, which is much faster than standard screens in the market taking up to 20 seconds to show an image.
Auto Signal Detection
With the Input Scan setting you can activate the automatic detection of connected input sources, when they are switched on. This helps eliminating the need for turning on and off the screen, it will turn on automatically once your input source is playing an image - life is more convenient.
Tech Specs
Mirror
Thickness: 6 mm
Surface: Float
Tint: Silver
Reflection: 60 % +/- 5

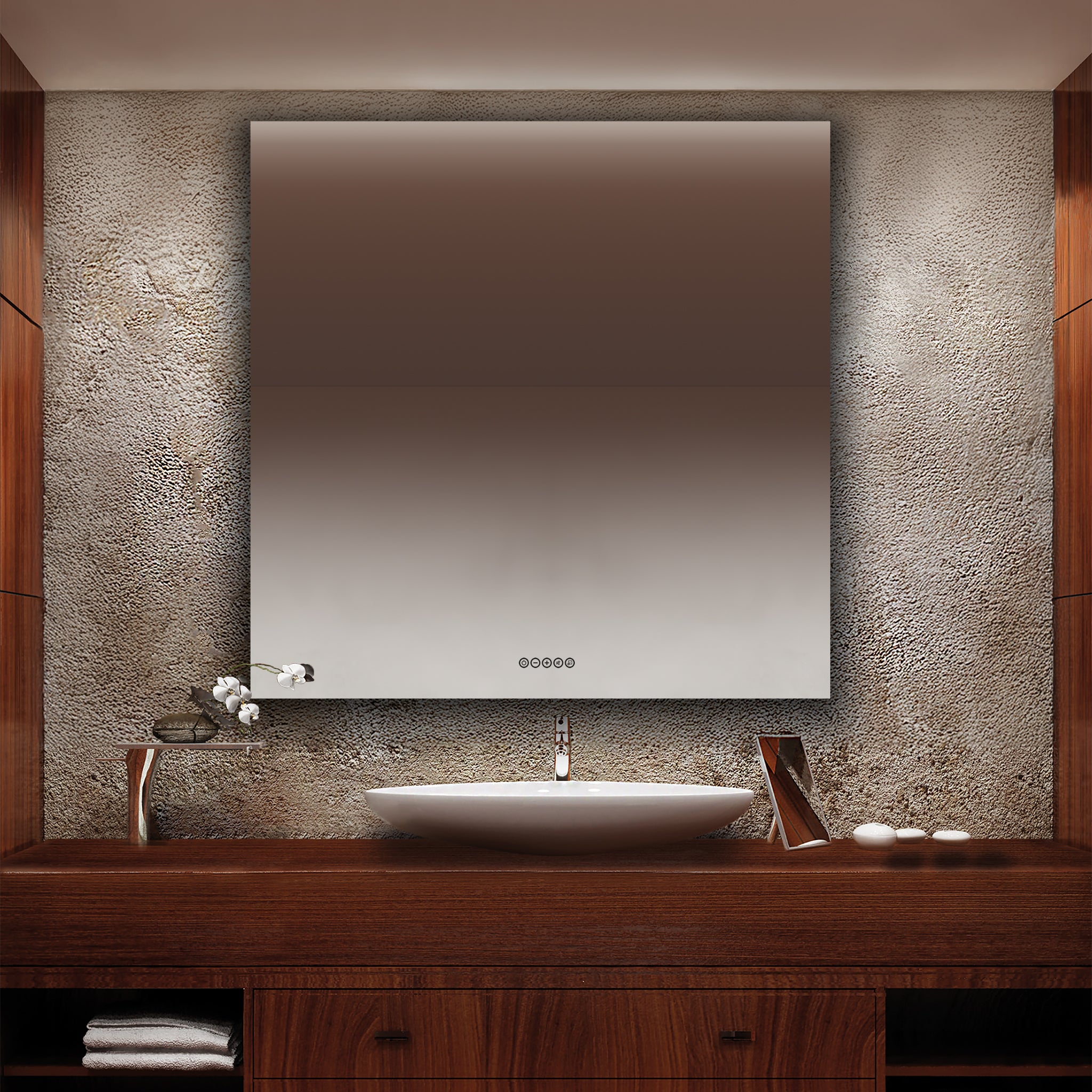

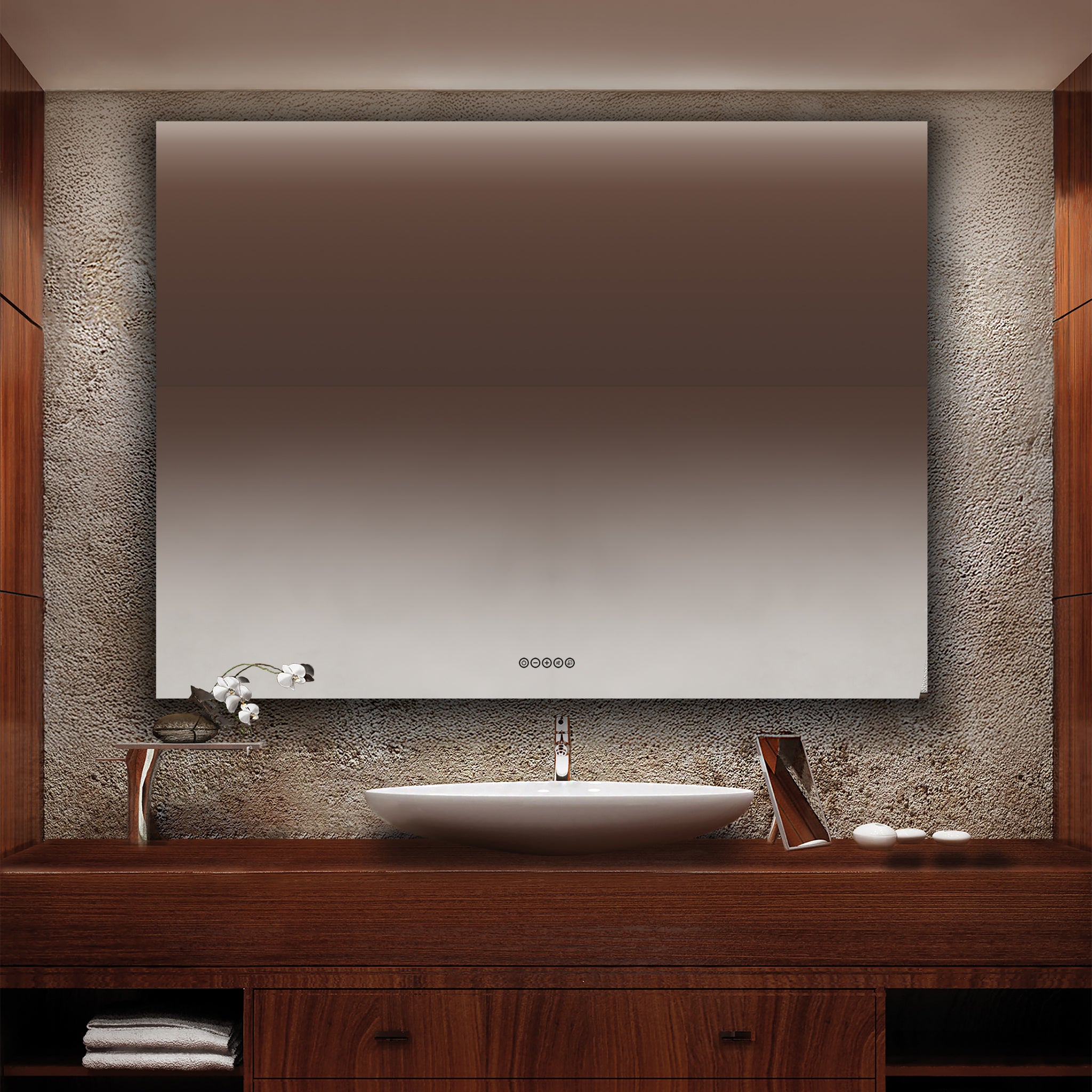

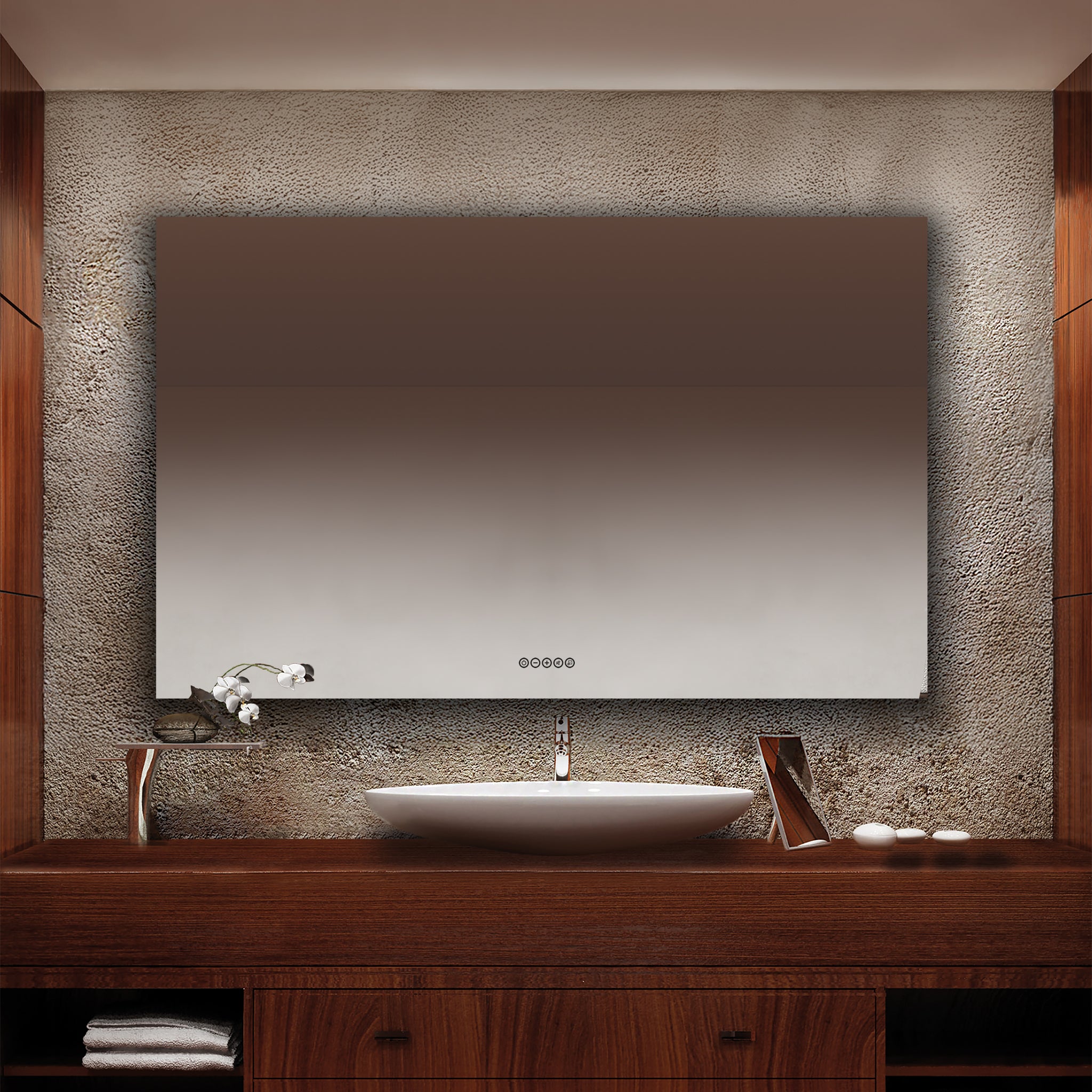

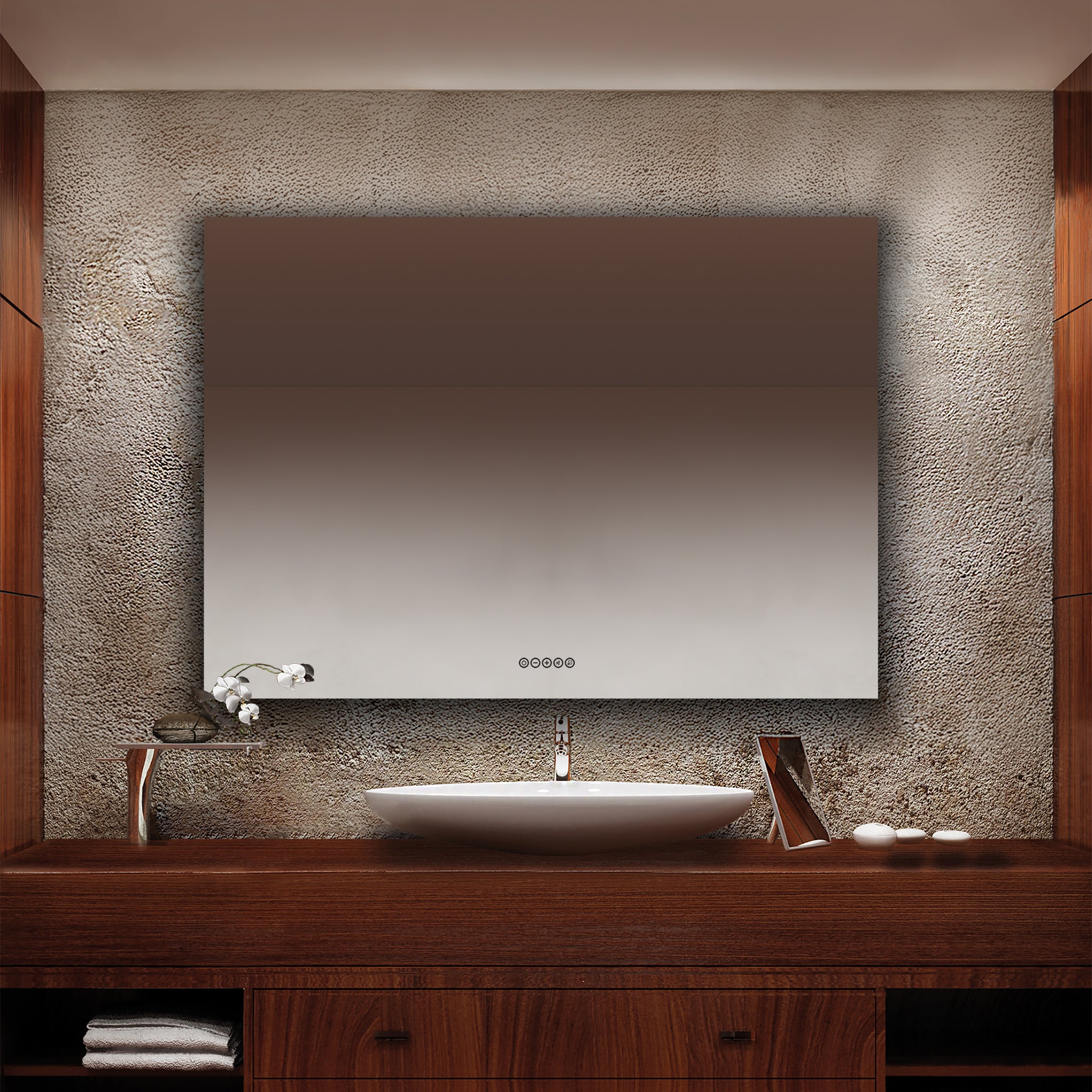

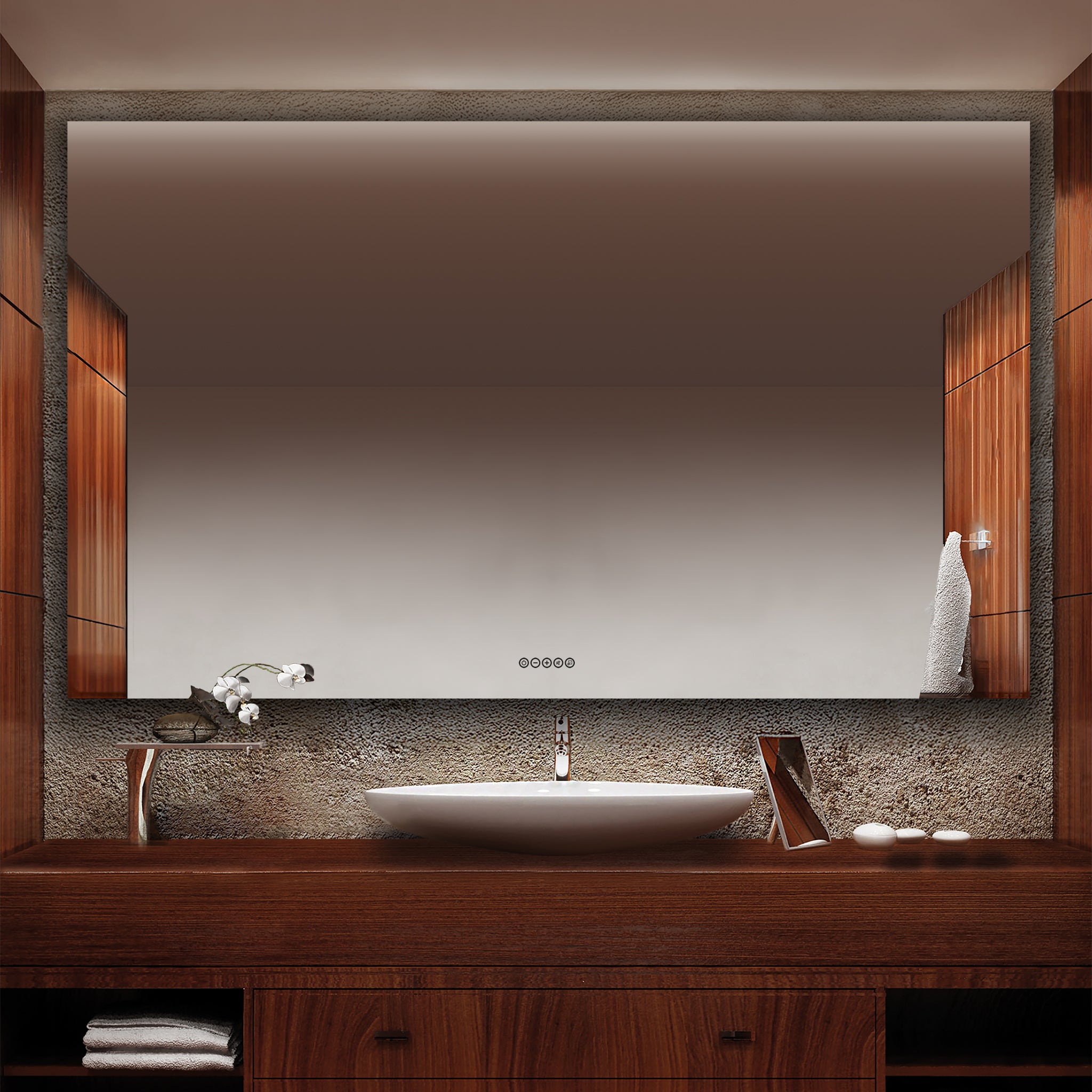

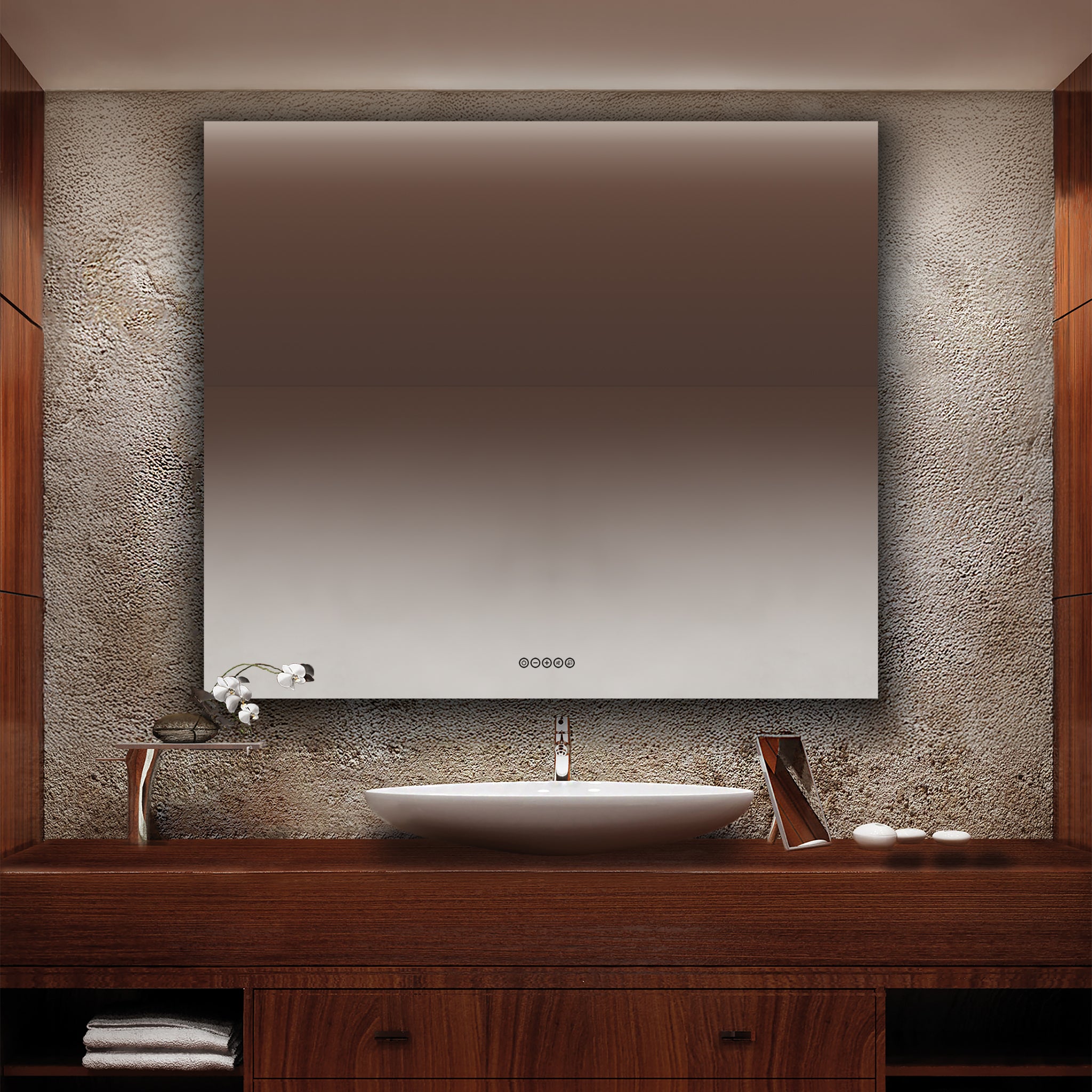

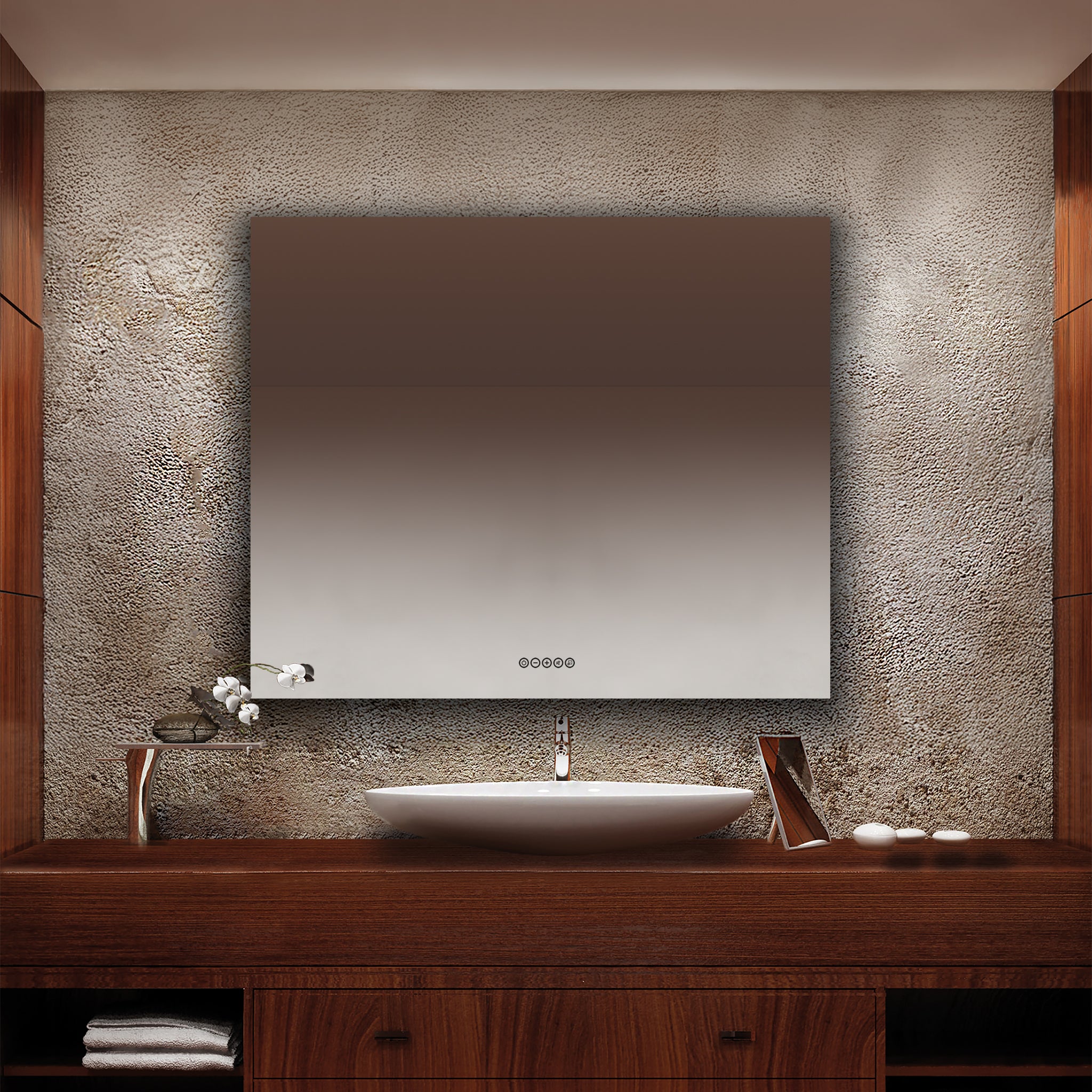

Display area, when switched off: Invisible
Display
Screen Size: 32.0'' (801 mm)

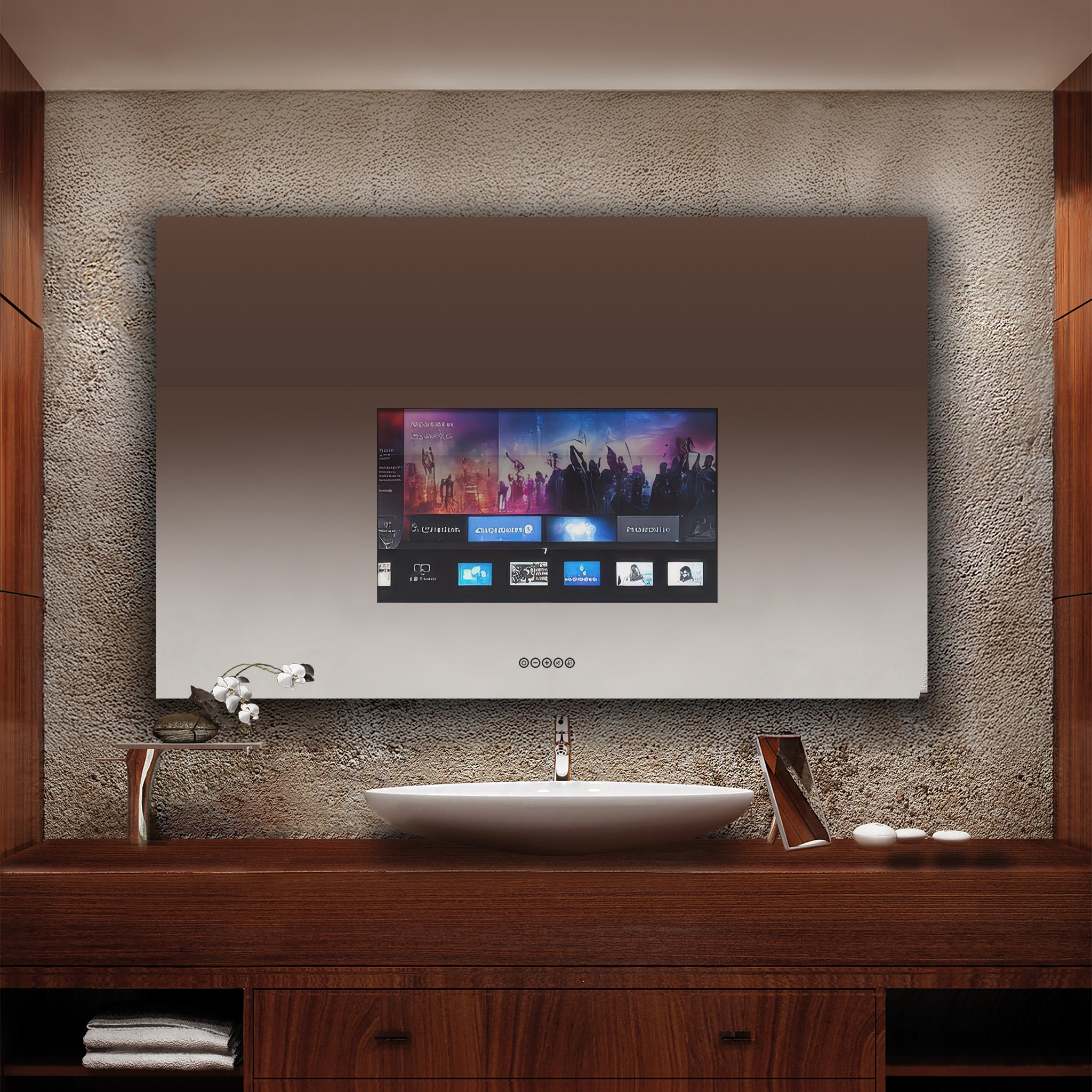

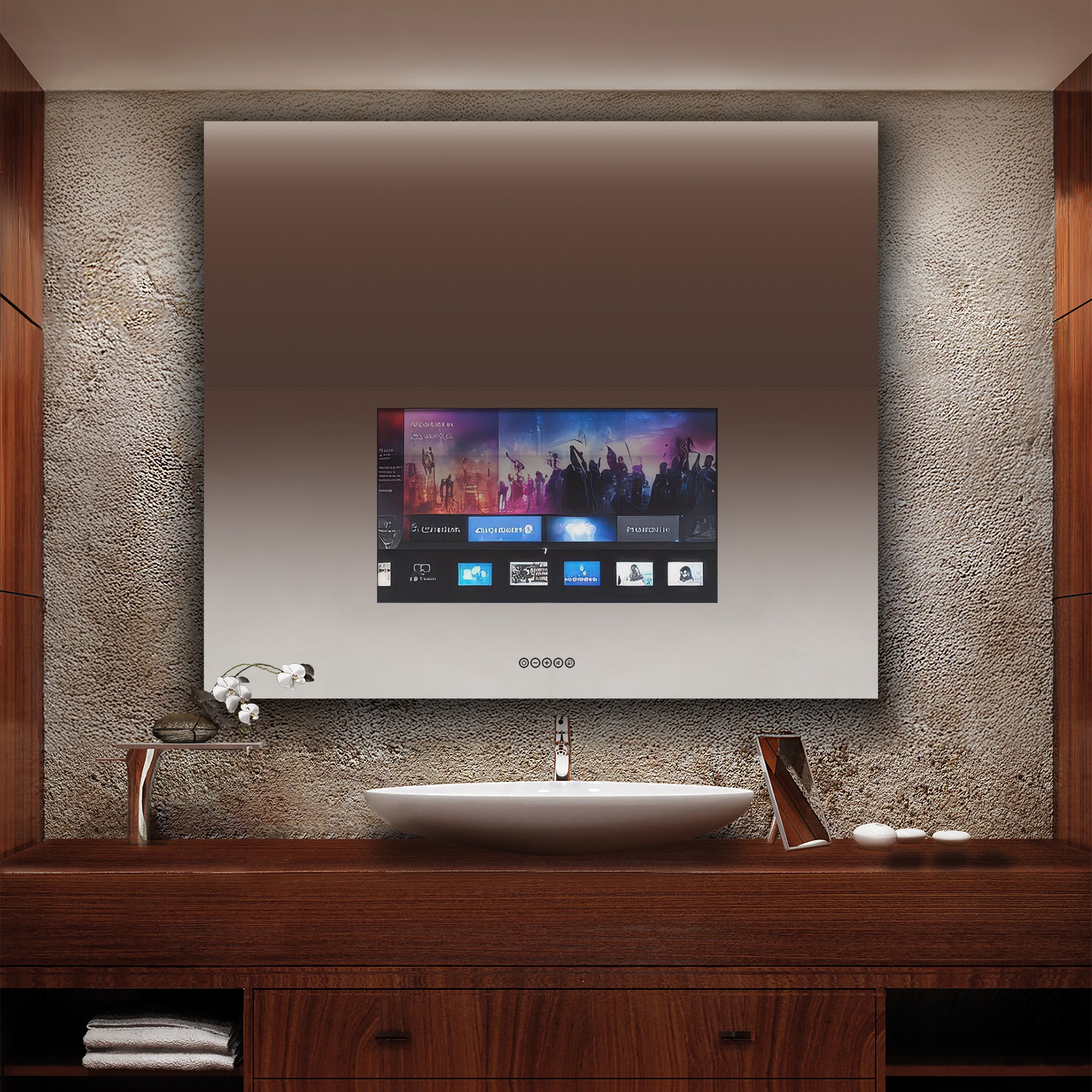

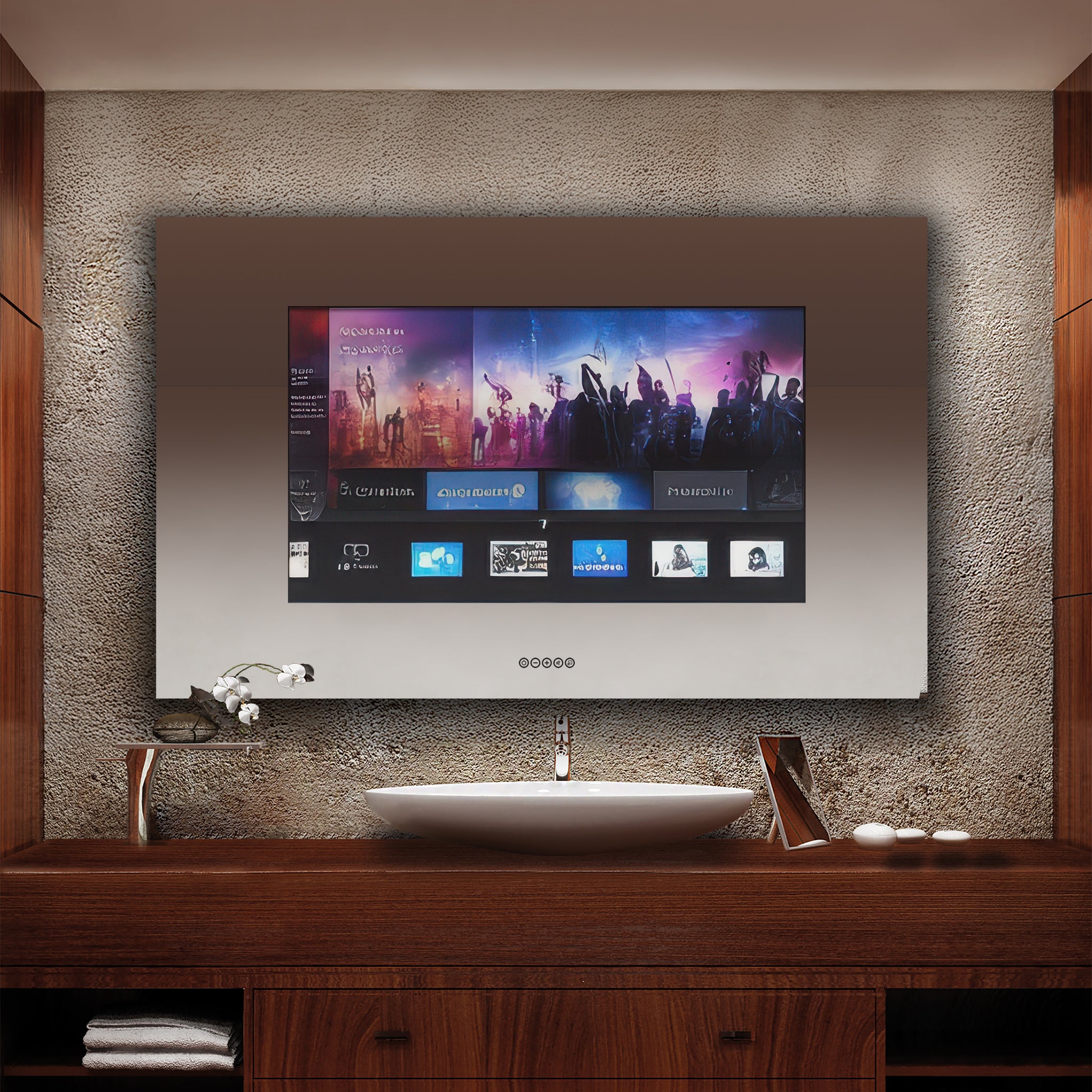

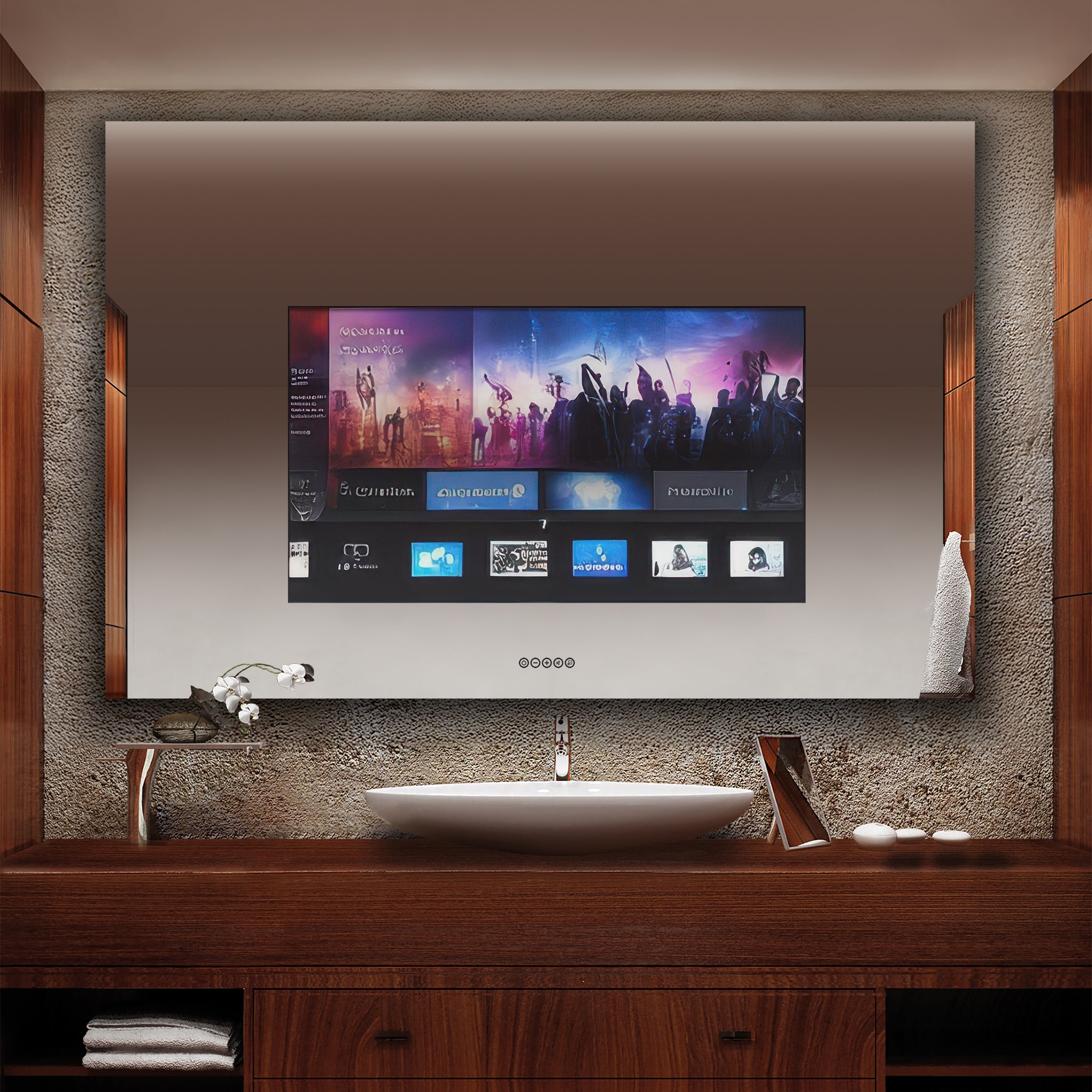

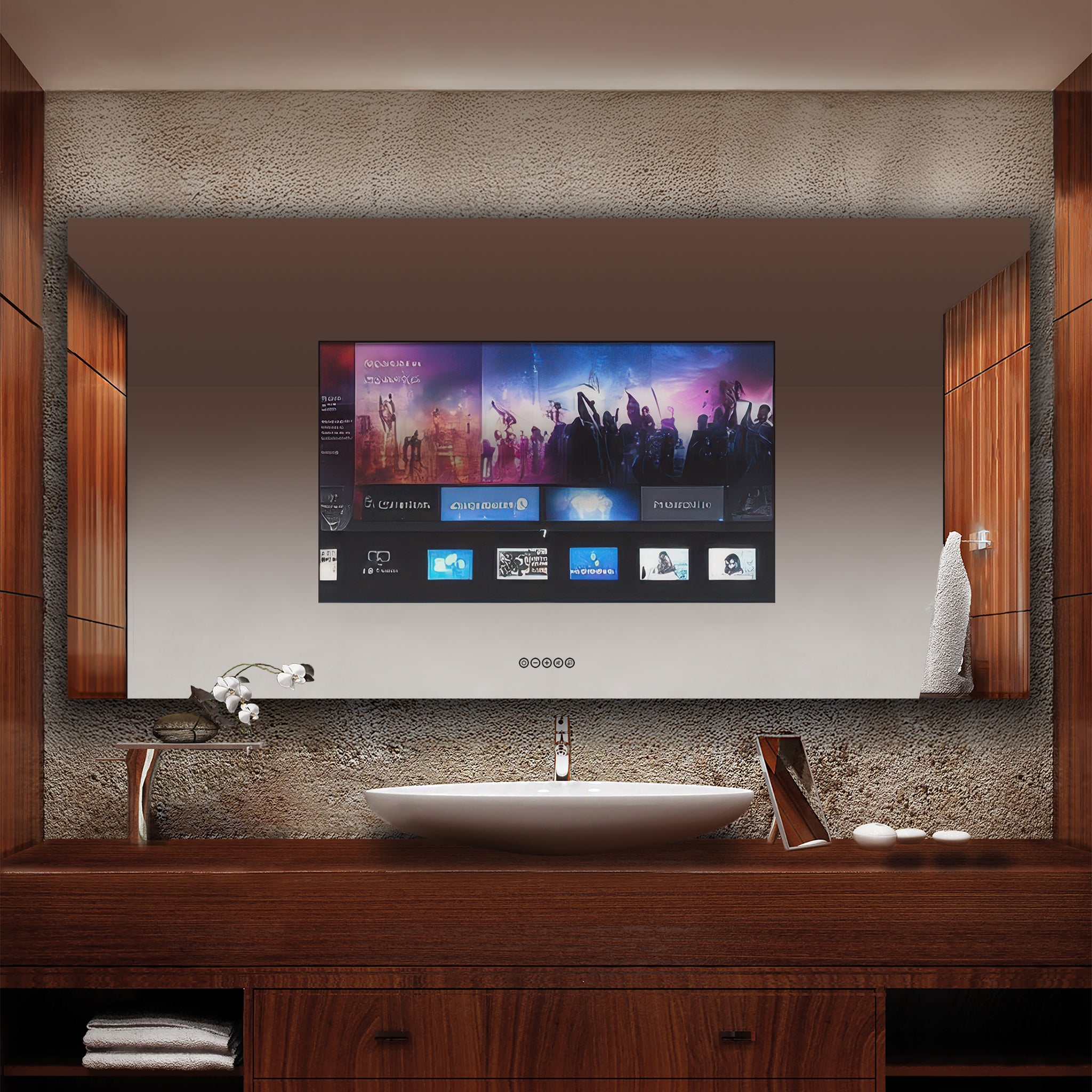

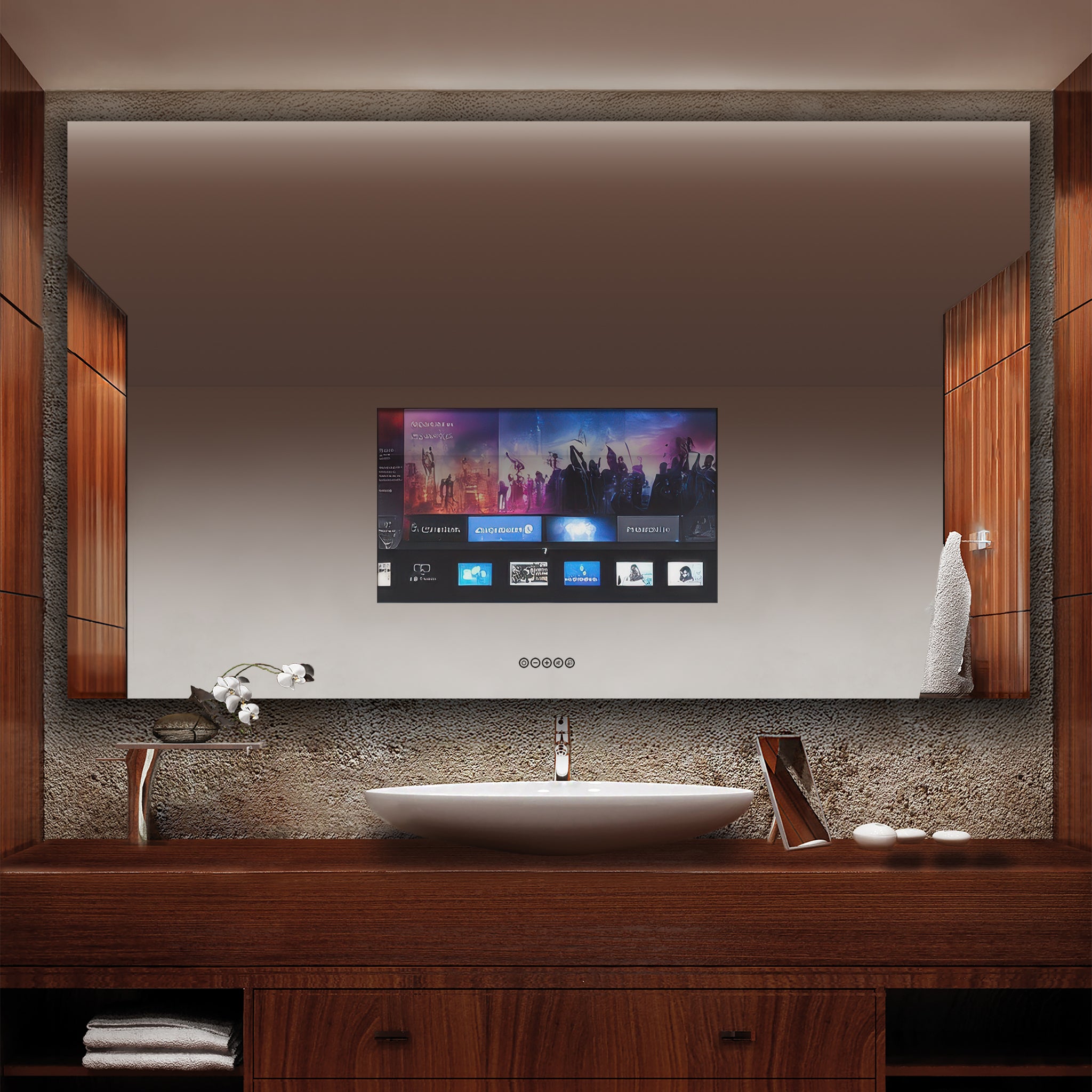

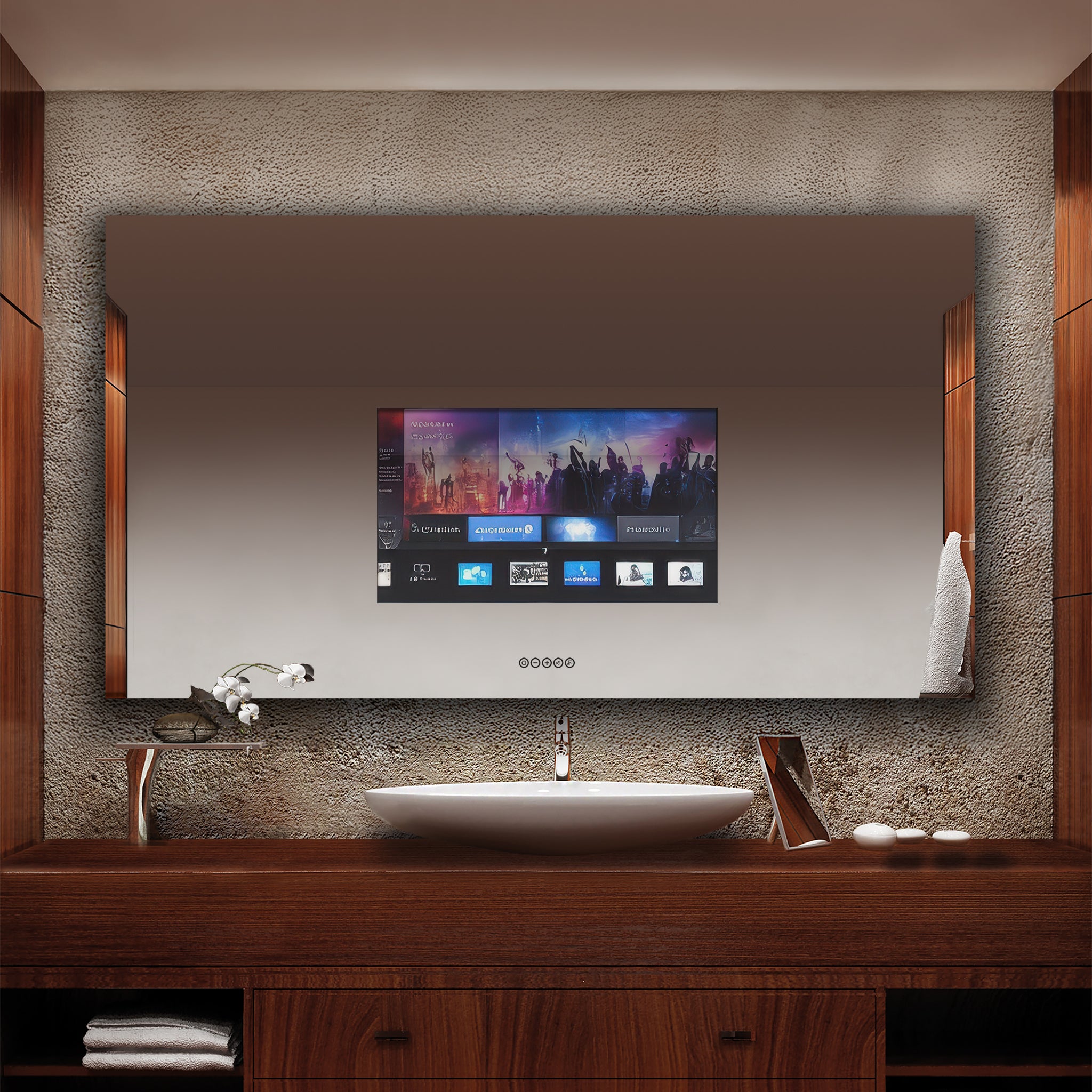

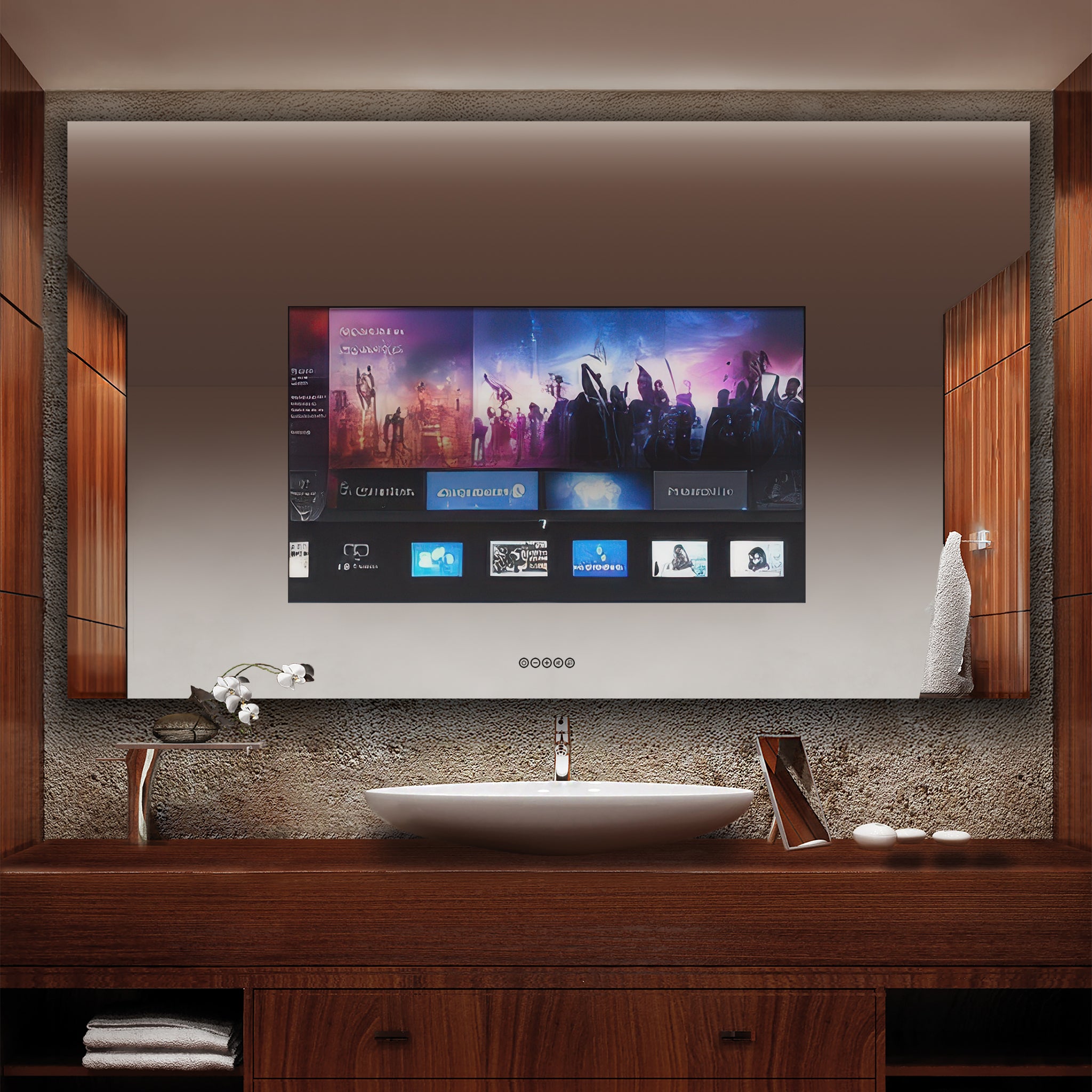

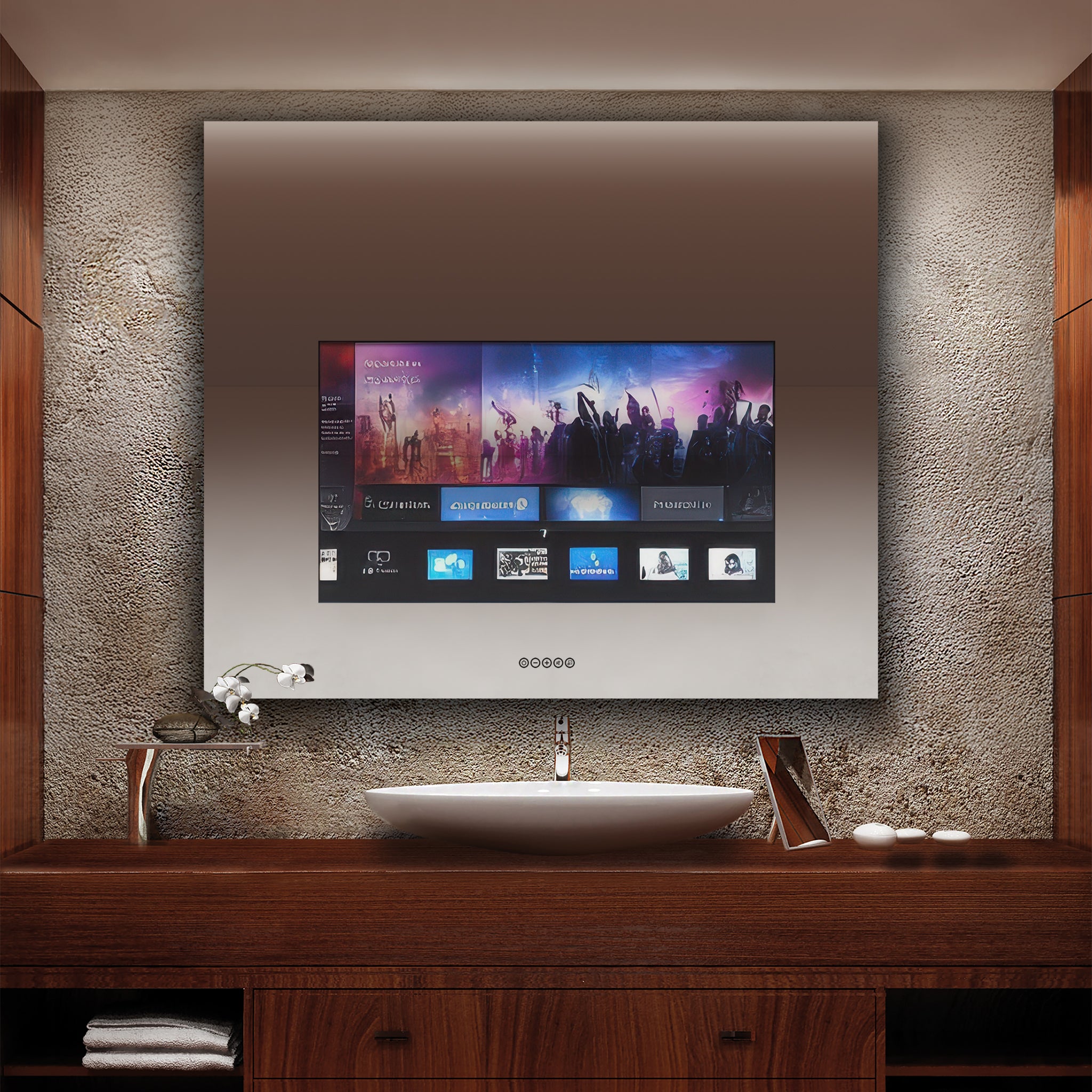

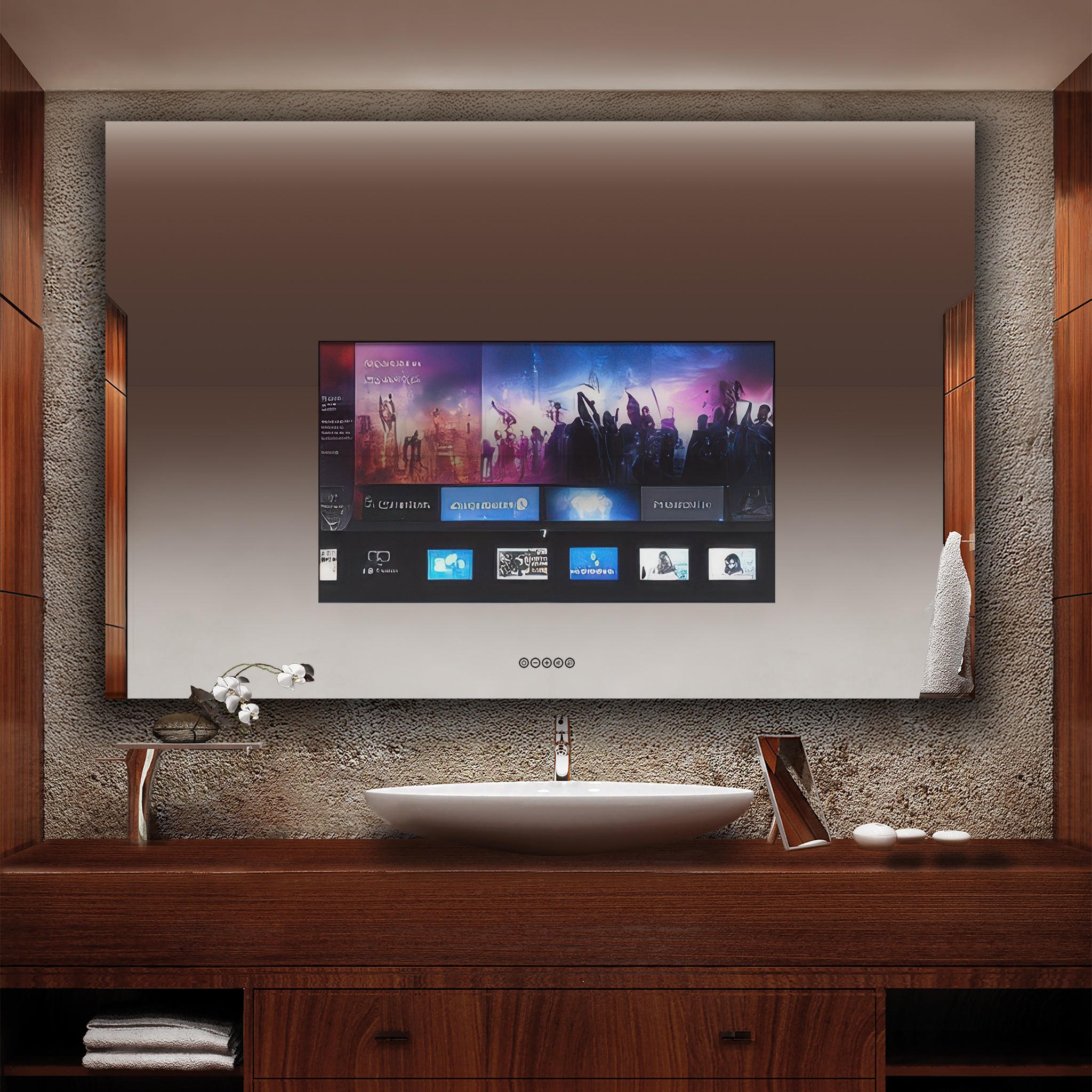

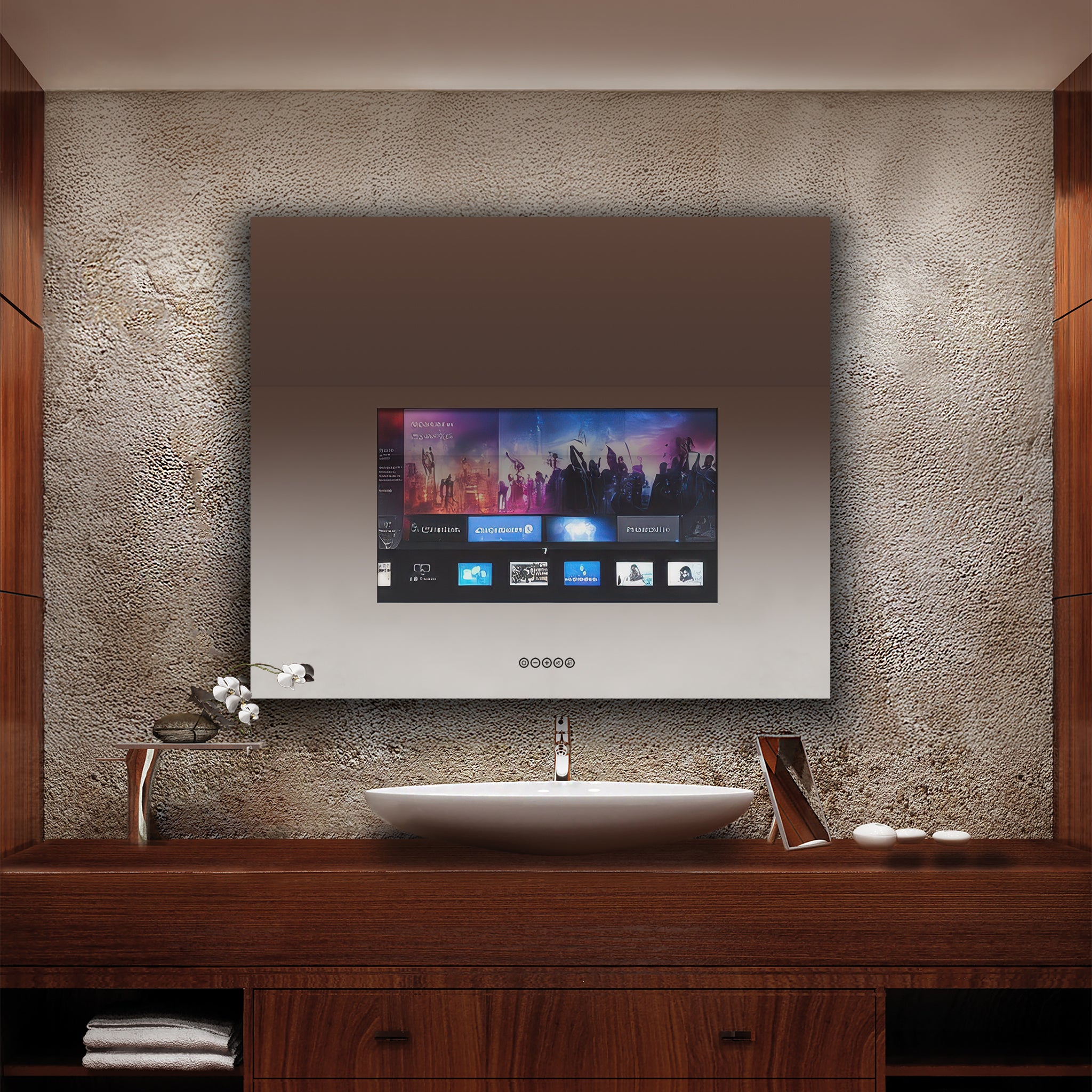

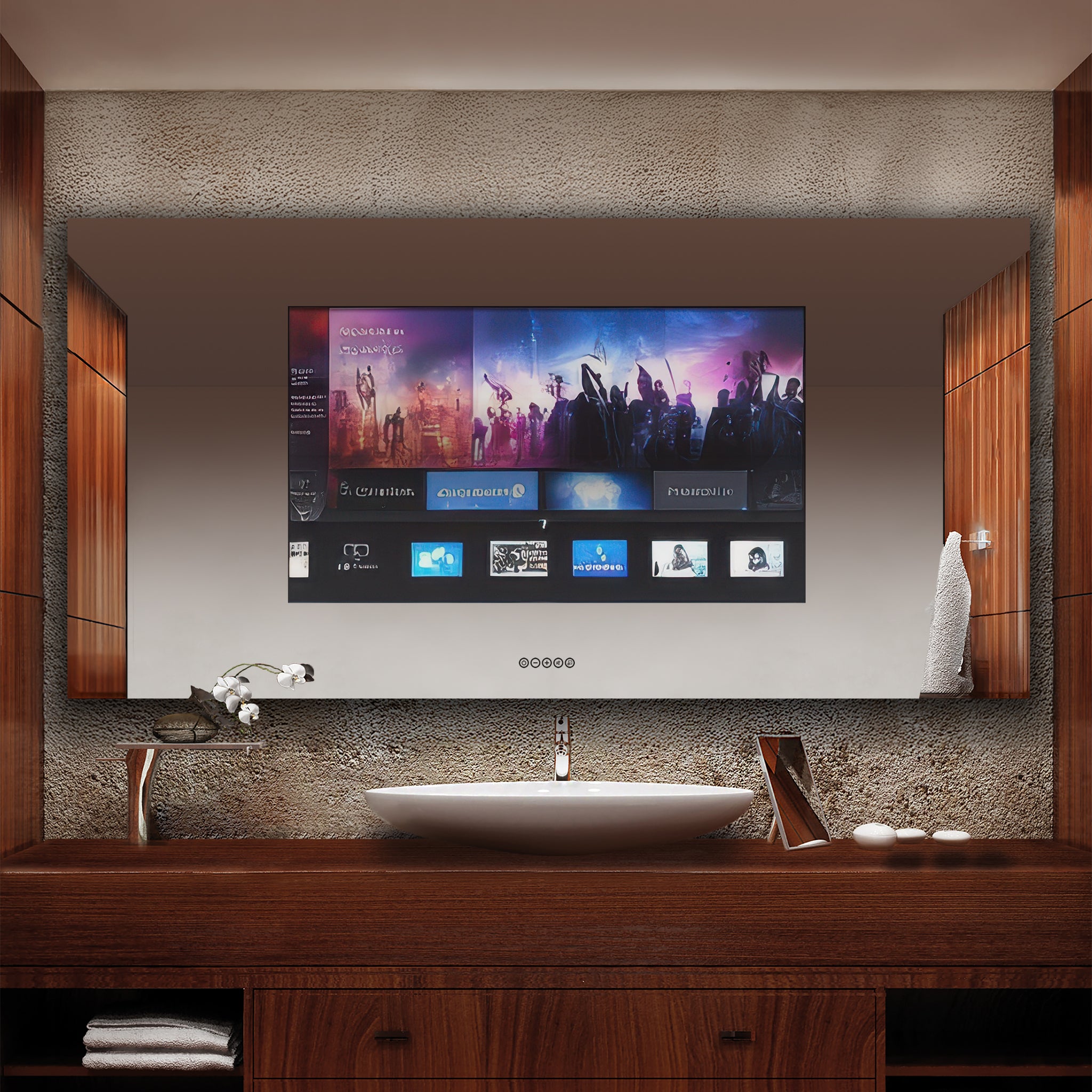

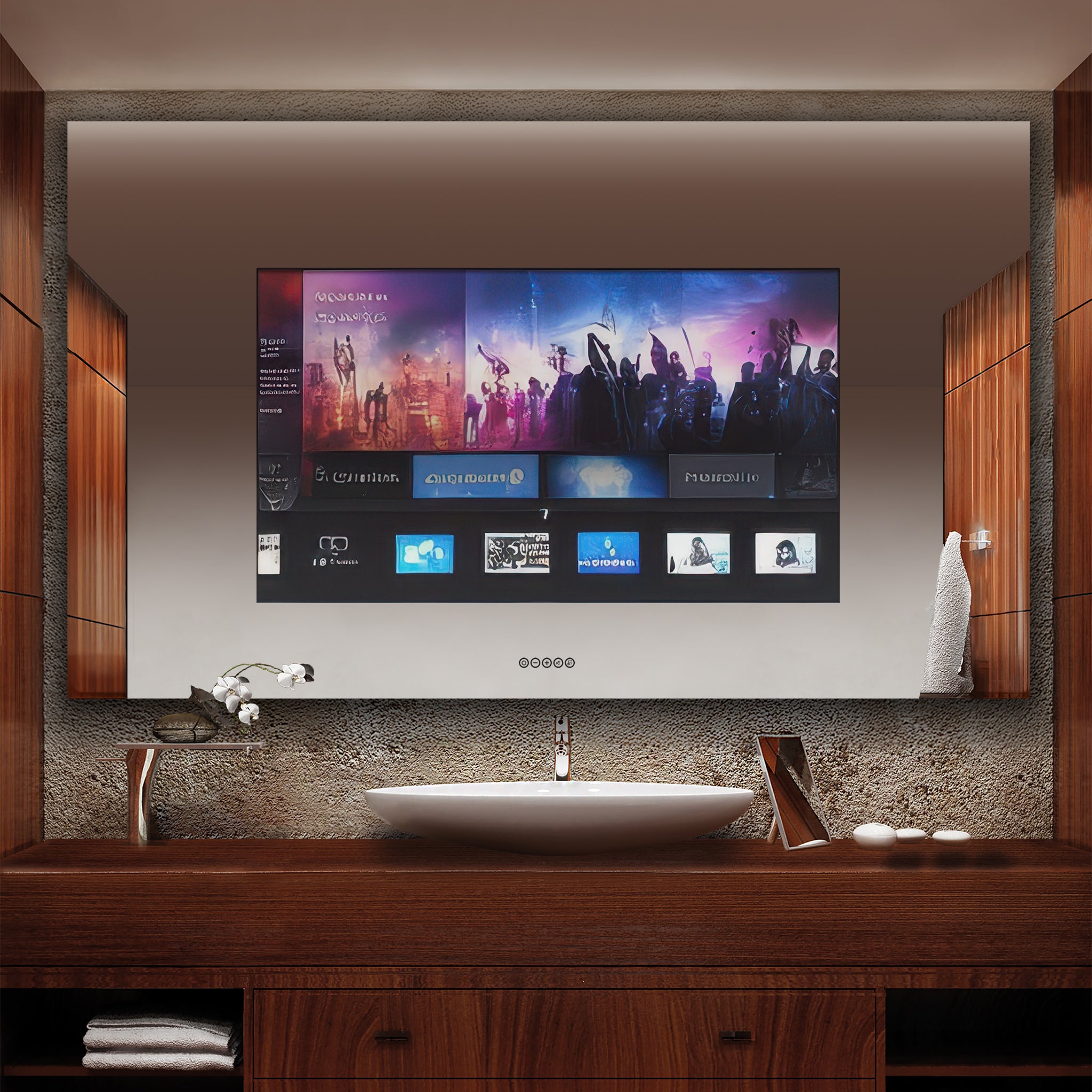

Full Screen: W 698 H 393 mm (32.0'' diagonale)

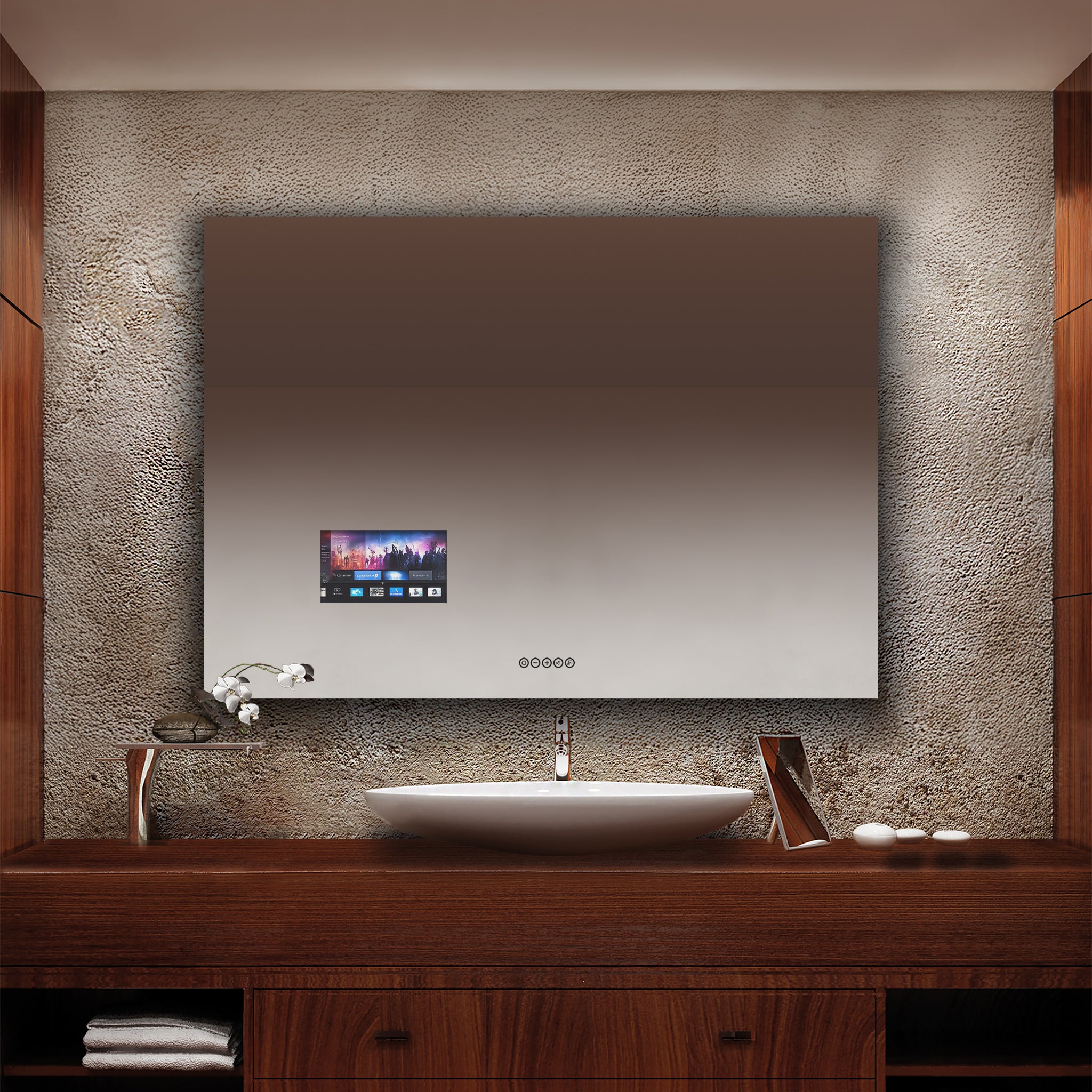

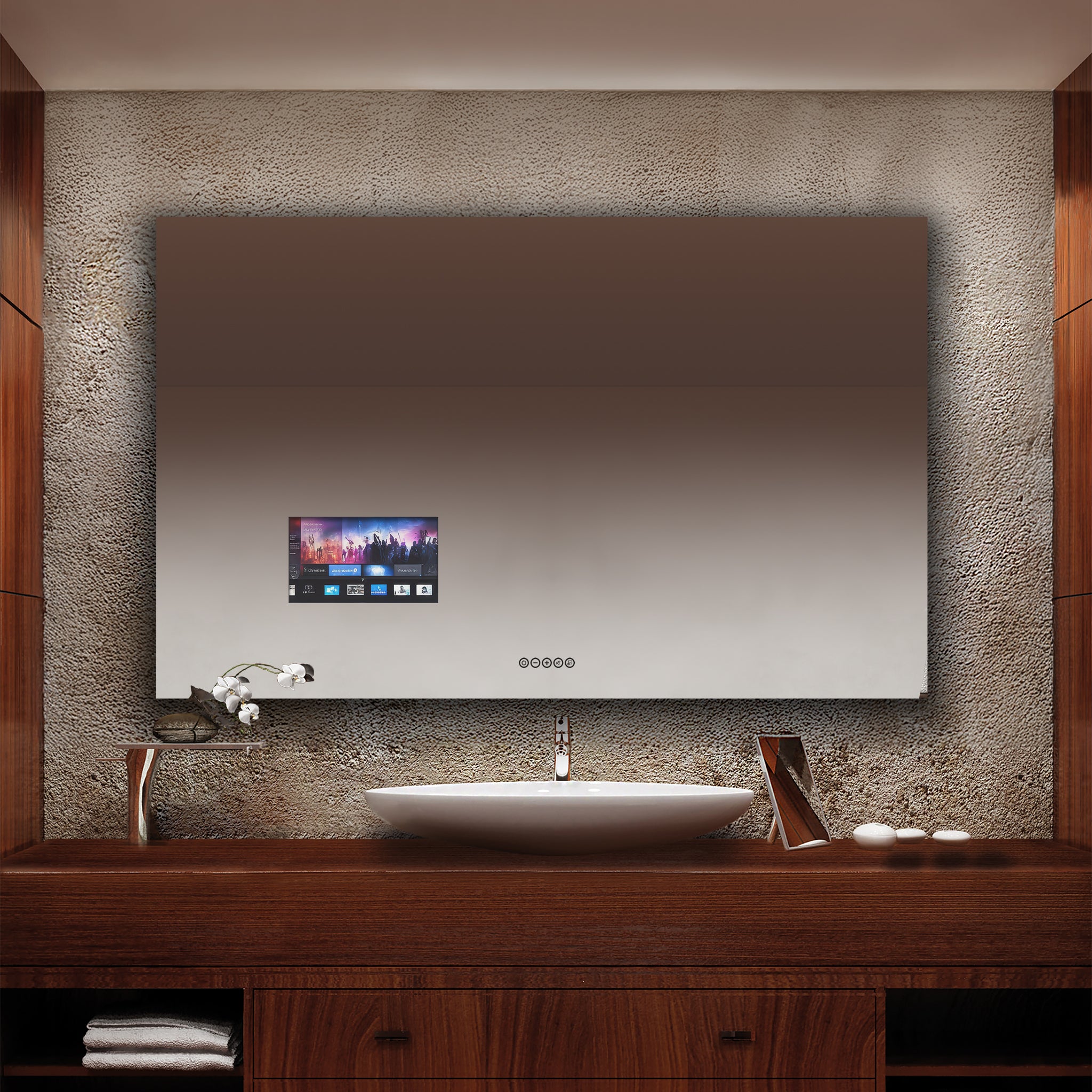

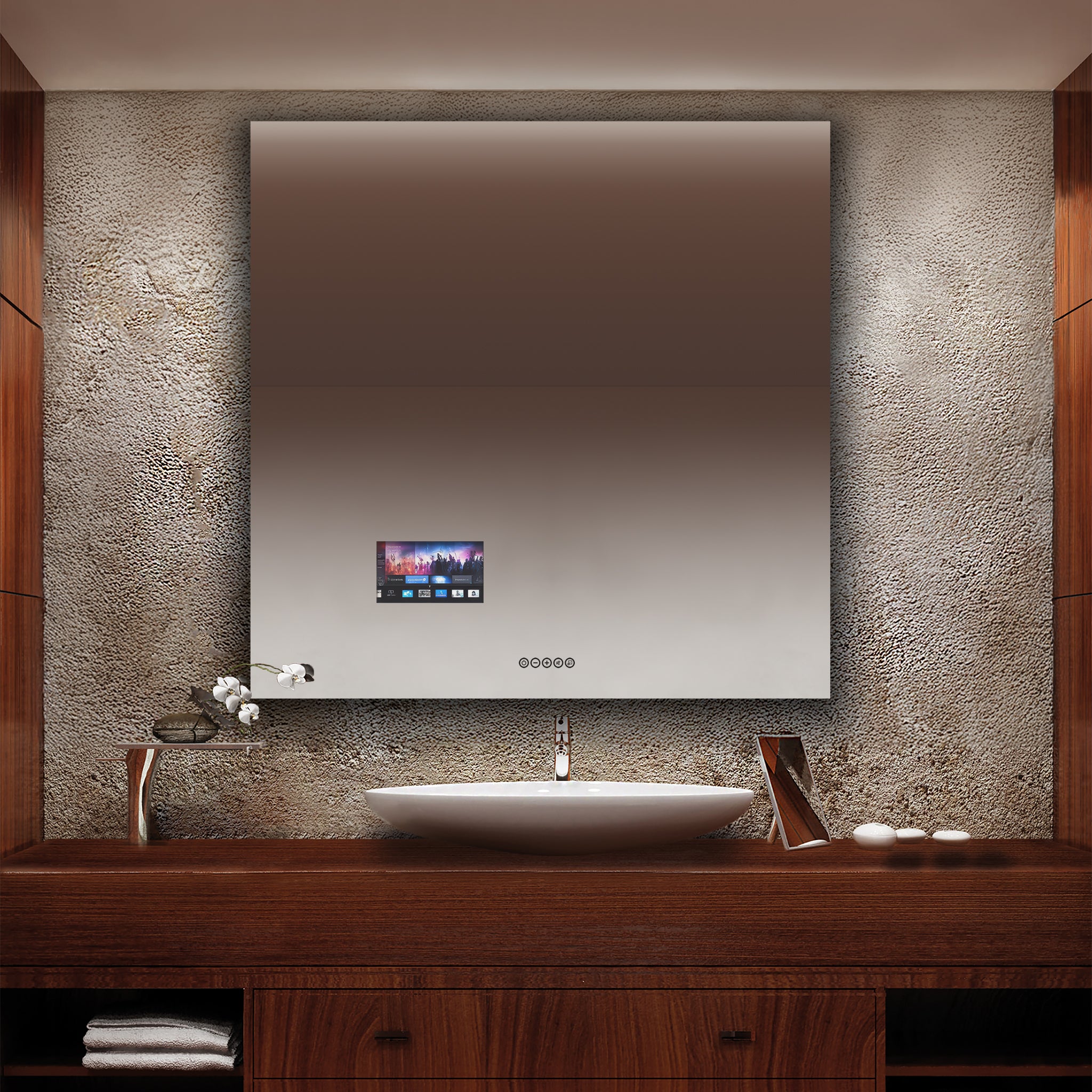

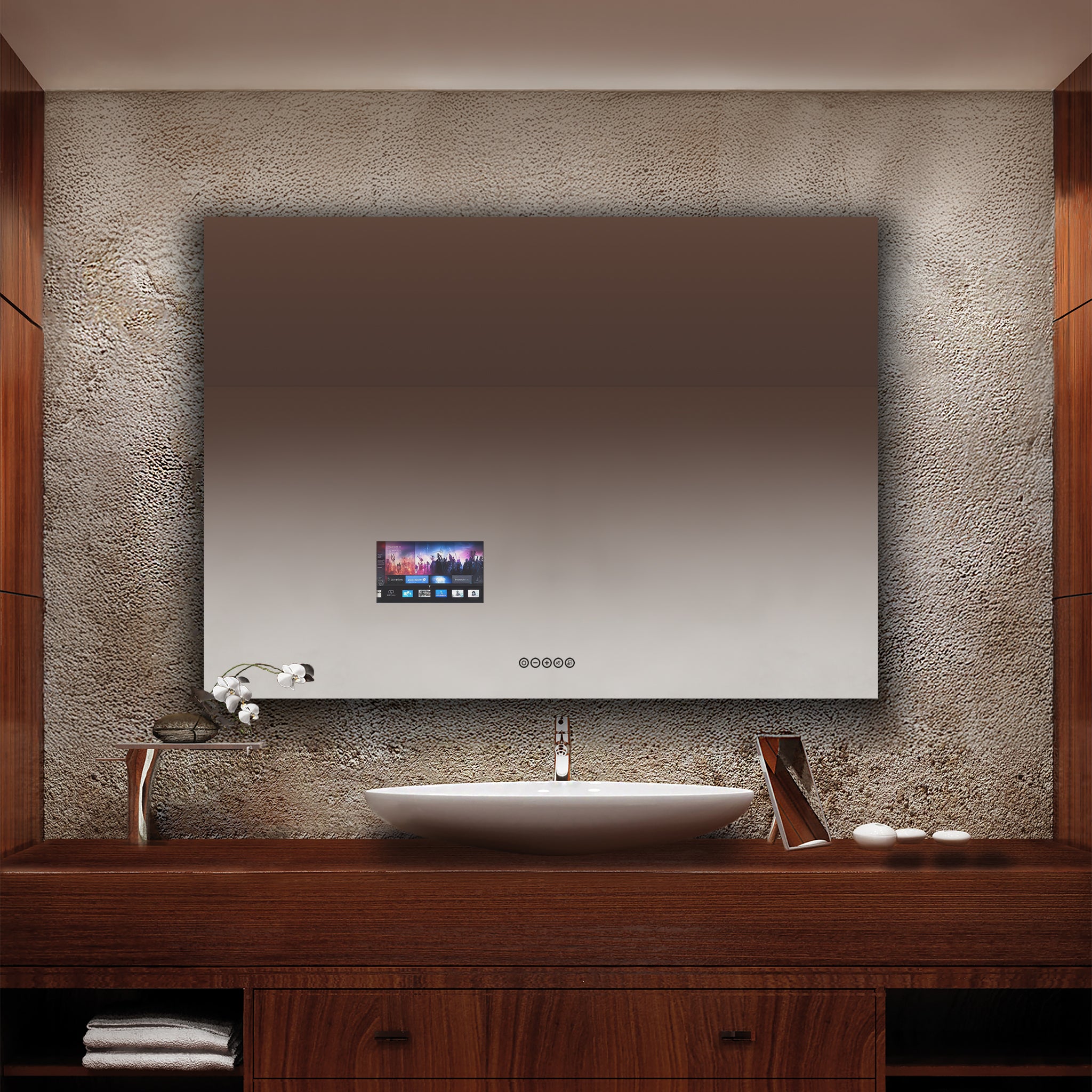

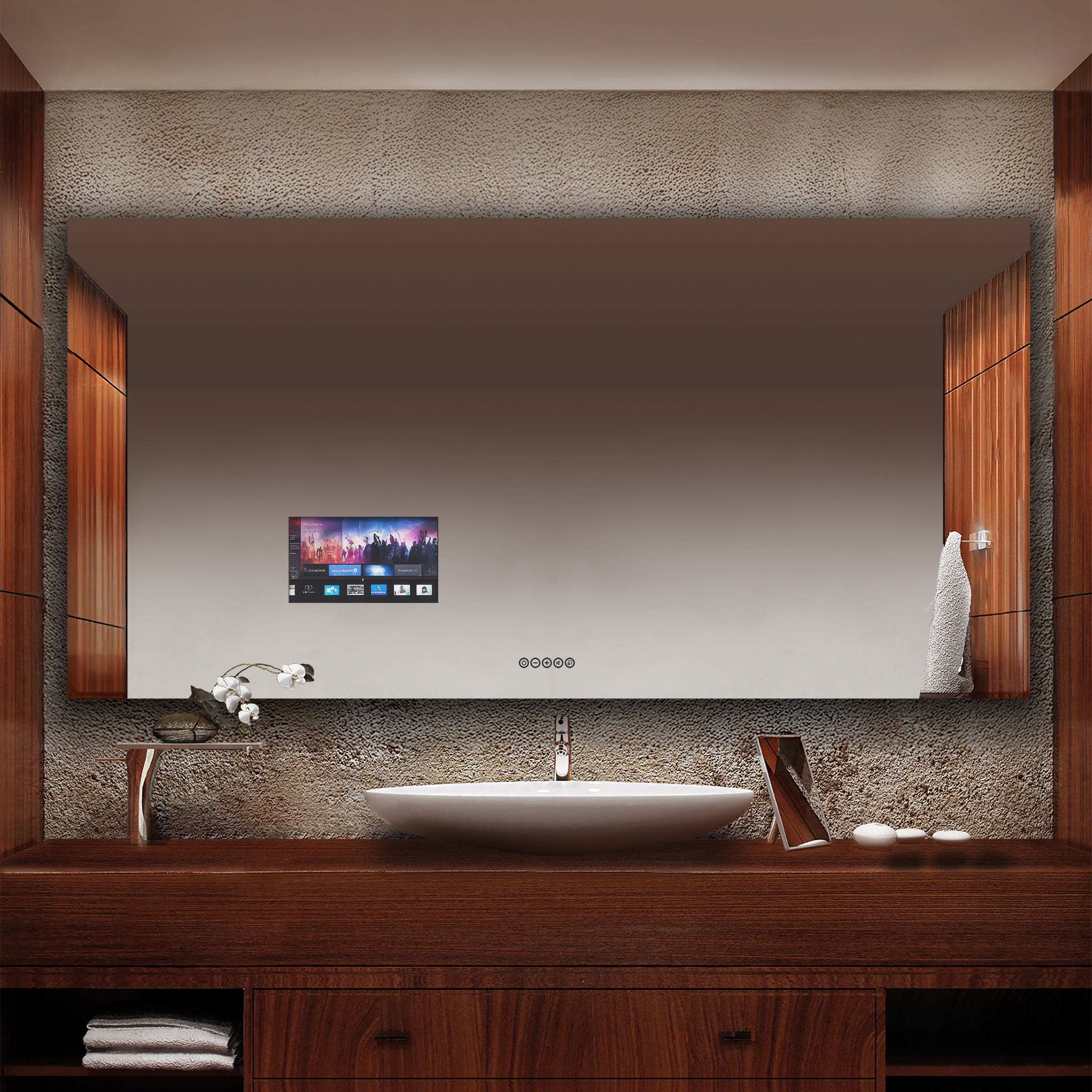

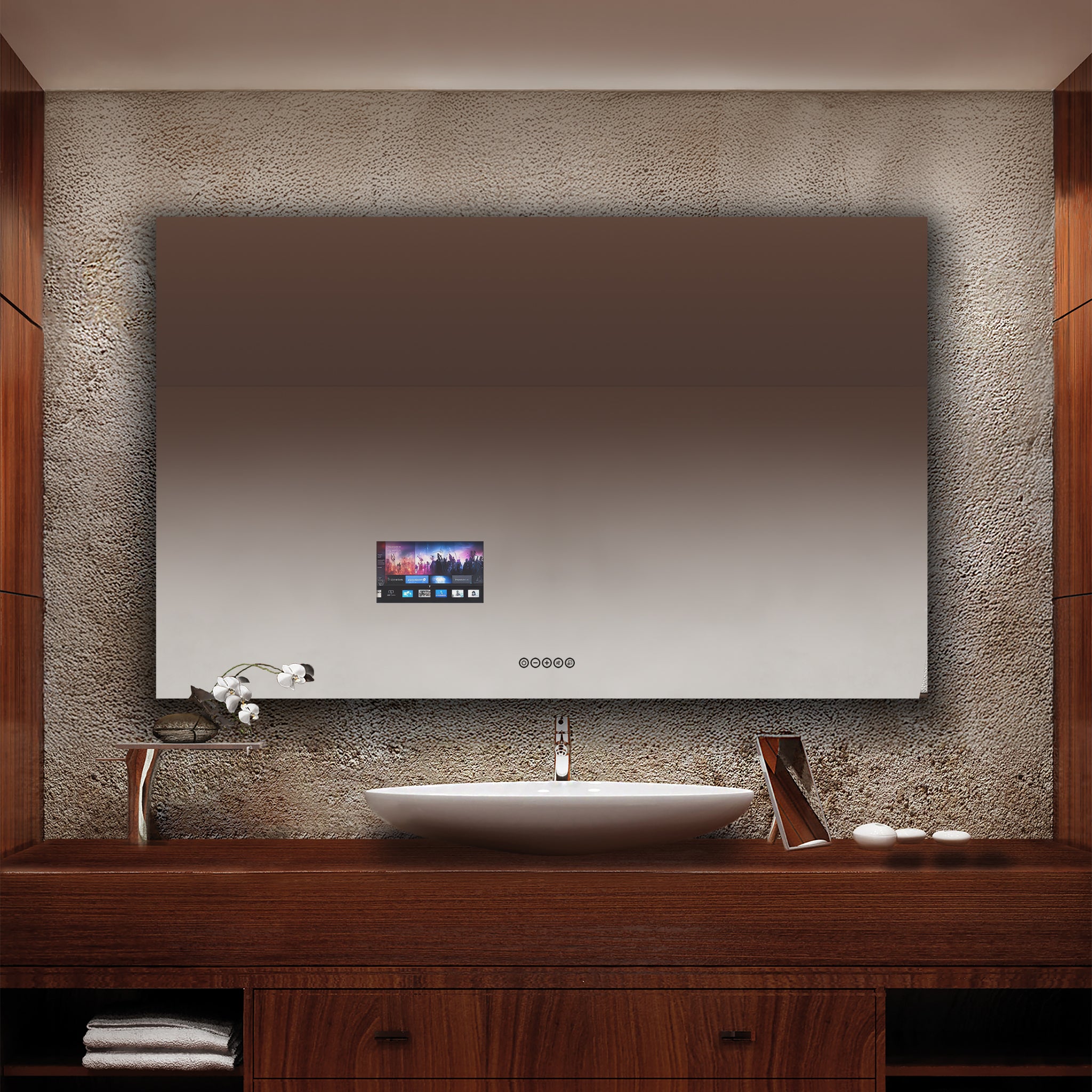

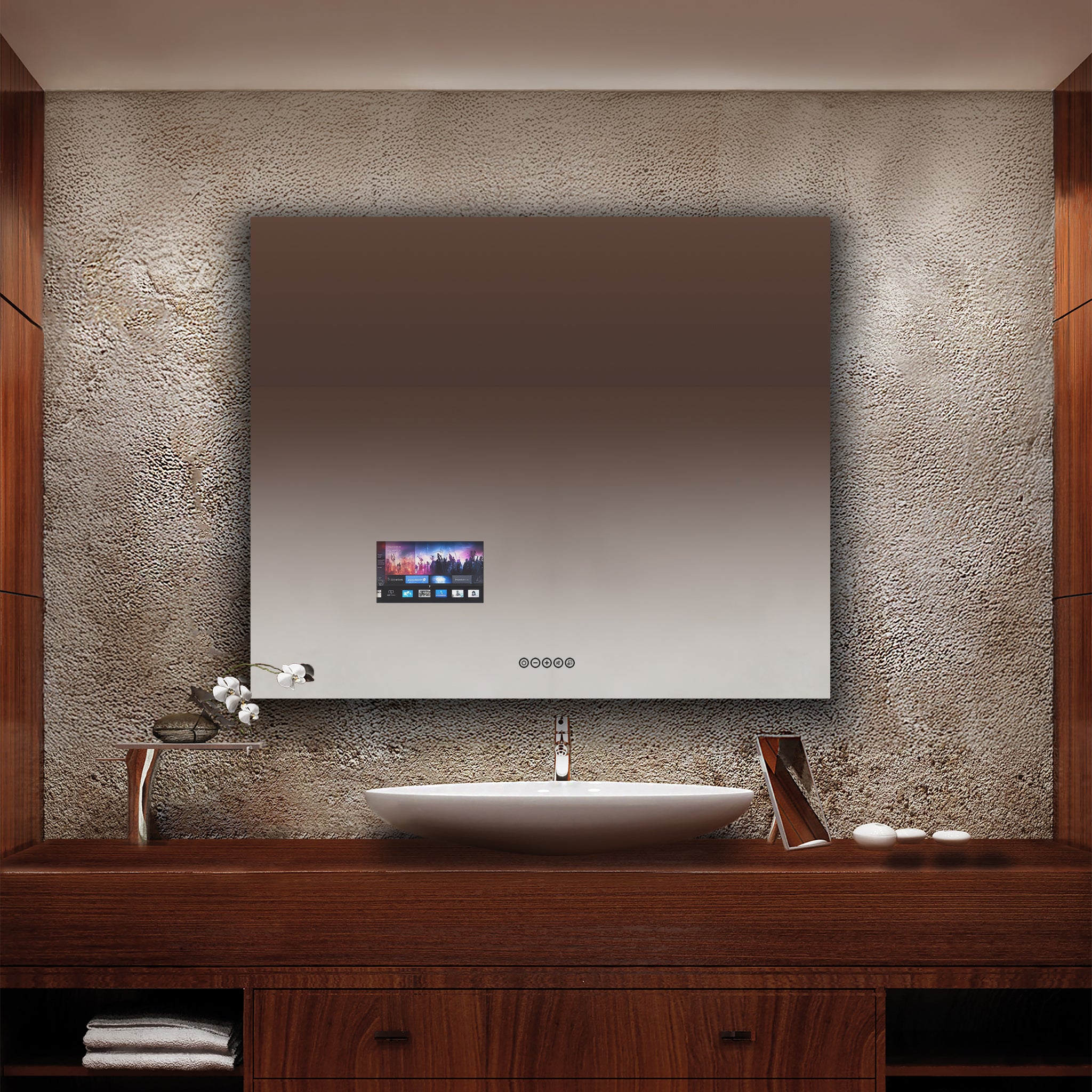

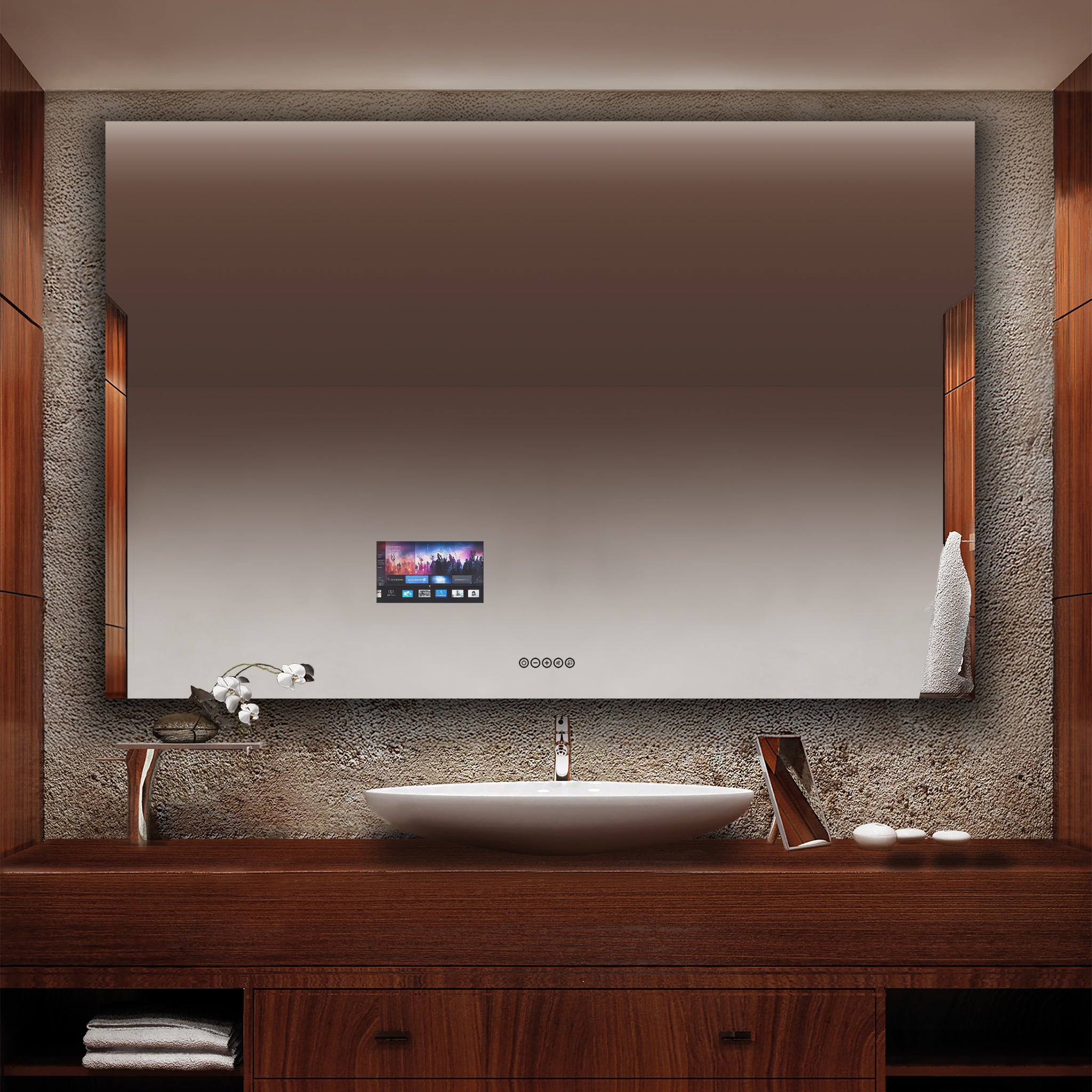

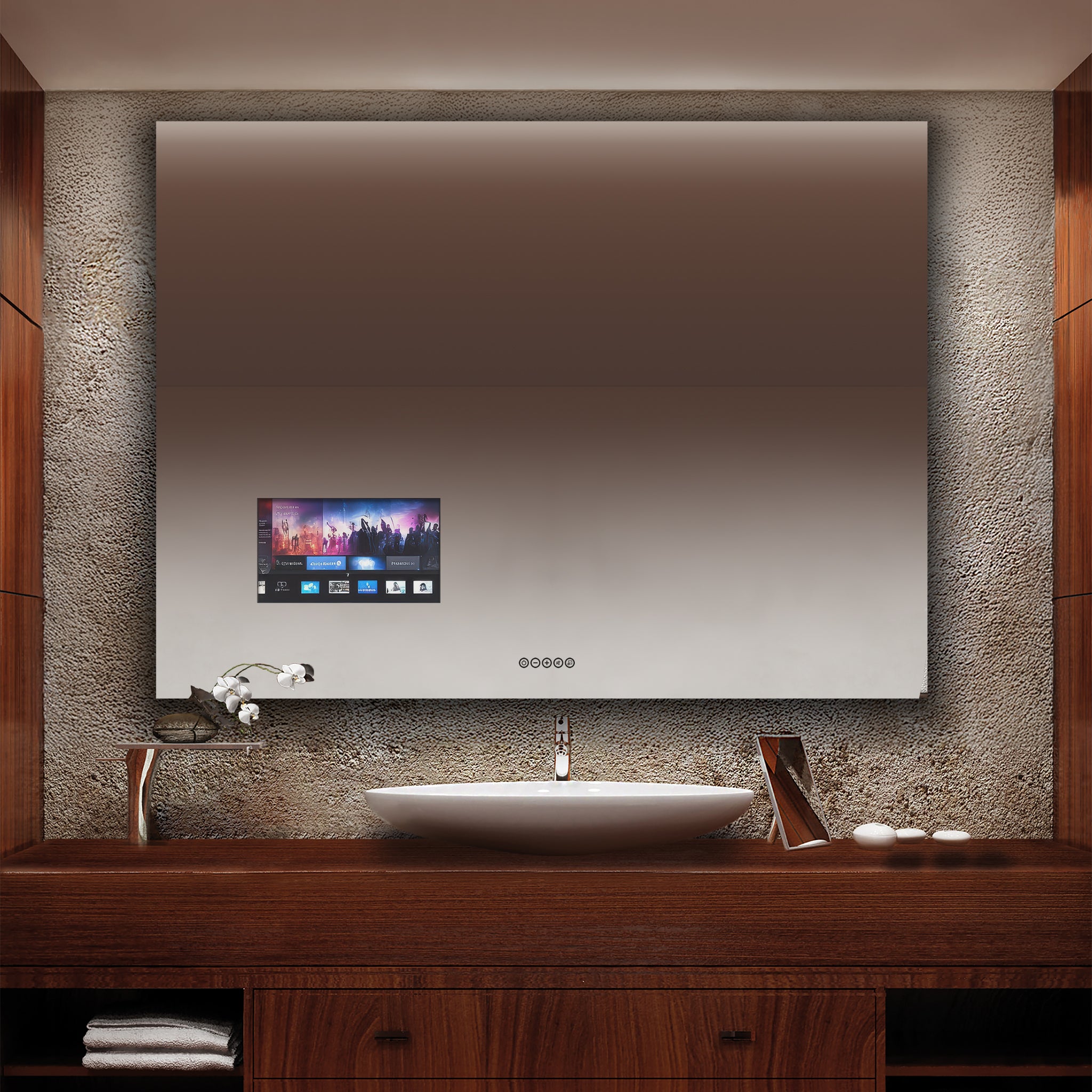

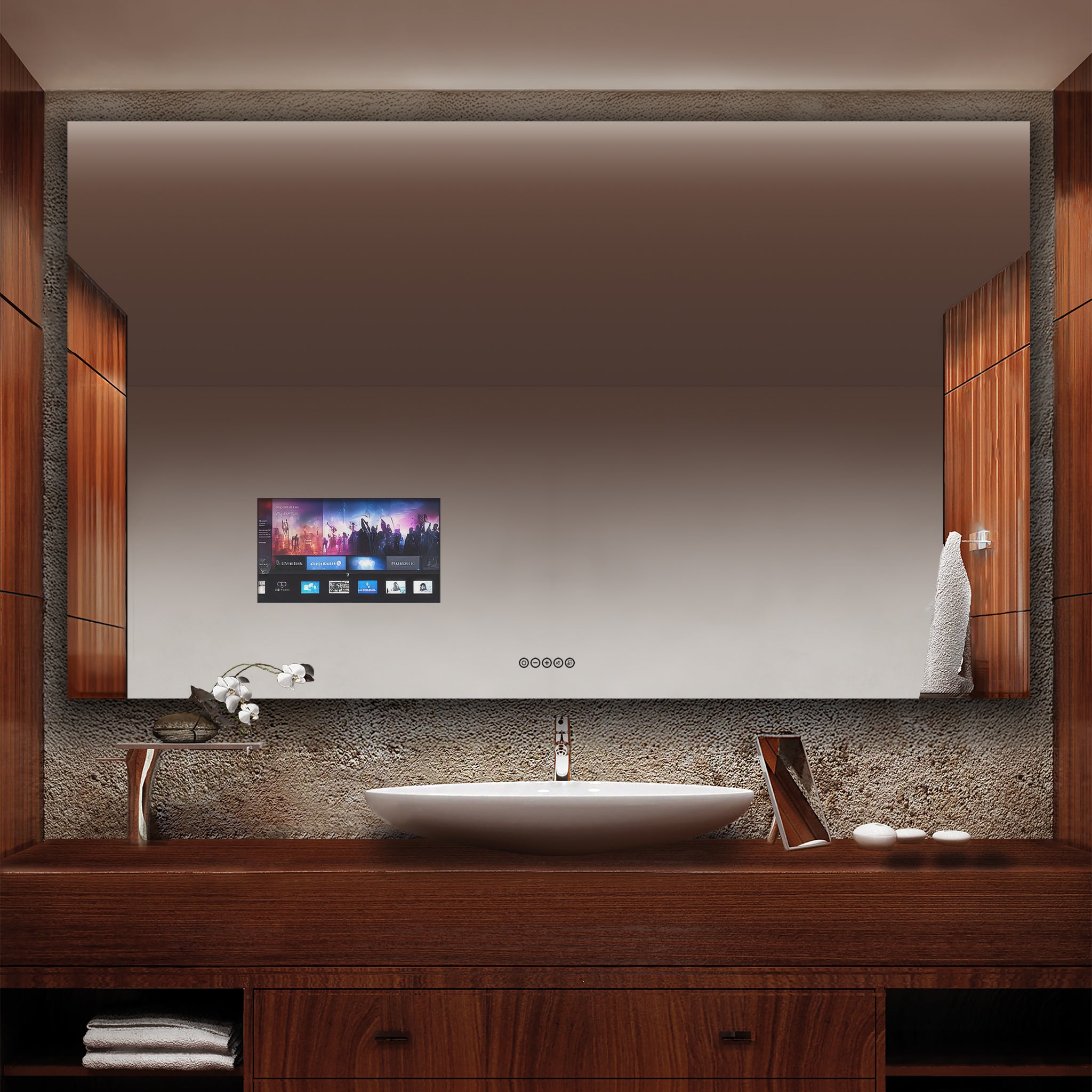

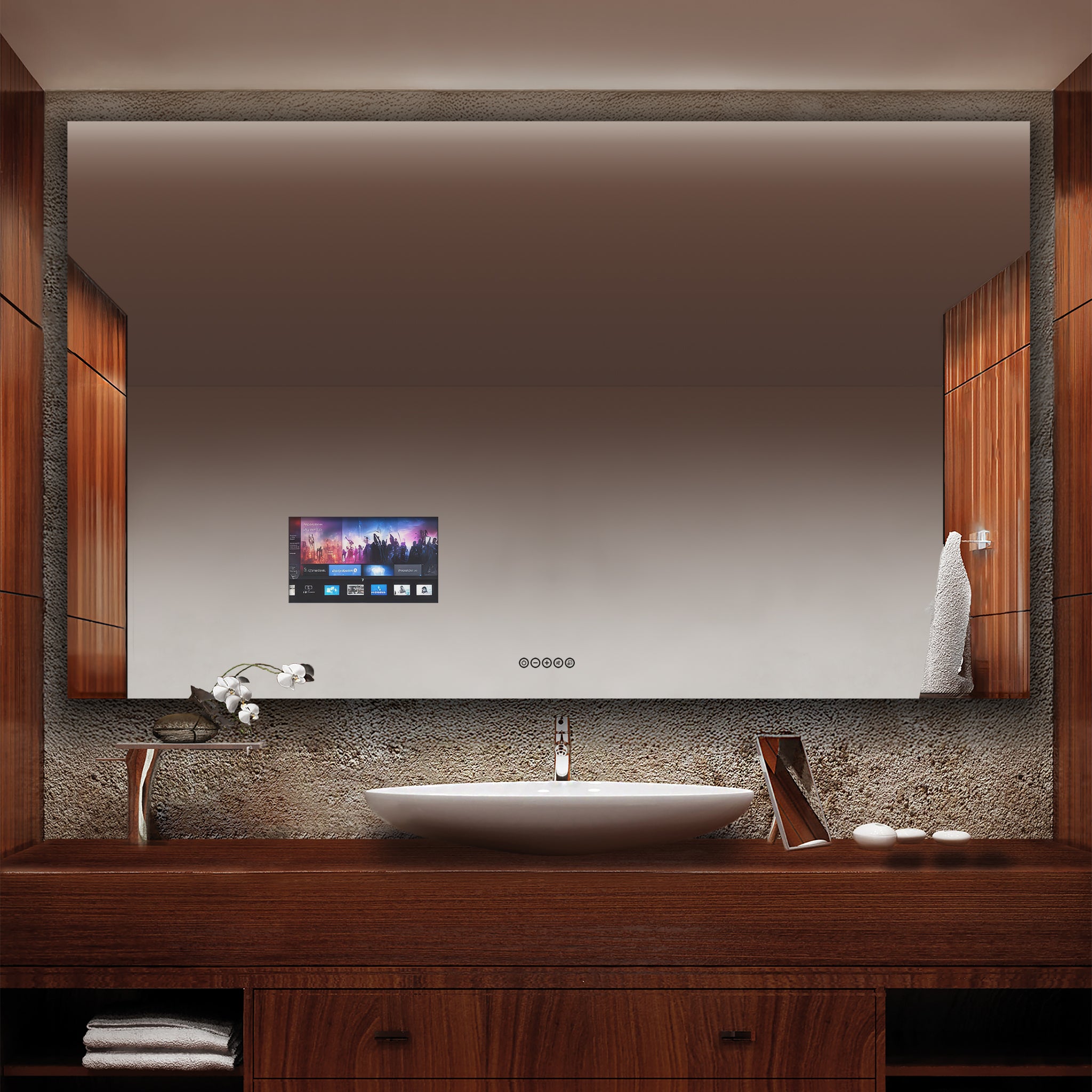

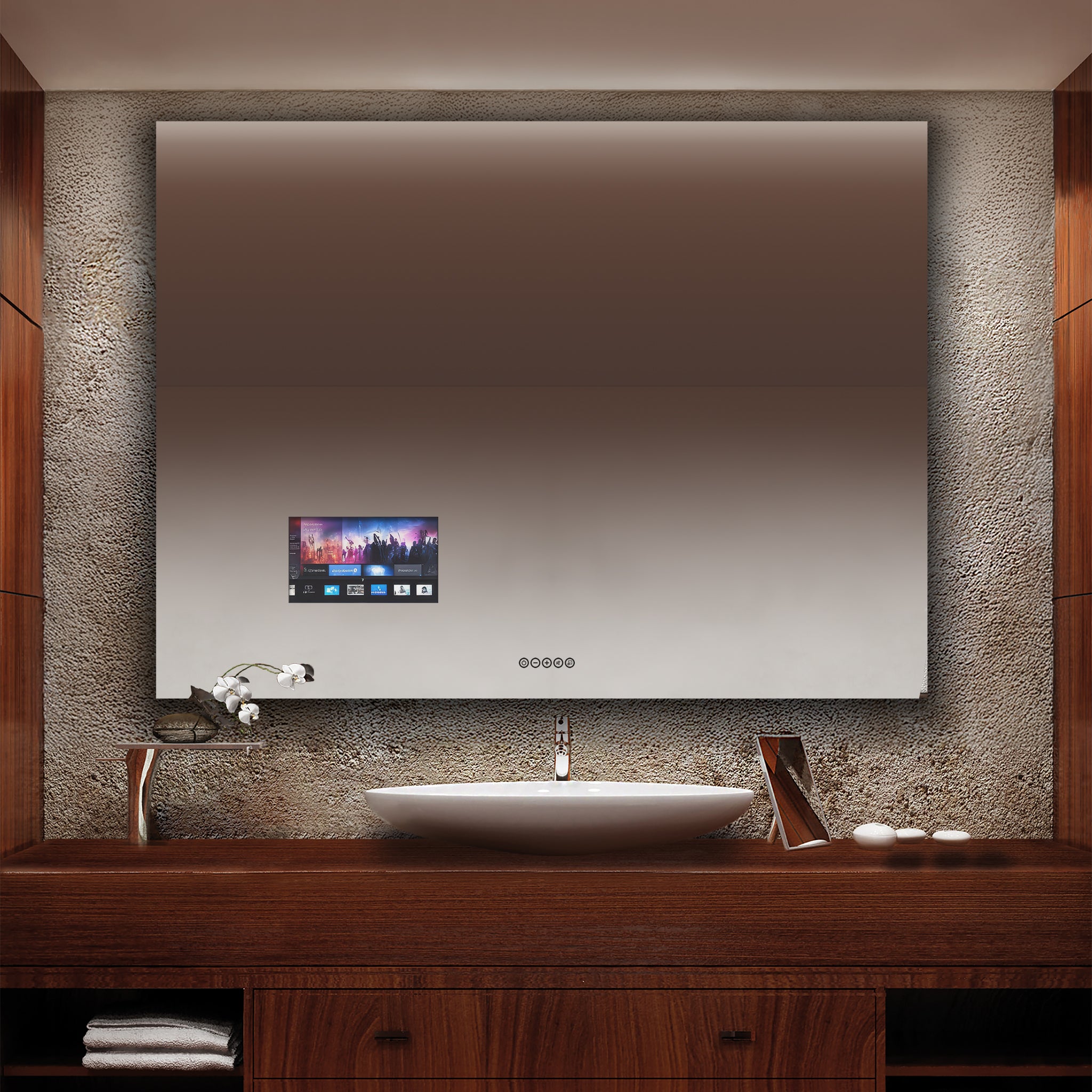

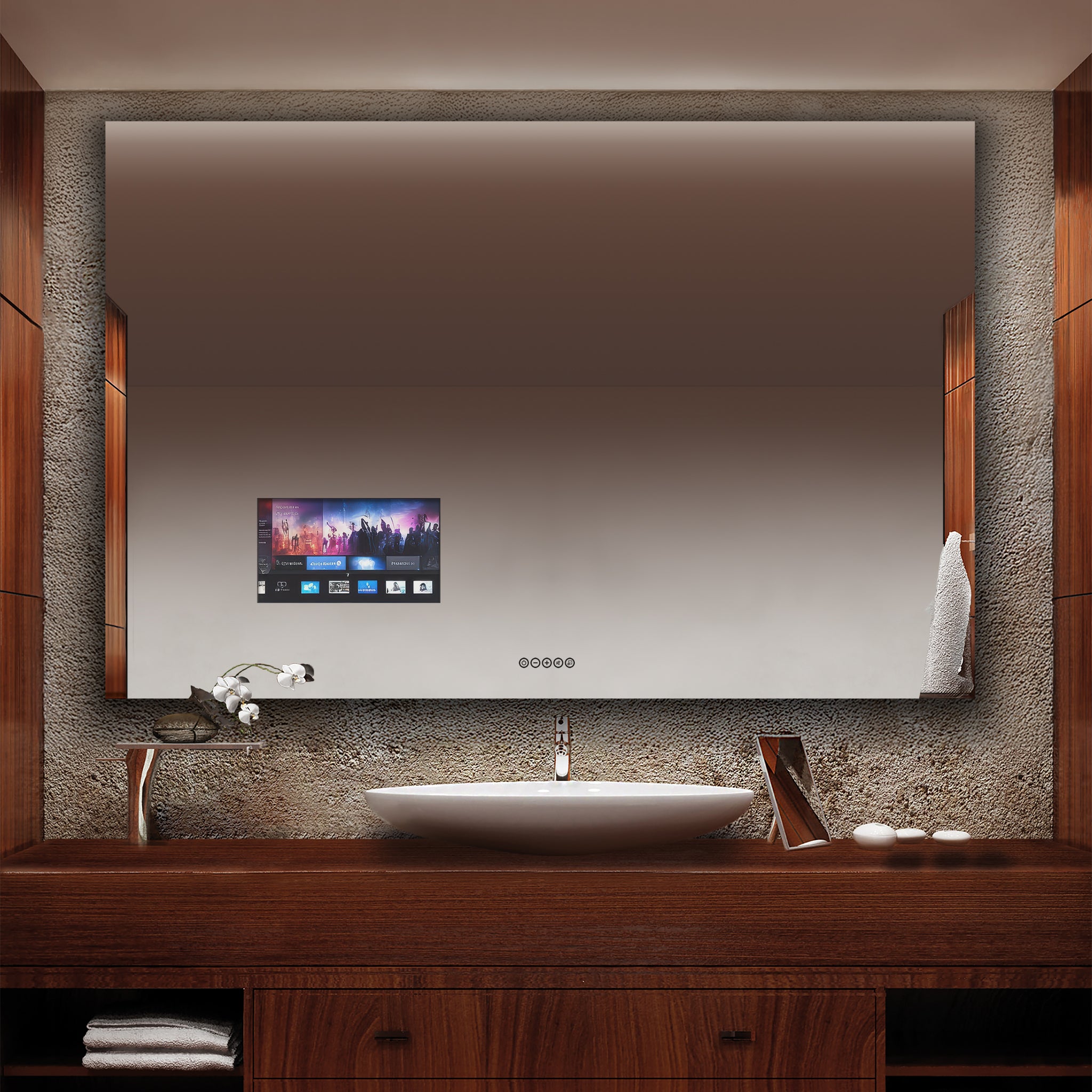

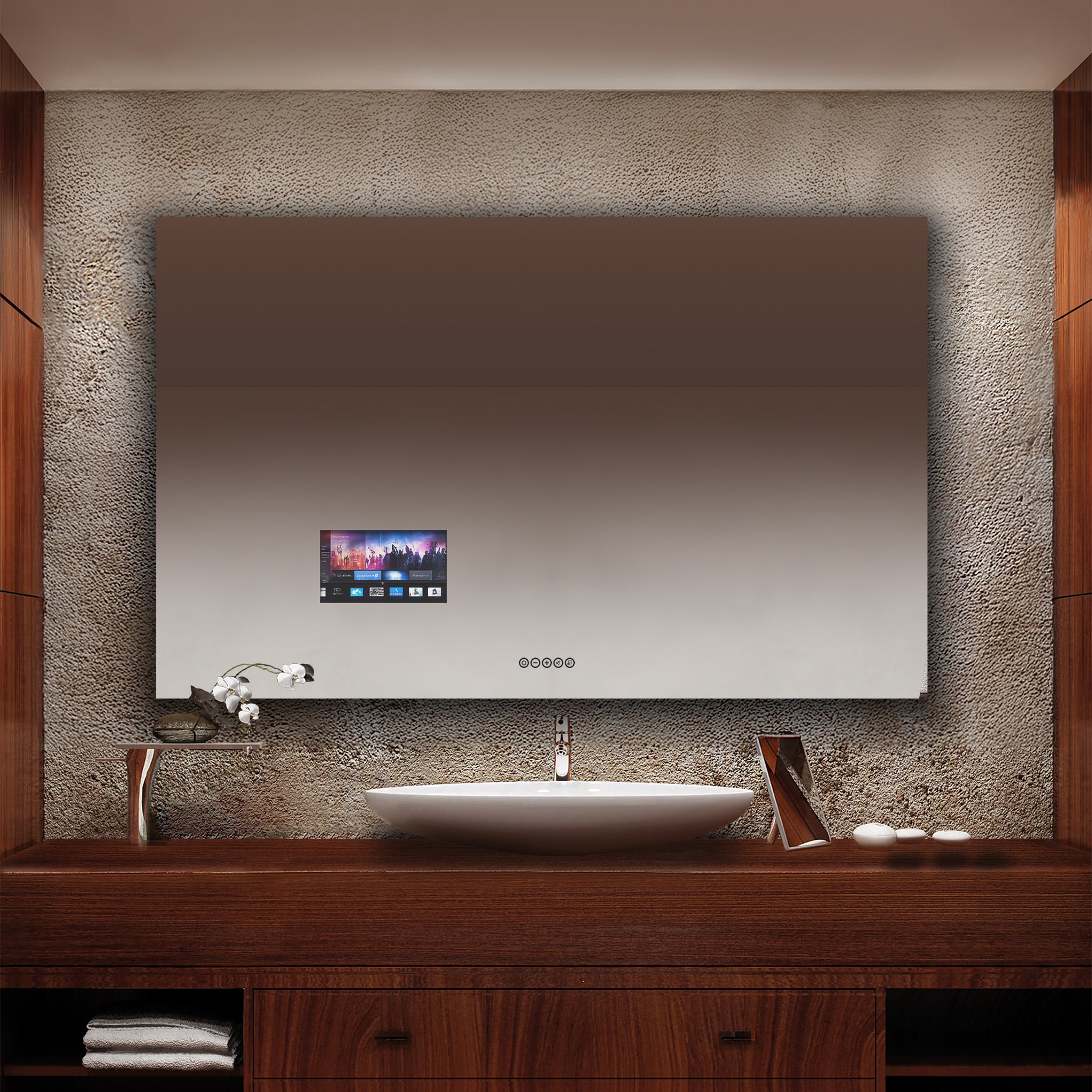

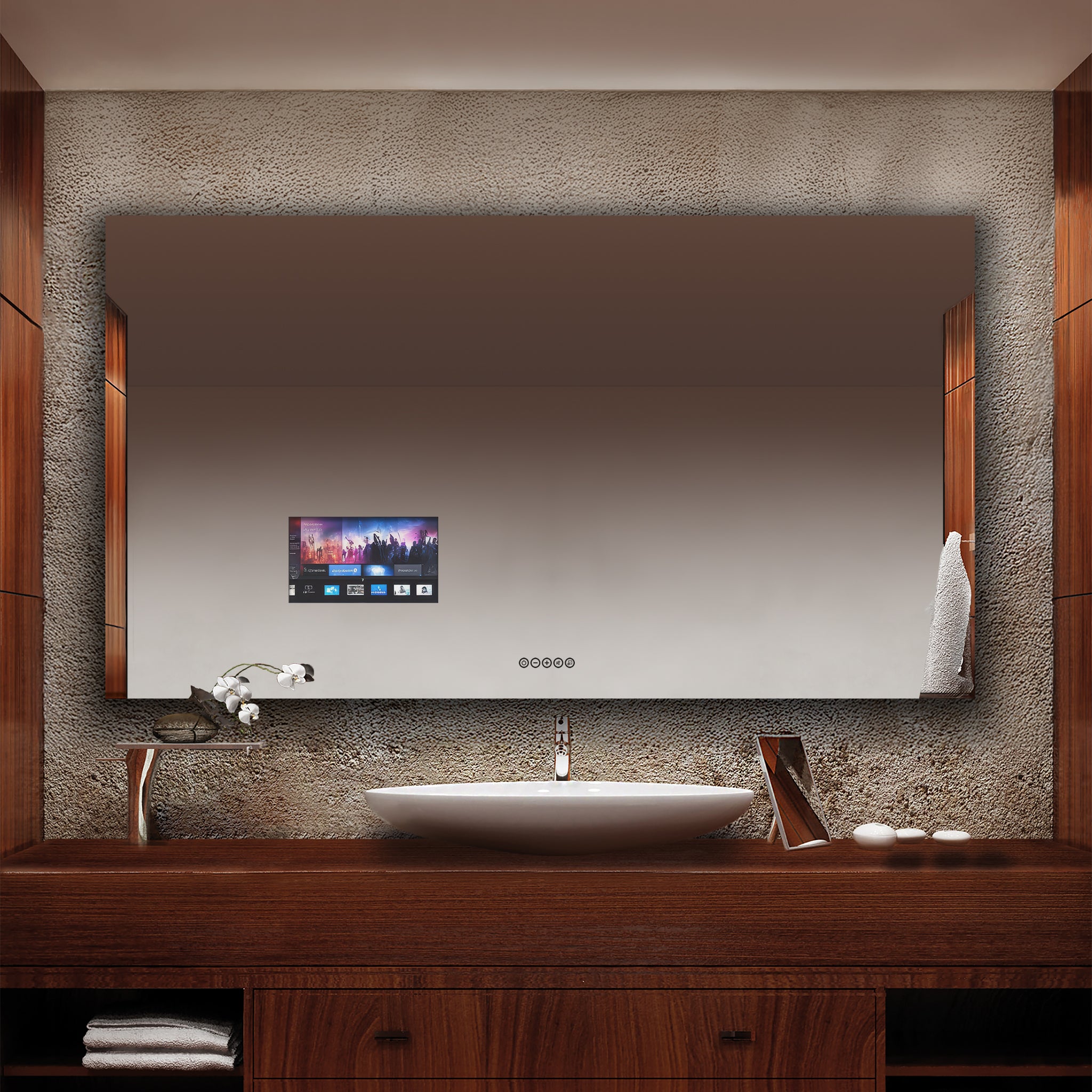

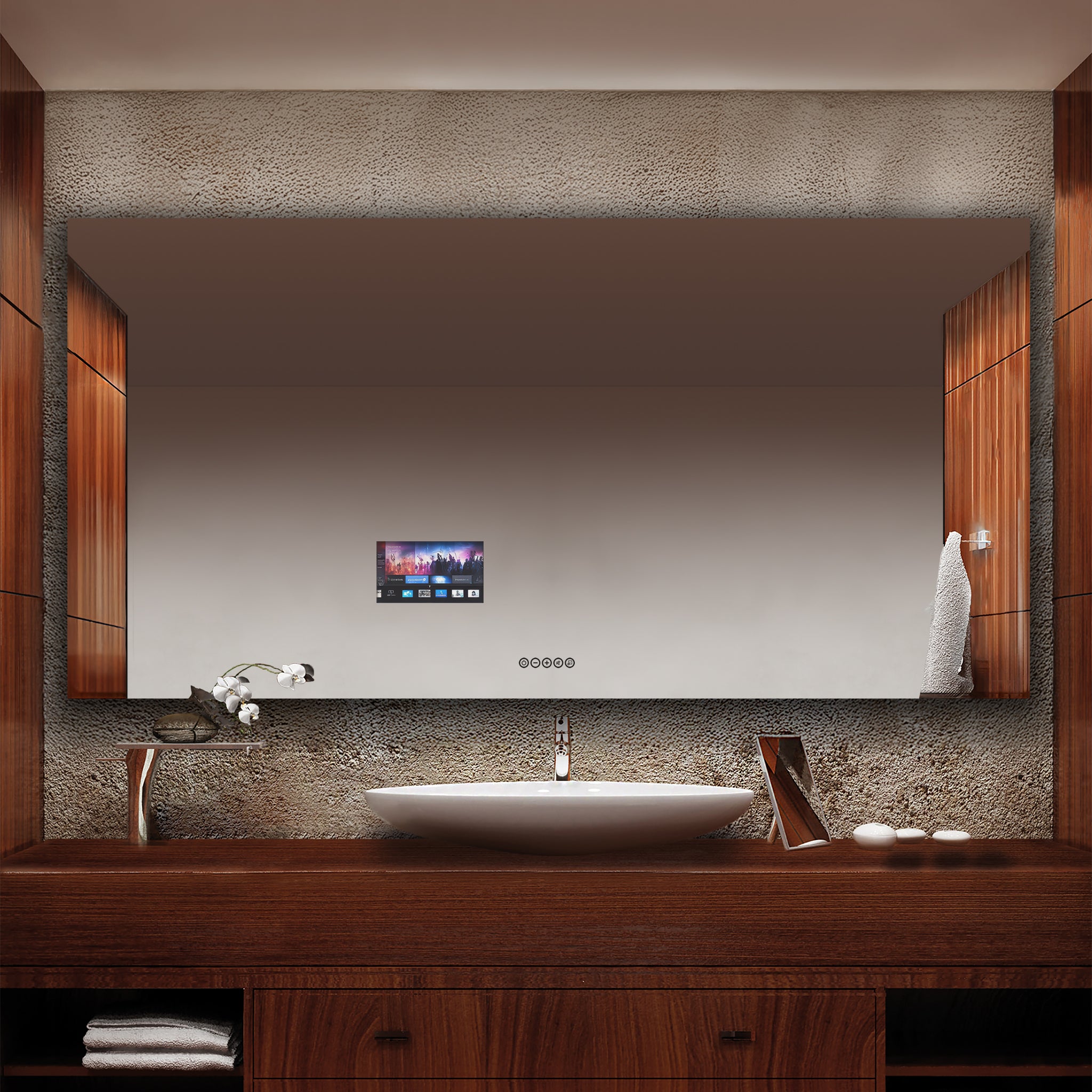

Small Screen: W 213 H 120 mm (9.6'' diagonale)
Physical Resolution: 1920 x 1080
Screen Size: 43.0'' (1067 mm)
Full Screen: W 941 H 529 mm (43.0'' diagonale)
Small Screen: W 279 H 157 mm (12.6'' diagonale)
Physical Resolution: 3840 x 2160
Screen Size: 49.0'' (1245 mm)
Full Screen: W 1074 H 604 mm (49.0'' diagonale)
Small Screen: W 325 H 183 mm (14.7'' diagonale)
Physical Resolution: 3840 x 2160
Screen Size: 55.0'' (1397 mm)
Full Screen: W 1209 H 680 mm (55.0'' diagonale)
Small Screen: W 365 H 205 mm (16.5'' diagonale)
Physical Resolution: 3840 x 2160
Picture Format: 16:9
Viewing Angle: Horizontal: Typical (Total) 178° Vertical: Typical (Total) 178°
Brightness: max. 900cd/m²
Connectivity
Video Inputs
Component: 3x RCA terminal, green (Y), blue (Pb), red (Pr)
Supported resolutions: 720p, 1080i, 1080p
HDMI 2.0: 3x HDMI terminal
Supported resolutions: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, UHD
Audio Inputs
Line Audio Input: 2x RCA terminal, white (L), red (R)
Other Inputs
USB: 1x USB terminal
RS 232: 1x D-SUB 9 pin male terminal
IR Input (Infrared): 1x Mini Jack 3.5 mm
DC Input: 1x DC Power Jack 2.1 mm
Audio Outputs
Speaker Output: 1x Phoenix Clip 4pin 2x 8W RMS @ 8 Ohms per channel
Line Audio Output: 1x Mini Jack 3.5 mm
Other Outputs
IR Output (Cable): 1x Mini Jack 3.5 mm
IR Output (LED): 1x Mini Jack 2.5 mm
DC Output 5V/12V: 1x Mini Jack 3.5 mm / max. 2.0A only one active voltage
USB Media Player
Audio: MP3, AAC, M4A, MP2
Picture: JPEG
Video: MPEG-4, H.264, AVI, MP4, MOV, DIVX
Document: DOC, PPT
OSD Languages
Deutsch, English, Español, Français, Italiano, Português, Chinese
Sound
Type: Invisible surface speaker, Stereo
Rated power: each 50W
Impedance: 8 Ohm
Sensitivity: 85 dB
Frequency Response: 60 - 20000 Hz
FAQs
Please read our FAQs page to find out more.
How do I clean the product?
To avoid damages please ensure the observance of the following instructions:
• Use mild, fast-drying household spray glass cleaning solutions with ammonia and water. Ammonia concentration not to exceed 1.5% of weight.
• Use a lint-free paper cloth that is non abrasive or a soft cotton cloth without seams, buttons, plastic or metal parts.
• Pre-moisten glass surface with water or cleaning solution to loosen dried dirt and debris before attempting to wipe it away - never scrape with a metal blade or tool
• Never use abrasive household detergents as cleaning agents.
• Never attempt to remove debris /dirt from the glass by using a scraper or razor blade.
• Never trap abrasive particles between the cloth and the glass surface while wiping away the cleaning solution.
Is it easy to install the product?
For ad notam it is very important that our products can be installed easily and safely. For this reason, in contrast to other industry providers, we always supply a mounting template for surface-mounted installations. This ensures that all wall brackets are in the correct position and the installation is completed within a short time.
Does the product come with integrated loudspeakers?
Yes, the product is equipped with invisible surface loudspeakers.

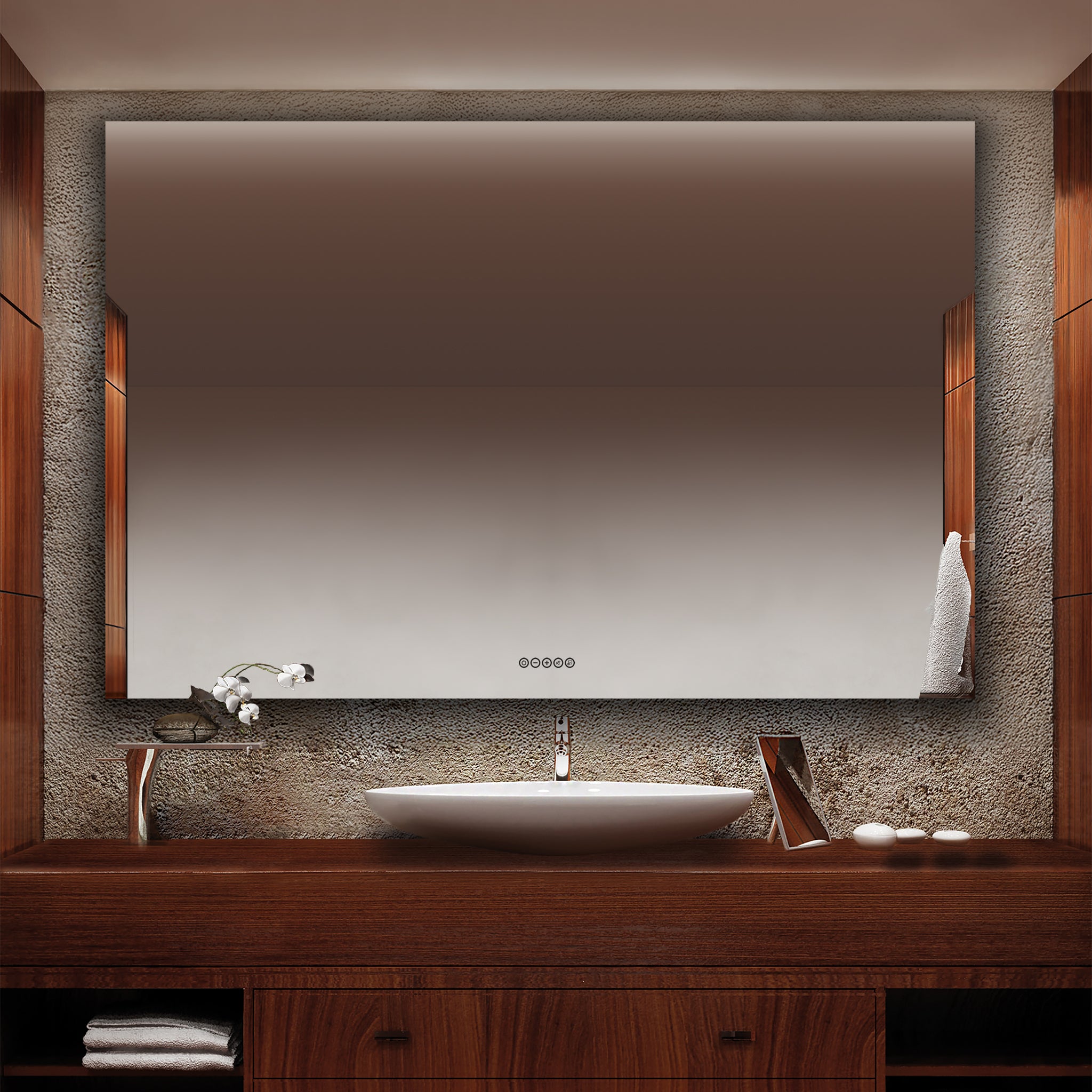

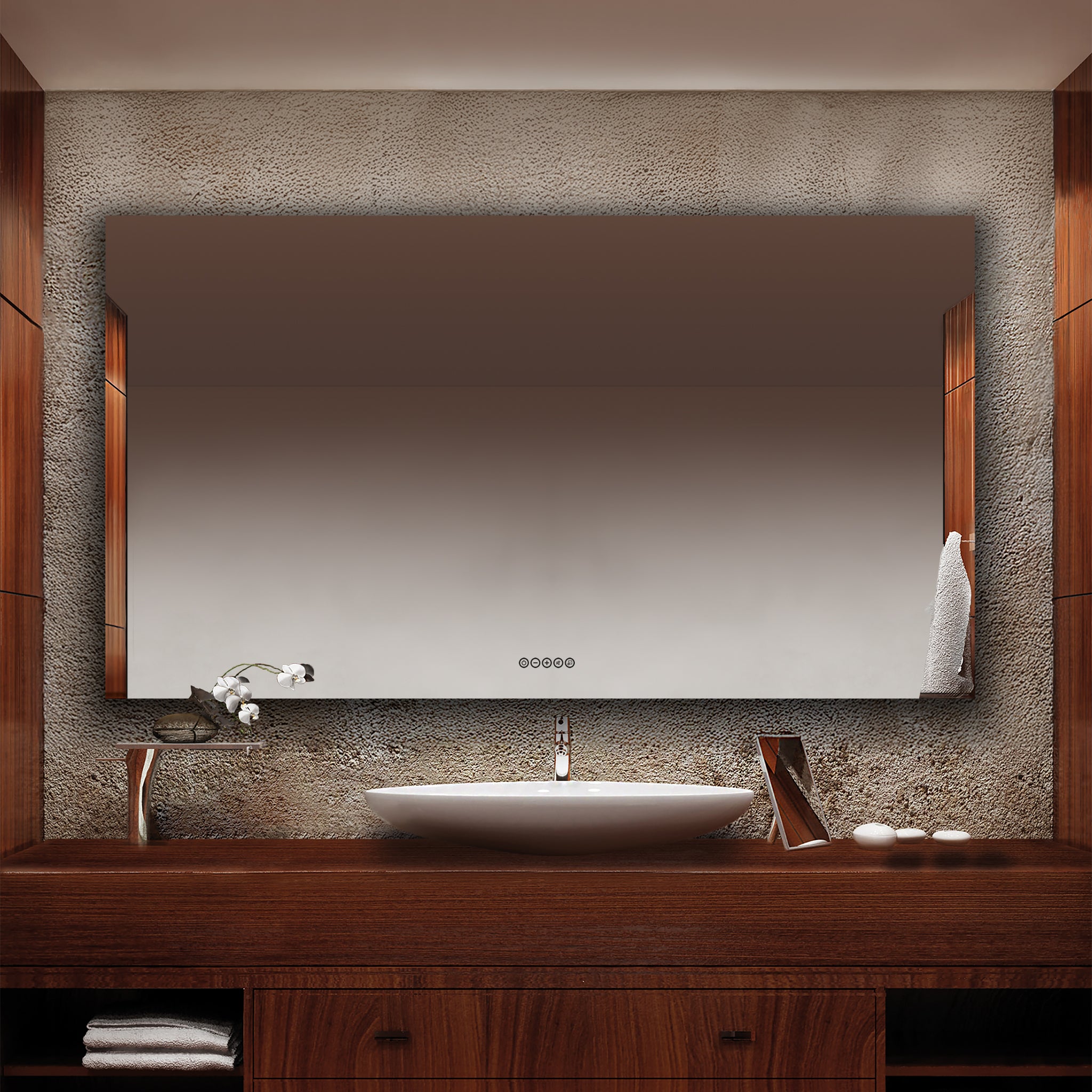

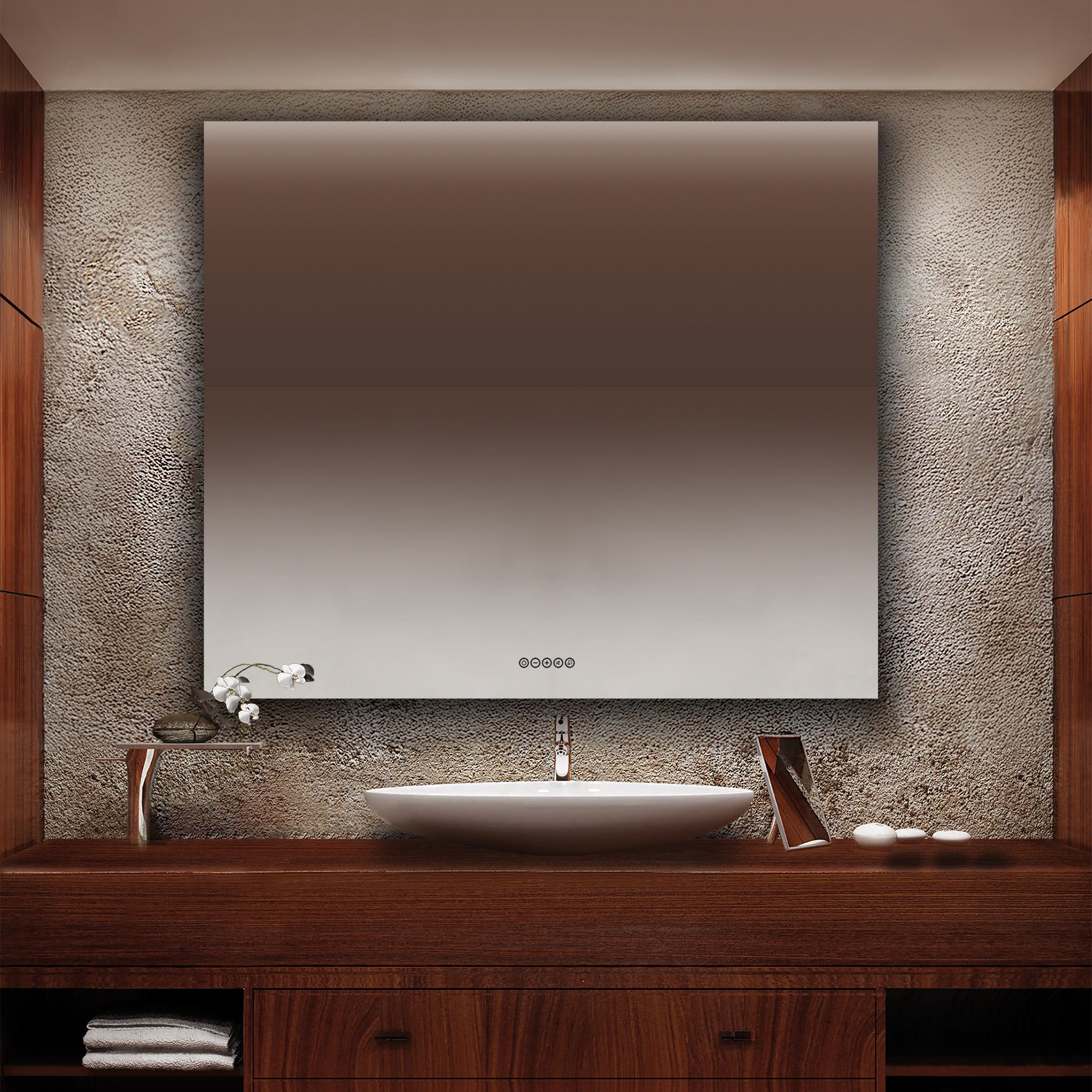

Is the TV screen completely invisible when switched off?
Yes, our mirror delivers the highest standard of picture quality when turned on, while when turned off, the screen area completely disappears, leaving your mirror as an elegant fixture in your environment.
Doesn`t the humidity in bathrooms affect the product?
No, the product can be safely installed in bathrooms zone 3 (IPX2 rating). If you wish to install our products outside of zone 3, you have to contact us for guidance upfront.
